Chest phantom for standardization studies in low dose lung cancer CT screening / Anthropomorphic structure provides life-like images allowing operators visual evaluation
This Phantom is a CT phantom developed to facilitate optimizing the radiation dose and other scanning conditions for lung cancer screening CT examination with Helical CT or MDCT, which is aiming at early detection of lung cancers.
As the screening is usually done on healthy people, the necessity of minimizing the exposure while maximizing the image quality is considered to be particularly high.
The phantom is designed to set conditions for detection of small early lung cancers such as GGA, which are dif ficult to be found by plain X-ray.
Anthropologic structure of the phantom provides life-like images allowing operators visual evaluation, while quantitative evaluation on radiation dose and density curve of the image can be done stimulatory with a single scan.

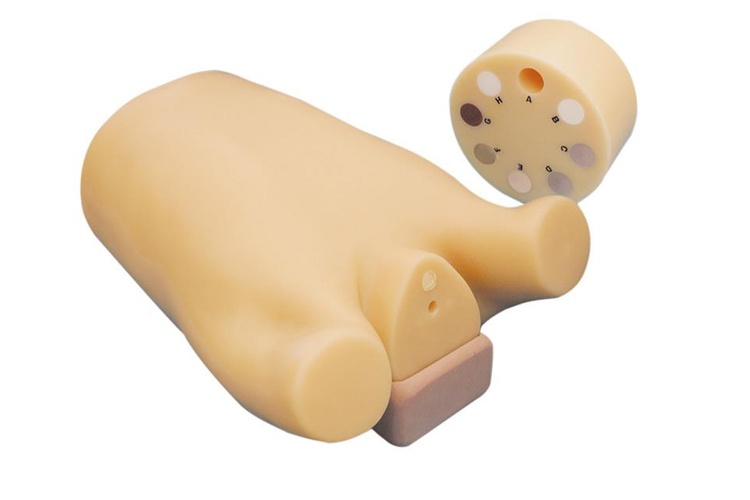

The model consists of a life size torso with arm up position and has the following internal structures:
- Bones
- Simulated tumors on sections of three lung area:
- Apical portion of the lungs
- Bifurcation of the trachea
- Base of lungs
- Dose meter hole (13 mm dia., on the central axis of the phantom)
- 8-step linearity phantom
- 8 steps of 30mm diameter density samples are embedded
|
|
