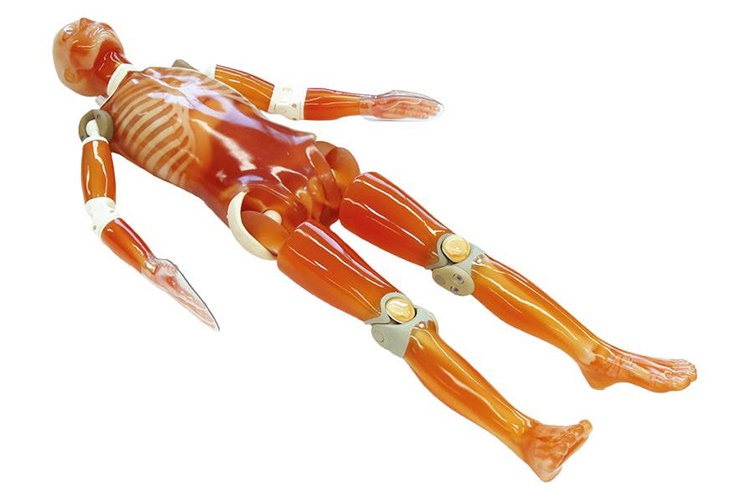

Combine theory with practice with pathological findings in this hands-on training phantom.

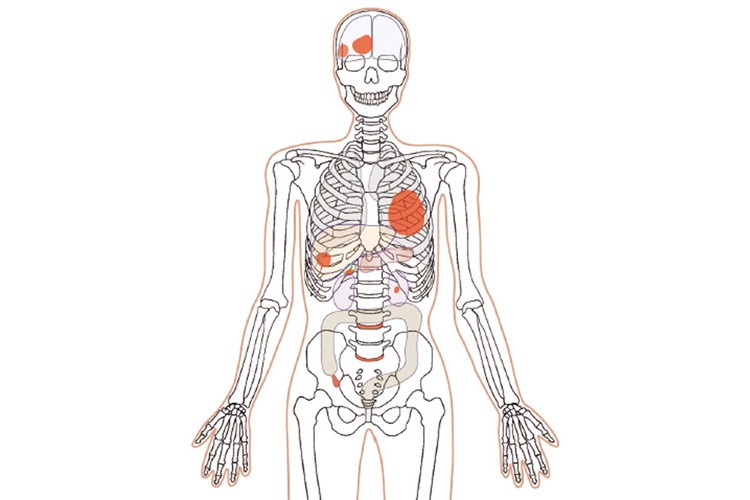

Based on the CT Whole Body Phantom this phantom offers a variation of pathologies:
- Brain tumor
- Subarachnoid hemorrhage
- Pulmonary tumor
- Hepatic tumor
- Pancreatitis
- Gall stone
- Kidney stone
- Appendicitis
- Spondylolisthesis
The phantom can be separated into 10 parts.
|
|
Combine theory with practice with pathological findings in this hands-on training phantom.
Based on the CT Whole Body Phantom this phantom offers a variation of pathologies:
- Brain tumor
- Subarachnoid hemorrhage
- Pulmonary tumor
- Hepatic tumor
- Pancreatitis
- Gall stone
- Kidney stone
- Appendicitis
- Spondylolisthesis
The phantom can be separated into 10 parts.
|
|
The whole body phantom is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in soft tissue substitute. Movable joints allow basic positioning for plain X-ray and training/research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk). There are no metal parts or liquid structures.
Patient positioning
- Right shoulder rotates sideways, abducting to a horizontal position.
- Left shoulder rotates forward, up to a horizontal position.
- Elbows bend inward to approx. 90 degrees.
- Hip joints rotate forward up to 90 degrees, then rotate outward up to 45 degrees, respectively.
- Knees bend to approx. 90 degrees.
- The phantom can be held in the supine frog leg position.
- The limbs and head are detachable at joints and neck for wider applications.
- The head supporter facilitates various head positions.
Anatomy
- Life size synthetic skeleton
- Hands and feet with bone trabeculae
- Lungs with pulmonary vessels
- Mediastinal space
- Liver
- Kidneys
Phantom materials
- Radiology absorption and Houns eld number approximate to human body.
Phantom size: approx. 165 cm height
Phantom weight: approx. 50 kg
|
|

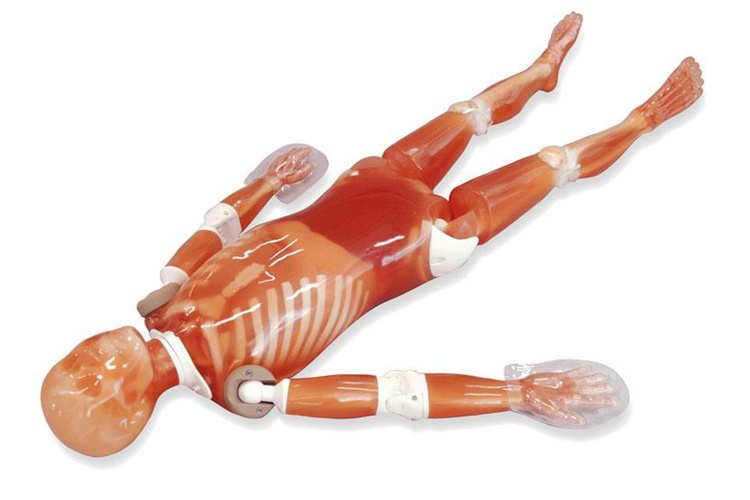

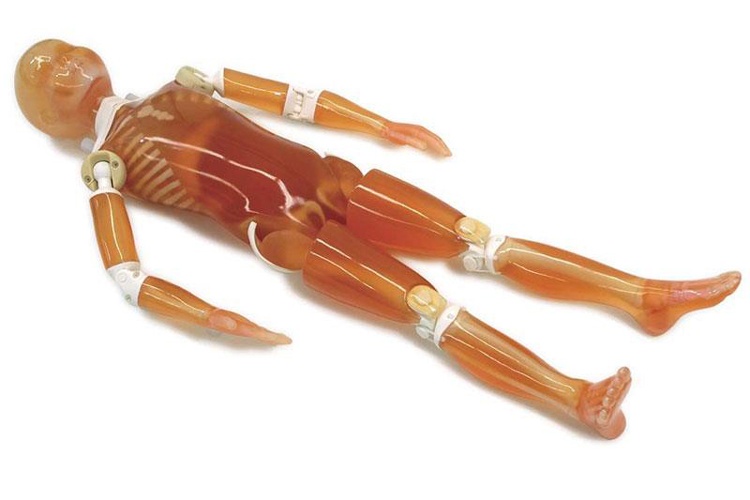

The new pediatric whole body phantom is modeled after a 4-year-old child of 105 cm height. This phantom is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in soft tissue substitute.
Training skills
- Plain X-ray photography and basic CT scanning.
- Basic patient positioning for X-ray and CT.
Features
- Movable joints allow basic positioning for plain X-ray.
- Training and research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk).
- The phantom has no metal parts or liquid structures.
- Main joints have life-like articulation, allowing various positioning for training.
- Life size synthetic skeleton
- Hands and feet with bone trabeculae
- Lungs with pulmonary vessels
- Mediastinal space
- Liver
- Kidneys
Separates into
- Head
- Trunk
- Right upper arm
- Right forearm with hand
- Left upper arm
- Left forearm with hand
- Right thigh
- Right lower leg with foot
- Left thigh
- Left lower leg with foot
Size: approx. 105 cm
Weight: approx. 20 kg
|
|

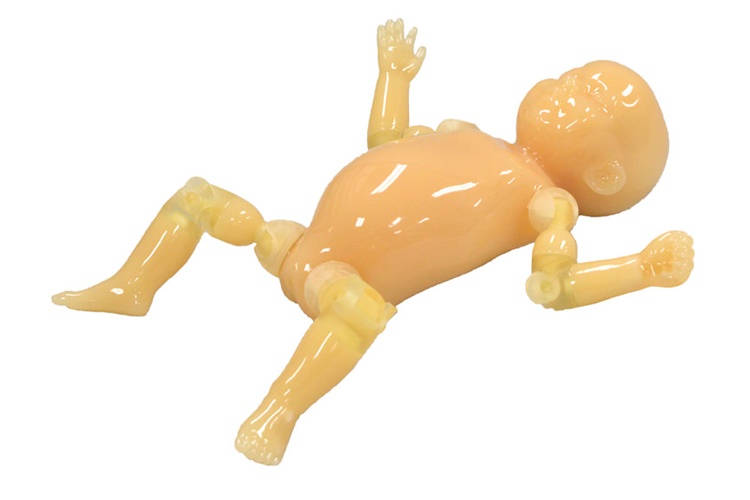

Newborn whole body phantom is the world‘s first full body phantom for neonatal radiography with correct anatomical structure and movable limbs. Neonatal radiography is an important tool in NICU (Neonatal Intensive Care Unit). Patient positioning and immobilization are essential features. This phantom provides opportunities for hands-on training and experiments to minimize radiation exposure to newborn babies.
Features
- Limbs rotate 360 degrees at shoulders and hip joints.
- Left hand is clenched and right hand is open.
- Life size whole body newborn baby.
- Original human tissue substitute.
- No metal parts or liquid structures.
- Meconium aspiration syndrome can be made per custom order.
Anatomy
Skull, spine, ribs, pelvis, scapulae, clavicles, humeri, radius, ulnae, bones of hands, femora, bulae, tibiae and bones of feet, lungs and mediastinum
Training Skills
- Immobilization
- Manual immobilization
- Immobilization with fixtures
- Autopsy imaging
- Radiography
- Upright AP (anteroposterior)
- Supine AP
- Upright lateral
- Supine lateral
|
Specifications Set Includes: 1 newborn whole body phantom, 1 storage case, 1 set of sample X-ray images, 1 instruction manual
|

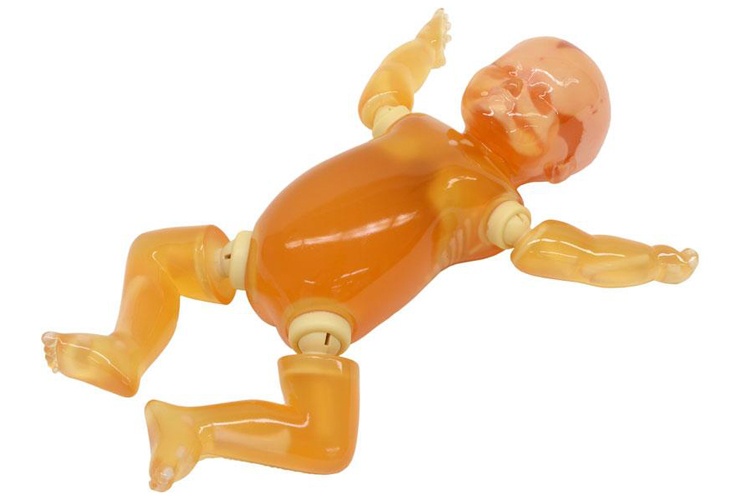

A brand new neonate for CT training has come into the world. It can be used for CT and plain X-ray, Dosimetry, Autopsy imaging and positioning.
It has the HU of an average newborn, a hole for an ion chamber, a clenched left hand an open right hand.
The limbs rotate 360°. The anatomy includes skull, spine, clavicles, scapulae, ribs, humerus, radius, ulnae, hand bones, femora, tibiae, fibulae, foot bones, pelvis, lungs,
mediastinum and colon.
Size: 53 cm.
|
|
IDEAL SUBSTITUTE FOR TEACHING & TRAINING RADIOLOGICAL TECHNOLOGISTS
- Anthropomorphic phantom disassembles into 9 parts
- Small size and low weight simplify positioning
- Unlimited repetition of most views for which patients cannot be used
- Provides valid feedback to evaluate trainee performance
- Designed to image any clinical view (AP, oblique, lateral, frog legs, etc.)
- Inclusive skin tones, from light to dark complexion, available at no additional cost
- Custom pathologies and traumas available

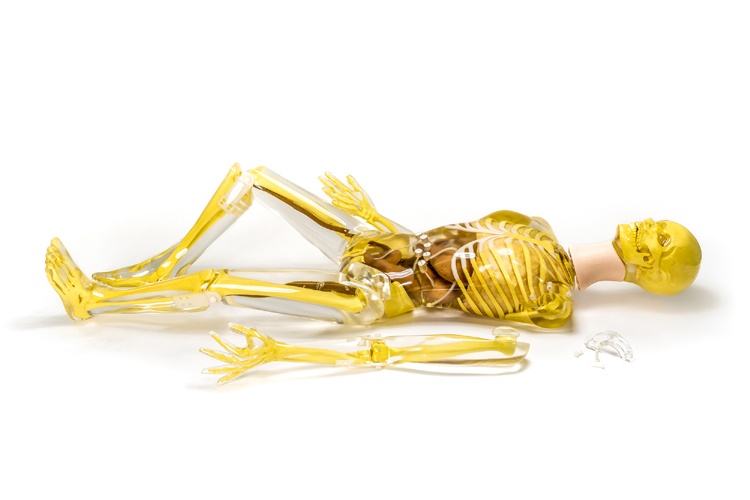

Offered in opaque or transparent, Take-Apart Pixy is an anatomically and radiologically correct female designed specifically for training radiologic technologists. At 5’ 1” (156 cm) weighing 105 lbs (48 kg), Take-Apart Pixy is a repeatable, convenient substitute for patients and virtually indestructible.
Take-Apart Pixy may be ordered with or without abdominal and pelvic organs: stomach, gall bladder, urinary bladder, kidneys, rectum, and sigmoid flexure. The organs are air-filled but accept water or contrast media that can be easily flushed after use. Custom pathologies and traumas are available at an additional cost.
Built with soft-tissue mold and skeleton molds that are matched for anatomic fidelity, Take-Apart Pixy permits unlimited exposures, demonstrates the effects of changing technical factors, and allows for the evaluation of student performance. Students have no difficulty in maneuvering Take-Apart Pixy into the most desired positions as the phantom is built to tolerate trainee errors.
Take-Apart Pixy is used to demonstrate anatomy and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, digital processing, OFD, and TFD. Made of tissue-equivalent materials and life-like articulations, Take-Apart Pixy is more realistic than a cadaveric skeleton with radiographs that are optically equivalent in density and contrast to human patients.
C1, C2, C6, and C7 were converted to mechanical nylon joints because educators in the field prefer full positioning capabilities for the head. This design permits the remaining neck vertebrae to be fixed in a normal position while assuring a full range of head motion.
The skull of Take-Apart Pixy has frontal and sphenoidal sinuses, ethmoidal and mastoid air cells, and the auditory ossicles. Bone sutures are radiographically visible.
Soft tissues are available in opaque or transparent tissue-equivalent materials. The transparent Take-Apart Pixy has visible organs and skeleton.
Take-Apart Pixy lungs are molded of tissue-equivalent foam with the mass density of inflated human lungs (0.30 g/cc). They are connected to the oro-nasal cavity by the stem bronchi and trachea. The oro-nasal pharynx is filled with a nearly air-equivalent foam.
|
|
TAKE-APART PIXY WITH LUNGS, HEART, LIVER, URETERS, LARGE INTESTINE, CIRCLE OF WILLIS, AND ESOPHAGUS
- Anthropomorphic phantom disassembles into 9 parts
- Ideal substitute for teaching and training radiological technologists
- Small size and low weight simplify positioning
- Unlimited repetition of most views for which patients cannot be used
- Provides valid feedback to evaluate trainee performance
- Inclusive skin tones, from light to dark complexion, available at no additional cost
- Designed to image any clinical view (AP, oblique, lateral, frog legs, etc.)
- Custom pathologies and traumas available
Take-Apart CT Pixy is an anatomically and radiologically correct female designed specifically for training radiologic technologists. At 5’ 1” (156 cm) weighing 105 lbs (48 kg), Take-Apart CT Pixy is a repeatable, convenient substitute for patients and virtually indestructible.
Take-Apart CT Pixy may be ordered with or without fill ports. In addition to the stomach, gall bladder, urinary bladder, kidneys, rectum, and sigmoid flexure, Take-Apart CT Pixy additionally includes lungs, heart, liver, ureters, large intestine, Circle of Willis, and esophagus. Custom pathologies and traumas are available at an additional cost.
Built with soft-tissue mold and skeleton molds that are matched for anatomic fidelity, Take-Apart CT Pixy permits unlimited exposures, demonstrates the effects of changing technical factors, and allows for the evaluation of student performance. Students have no difficulty in maneuvering Take-Part CT Pixy into the most desired positions as the phantom is built to tolerate trainee errors.
Take-Apart CT Pixy is used to demonstrate anatomy and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, digital processing, OFD, and TFD. Made of tissue-equivalent materials and life-like articulations, Take-Apart CT Pixy is more realistic than a cadaveric skeleton with radiographs that are optically equivalent in density and contrast to human patients.
C1, C2, C6, and C7 were converted to mechanical nylon joints because educators in the field prefer full positioning capabilities for the head. This design permits the remaining neck vertebrae to be fixed in a normal position while assuring a full range of head motion.
The skull of Take-Apart CT Pixy has frontal and sphenoidal sinuses, ethmoidal and mastoid air cells, and the auditory ossicles. Bone sutures are radiographically visible.
Take-Apart CT Pixy lungs are molded of tissue-equivalent foam with the mass density of inflated human lungs (0.30 g/cc). They are connected to the oro-nasal cavity by the stem bronchi and trachea. The oro-nasal pharynx is filled with a nearly air-equivalent foam.
|
|

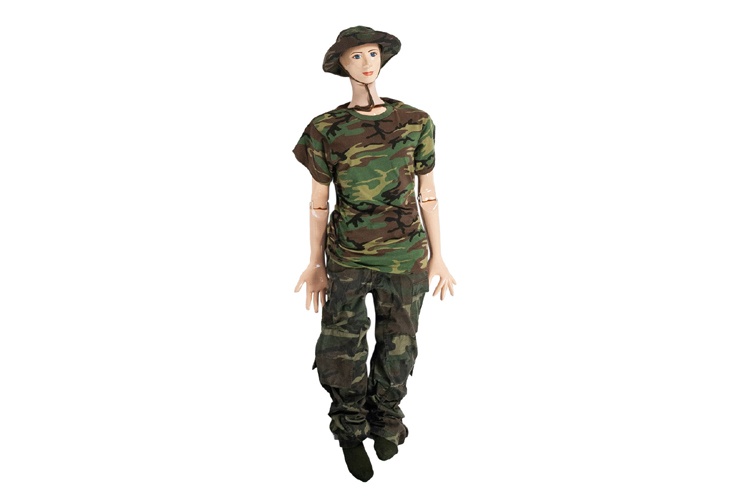

TEACHING & TRAINING PHANTOMS FOR CIVILIAN HOSPITAL EMERGENCY ROOMS
- 59 pathologies and traumas available between Willy & Debbie
- Unlimited repetition of views without human exposure
- Radiographs that permit evaluation of trainee performance
These phantoms yield radiographs resembling those of a human body with human technical factors and limited artifacts, articulated to enable basic views to be presented, and with an appropriate level of human anatomy. They are well-balanced patient substitutes for basic training of radiologic technologists, particularly in military or emergency room environments.
Both Willy & Debbie demonstrate and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, OFD and TFD. Their radiographs are optically equivalent to humans in density and contrast.
Product Differences
Aside from gender differences, the most obvious difference between Willy & Debbie is in the complement of traumas and pathologies assigned to each. Debbie is fitted with a wig, while Willy is bald. They are dressed in camos for military training and in jumpsuits for civilian training.
Realism of Traumas and Pathologies
“There is no single, unique description of any of their traumas and pathologies. Rather, there are limitless variations among a broad range of casualties. The most meaningful judgments of the realism of trauma and pathologies are those based on long radiographic experience across the spectrum of casualties.”
— Patrick Hale, Senior Radiologic Technologist at the UCLA Emergency Room and an RSD consultant, made those judgments with respect to Willy and Debbie.
Dimensions
At 5’ 1” (156 cm) tall, weighing 105 lbs (48 kg), Willy & Debbie match the size and weight of RSD’s Take-Apart Pixy. Technologists must learn to work with patients of all sizes and weights, so a smaller adult-size phantom is as valid for training as a larger phantom, and position is facilitated.
Lungs
Lungs are molded of durable materials with radiodensities matched to humans in a median respiratory state. Animal lungs matching the human in size and blood vessels are available, but they are oriented towards research rather than training.
Soft Tissues
Willy & Debbie have solid “soft tissues” that are hard and rigid. They cannot be palpated to locate traumas. However, radiological technologists are generally informed by the physician as to the views to be taken. The manual provides this information to instructors.
Skeletons
RSD-manufactured skeletons are used rather than natural human skeletons. The latter are generally unavailable and usually consist of an assortment of bones ranging from children to adults of ages, for which osteoporosis becomes a factor.
RSD skeletons are not to be confused with plastic skeletons for teaching anatomy. RSD skeletons are made to fit the soft-tissue molds precisely. They have spongiosa moldings within marrow cavities and outer, cortical bone. Both constituents meet the internationally accepted standards for radiodensity and specific gravity.
Neck
While anatomic fidelity and the ability to move the head into a broad range of views is required in radiography, no mechanism can be designed for intervertebral motion without artifacts obliterating the radiographs. This problem has been solved by the use of two necks. One is a multi-articulated polycarbonate assembly which provides for nearly all commonly used views. There is no attempt at radiographic realism in this neck. An alternate, fully realistic neck is interchangeable with the mechanical neck. The cervical spine of this neck contains traumas.
|
Pathologies & Traumas (-01 to -59)
|
ANTHROPOMORPHIC TRAINING & TEACHING PHANTOM WITH 16 PATHOLOGIES AND TRAUMAS
- Phantom disassembles into 9 parts
- Ideal substitute for teaching and training radiological technologists
- Small size and low weight simplify positioning
- Unlimited repetition of most views for which patients cannot be used
- Provides valid feedback to evaluate trainee performance
- Designed to image any clinical view (AP, oblique, lateral, frog legs, etc.)

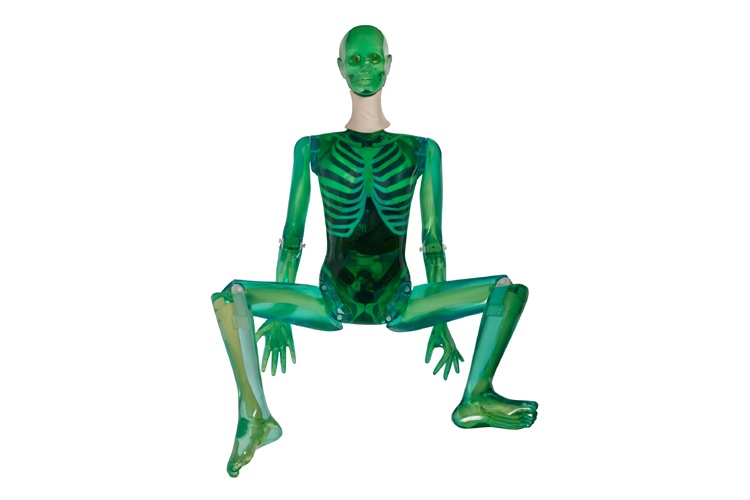

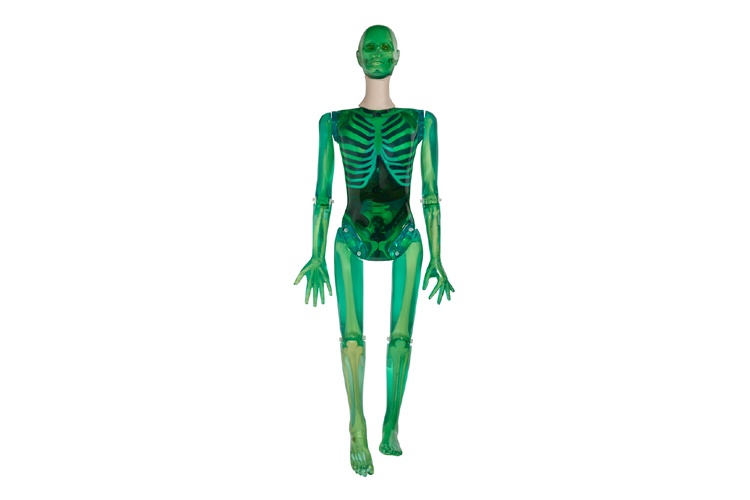

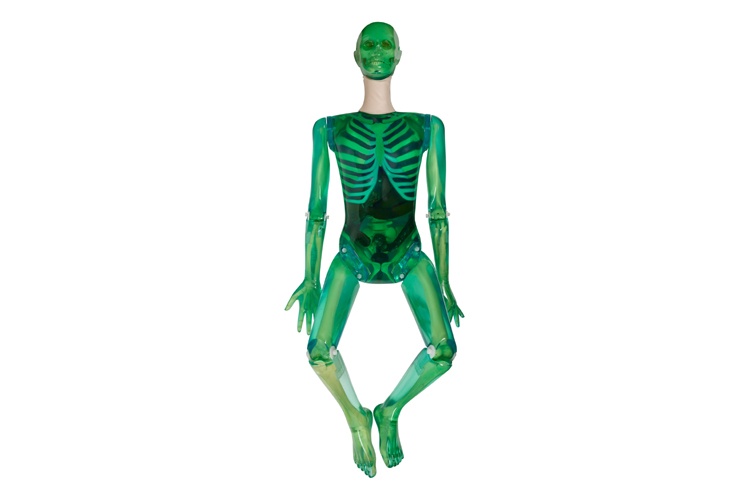

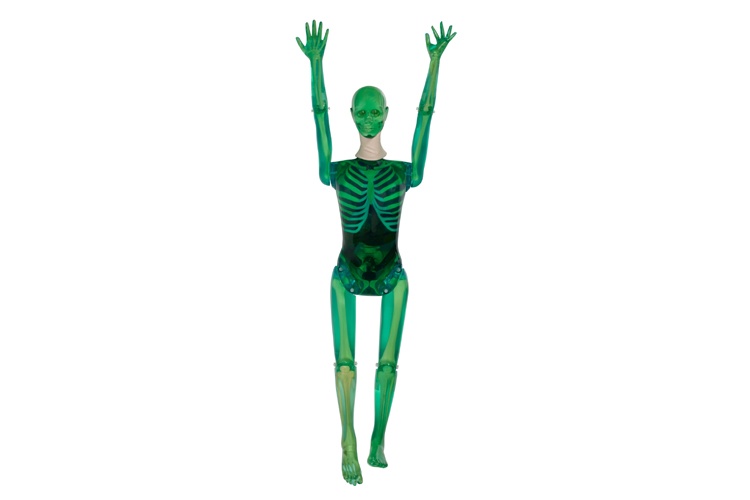

Designed with the expert assistance of Judy McNitt-Mell, RSD’s Domestic Violence Take-Apart Pixy is an anatomically and radiologically correct female designed specifically for training radiologic technologists. At 5’ 1” (156 cm) weighing 105 lbs (48 kg), Domestic Violence Take-Apart Pixy is a repeatable, convenient substitute for patients and virtually indestructible.
Domestic Violence Take-Apart Pixy is tinted green with visible skeleton and organs, including the stomach, gall bladder, urinary bladder, kidneys, rectum, and sigmoid flexure. The organs are air-filled but accept water or contrast media that can be easily flushed after use. Custom fractures and pathologies are available at an additional cost.
Built with soft-tissue mold and skeleton molds that are matched for anatomic fidelity, Domestic Violence Take-Apart Pixy permits unlimited exposures, demonstrates the effects of changing technical factors, and allows for the evaluation of student performance. Students have no difficulty in maneuvering Domestic Violence Take-Apart Pixy into most desired positions as the phantom is built to tolerate trainee errors.
Domestic Violence Take-Apart Pixy is used to demonstrate anatomy and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, digital processing, OFD, and TFD. Made of tissue-equivalent materials and life-like articulations, Domestic Violence Take-Apart Pixy is more realistic than a cadaveric skeleton with radiographs that are optically equivalent in density and contrast to human patients.
C1, C2, C6, and C7 were converted to mechanical nylon joints because educators in the field prefer full positioning capabilities for the head. This design permits the remaining neck vertebrae to be fixed in a normal position while assuring a full range of head motion.
The skull of Domestic Violence Take-Apart Pixy has frontal and sphenoidal sinuses, ethmoidal and mastoid air cells, and the auditory ossicles. Bone sutures are radiographically visible.
Domestic Violence Take-Apart Pixy lungs are molded of tissue-equivalent foam with the mass density of inflated human lungs (0.30 g/cc). They are connected to the oro-nasal cavity by the stem bronchi and trachea. The oro-nasal pharynx is filled with a nearly air-equivalent foam.
|
Pathologies & Traumas
|
