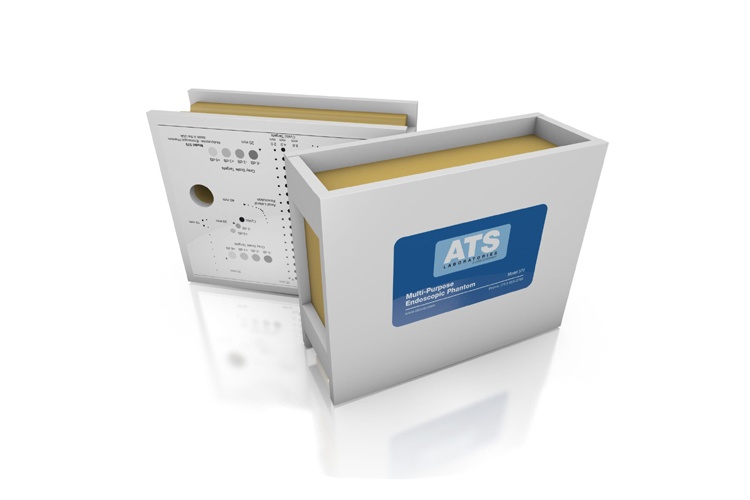

Multi-Purpose & Endoscopic Phantom

ats_570-750x500
  Evaluate Full Range of Clinical Imaging Frequencies The Model ATS 570 Multi-Purpose & Endoscopic Phantom is an easy, comprehensive means of evaluating imaging systems over the full range of clinical imaging frequencies (2 MHz to 18 MHz). The phantom is designed with a combination of monofil ...Read more



  • Description
  • Specifications



Evaluate Full Range of Clinical Imaging Frequencies

The Model ATS 570 Multi-Purpose & Endoscopic Phantom is an easy, comprehensive means of evaluating imaging systems over the full range of clinical imaging frequencies (2 MHz to 18 MHz).

The phantom is designed with a combination of monofilament line targets for distance measurements and tissue mimicking target structures of varying sizes and contrasts. Due to the acoustic similarity of the background material and the target structures, artifacts caused by distortion, shadowing and enhancement have been eliminated. Four gray scale targets ranging in contrast from +6 to -3 dB are provided to evaluate the system’s displayed dynamic range and gray scale processing performance.

The Model 570 offers a new and improved scan surface design to easily accommodate linear, sector, endoscopic probes and mechanical sector probes such as those used for rectal scanning.



Performance measures:

  • Uniformity
  • Depth of Penetration
  • Beam Profile/ Focal Zone/ Lateral Response Width
  • Vertical Measurement Calibration
  • Horizontal Measurement Calibration Linear
  • Axial and Lateral Resolution
  • Horizontal Measurement Calibration Sector
  • Contrast Targets (Cysts)
  • Grayscale Contrast Sensitivity
  • Dead Zone Assessment





Dimensions 27 cm x 21.5 x 9.6 cm
Weight 4.5 kg
Housing Material PVC
Scan Surfaces 2
Scan Wells 1 cm
Tissue-Mimicking Material Urethane Rubber
Urethane Properties Freezing Point: -40° C
Melting Point: Above 100° C
Speed of Sound: 1450 m/s at 23°
Attenuation: 0.5 dB/cm/MHz (measured at 3.5 MHz)
Line Targets Material: Monofilament nylon
Diameter: 0.12 mm
Endocavity Opening: Ø 26.9mm x 71mm deep Slots: 12.7 mm; Ø 0.5” x 10 mm deep (from bottom of the curve to the flat surface)

Model ATS 570 Includes
1x Multi-Purpose & Endoscopic Phantom
1x User Guide
1x Certificate of Compliance



Vertical Distance Group (B1: 17 targets; B2: 8 targets)

  • Depth range: B1: 10 - 160 mm
  • Depth range: B2: 10 - 80 mm
  • Spacing: B1 & B2: 10 mm



Horizontal Distance Group (2 groups & 10 targets)

  • Depths: 5 cm
  • Spacing: 2 cm



Dead Zone Group (9 targets)

  • Depth range: 20 - 10 mm
  • Spacing: 1 mm



Axial and Lateral Resolution Groups (11 targets)

  • Lateral displacement: 1 mm
  • Spacing: 5, 4, 3, 2, 1 mm
  • Depth: 7, 11, 4, 16 cm



Contrast Targets (Cysts)

  • Type: Non-echogenic, cylindrical
  • Column 1: 8 mm targets, Qty 8; spaced at 2 cm intervals
    Column 2: 4 mm targets, Qty 17; spaced at 1 cm intervals
    Column 3: 2 mm targets, Qty 17; spaced at 1 cm intervals



Grayscale Targets (3 sets)

Type: Echogenic, cylindrical

  • Set 1 (4 targets)
    • Contrast Levels: +6, +3, -3, -6 dB
    • Diameter: 10 mm
    • Depth from top of scan surface: 30 mm
  • Set 2 (4 targets)
    • Contrast Levels: +6, +3, -3, -6 dB
    • Diameter: 10 mm
    • Depth from bottom of scan surface: 20 mm
  • Set 3 (2 targets)
    • Contrast Levels: +3, -3 dB
    • Diameter: 6 mm
    • Distance from Endocavity opening: 30 mm
