Pro-NDT ASTM Step

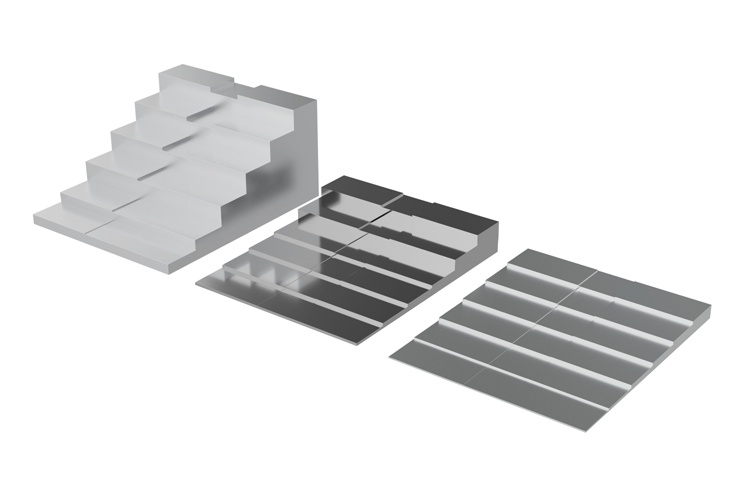

pro-ndt_astm_step_750x500
  Step-Wedge Image Quality Indicators according to ASTM E2597-07 Standard Practice for Manufacturing Characterization of Digital Detector Arrays. The set consists of three step wedges made from Aluminium-6061, Titanium-Ti-6Al-4V and  Inconel 718.   Technical data: Dimensions: Aluminium-6061 ...Read more



  • Description
  • Specifications



Step-Wedge Image Quality Indicators according to ASTM E2597-07 Standard Practice for Manufacturing Characterization of Digital Detector Arrays. The set consists of three step wedges made from Aluminium-6061, Titanium-Ti-6Al-4V and  Inconel 718.



Technical data:

  • Dimensions:
    • Aluminium-6061 - 210 x 175 x 100 mm
    • Titanium Ti-6Al-4V - 210 x 175 x 30 mm
    • Inconel 718 - 210 x 175 x 12.5 mm
  • Calibration / test certificate according to ASTM E2597-07





10-301 - Aluminium step wedge
10-302 - Titanium step wedge
10-303 - Inconel step wedge



Product features:

  • Complies with:
    • ASTM E2597-07
  • CE certified (declaration of conformity according to ISO/IEC 17050-1)
  • The manual provides guidelines for carrying out each test, results assessment and registration
