VISICOIL™ Linear Fiducial Markers

needle_750x500
needle_750x5003-needles_750x500twin-line_750x500
  VISICOIL is the original flexible linear fiducial marker for use with today’s most accurate image guided radiotherapy treatment plans. Visicoil Linear Fiducial Markers are used to enhance accuracy and efficiency during radiation therapy. The markers provide a real-time accurate localization of s ...Read more



  • Description
  • Specifications



VISICOIL is the original flexible linear fiducial marker for use with today’s most accurate image guided radiotherapy treatment plans.

Visicoil Linear Fiducial Markers are used to enhance accuracy and efficiency during radiation therapy. The markers provide a real-time accurate localization of soft tissue tumor during radiotherapy treatment.

The various sizes and hollow core of VISICOIL™ reduces the image artifact caused by solid gold markers in many imaging machines. Reduced artifact aids by decreased processing time, more precise contouring. This also help in hypofractionation where escalated dosing and tighter margins are required.

The hollow core of VISICOIL™ reduces the artifact caused by solid gold seeds in many imaging machines. VISICOIL™ reduces artifact aids the Radiation Oncologist during contouring. Better visibility of the tumor allows for increased dosing to the tumor and tighter margins.

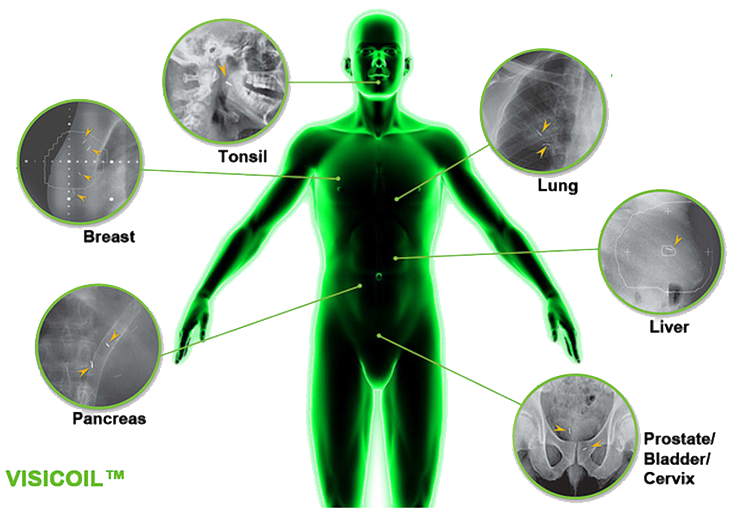

The helical design of VISICOIL™ provides extreme flexibility of the marker. This allows the marker to easily be placed in delicate tissues such as the Pancreas, Liver, Lung, Cervix, Breast, Bladder, and more. The flexible VISICOIL™ markers conforms and moves with deformable tissue potentially helping to mitigate migration.

Today’s high tech imaging and treatment machines need a stable marker with excellent visibility. VISICOIL™ has demonstrated excellent stability in soft tissue with visibility needed to optimize their capabilities. When top manufacturer’s of these machines need a marker to demonstrate how well their equipment works; They choose VISICOIL™

Today’s high tech imaging equipment and accurate treatment capabilities should no longer rely on 1st generation fiducial markers. With escalated dosing and tighter margins, the need for improved marker reliability to treat your patients with confidence is clear. VISICOIL™ has demonstrated excellent stability in soft tissue with visibility needed to optimize their capabilities. When top manufacturers of these machines and associated devices need a marker to demonstrate how well their equipment works, they choose VISICOIL™.



Features

  •  Helical design offers excellent ultrasound imaging
  •  Traditional Hollow Core = Minimal Imaging Artifact
  •  Stable marker localization from implant through treatment
  •  VISICOIL proven patented design
  •  Helical coil and flexible design fixates marker in target tissue
  •  Minimally invasive design allows for atraumatic placement
  •  Thin Needle Design = less pain, edema, bleeding, more comfort & safety
  •  Smaller needle path increases marker stability
  •  Linear Design = Less needles = Less measuring = Faster implantation
  •  Efficient, consistent, and reliable daily treatment set up
  •  VISICOIL is available in the 0.35mm, 0.50mm, 0.75mm, 1.10mm diameters
  •  VISICOIL is available in the 0.5cm, 1.0cm, 2.0cm, 3.0cm lengths

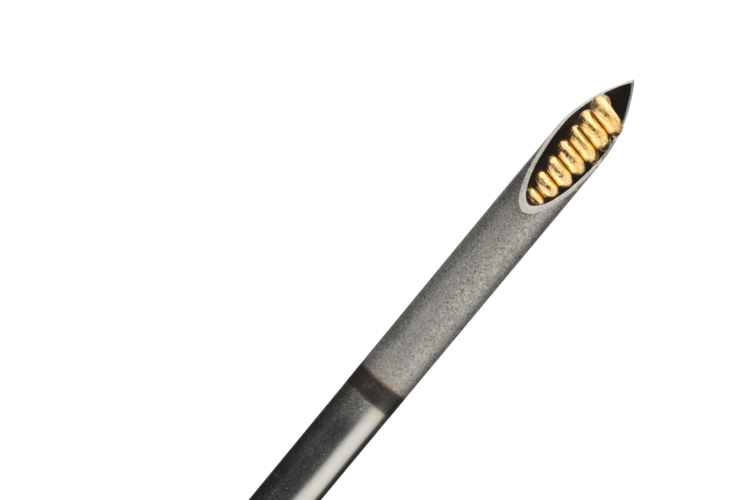

  •  Available loose or preloaded in 8cm, 15cm, 20cm or 30cm needles







Legend

  • VC - Traditional Visicoil marker made of gold (all items without the MR suffix (letters) are made of gold
  • FP - Loose Visicoil on a carrier (not in a preloaded needle)
  • SN - Visicoil pre Loaded  in a extra thin needle (21G/22G) also in different needle lenghts for use by Interventional radiologist
  • MR - Visicoil made of Platinum with especially higher visibility in combination with MRI equipment



Dimensions

  • Needle Length (cm)
  • Diameter (mm)
  • Marker Length (cm)



Needle Gauge Needle Length
 Diameter Marker Length
 MR Item No. Description
    0.35 0.5   FP-03505 0.35mm x 0.5cm VISICOIL
    0.35 1.0   FP-0009 0.35mm x 1.0cm VISICOIL
    0.35 2.0   FP-0010 0.35mm x 2.0cm VISICOIL
    0.35 3.0   FP-0011 0.35mm x 3.0cm VISICOIL
    0.50 0.5   FP-05005 0.50mm x 0.5cm VISICOIL
    0.50 1.0   FP-05010 0.50mm x 1.0cm VISICOIL
    0.50 2.0   FP-05020 0.50mm x 2.0cm VISICOIL
    0.50 3.0   FP-05030 0.50mm x 3.0cm VISICOIL
    0.75 0.5   FP-0755 0.75mm x 0.5cm VISICOIL
    0.75 1.0   FP-0015 0.75mm x 1.0cm VISICOIL
    0.75 2.0   FP-0016 0.75 mm x 2.0cm VISICOIL
    0.75 3.0   FP-0017 0.75 mm x 3.0cm VISICOIL
    1.10 0.5   FP-11005 1.10mm x 0.5cm VISICOIL
    1.10 1.0   FP-0057 1.10mm x 1.0cm VISICOIL
    1.10 2.0   FP-0058 1.10mm x 2.0cm VISICOIL
    1.10 3.0   FP-0059 1.10mm x 3.0cm VISICOIL
    0.35 0.5 MR MRFP-035-005 0.35mm x 0.5cm VISICOIL MR
    0.35 1.0 MR MRFP-035-010 0.35mm x 1.0cm VISICOIL MR
    0.35 2.0 MR MRFP-035-020 0.35mm x 2.0cm VISICOIL MR
    0.50 0.5 MR MRFP-050-005 0.50mm x 0.5cm VISICOIL MR
    0.50 1.0 MR MRFP-050-010 0.50mm x 1.0cm VISICOIL MR
    0.50 2.0 MR MRFP-050-020 0.50mm x 2.0cm VISICOIL MR
    0.75 0.5 MR MRFP-075-005 0.75mm x 0.5cm VISICOIL MR
    0.75 1.0 MR MRFP-075-010 0.75mm x 1.0cm VISICOIL MR
    0.75 2.0 MR MRFP-075-020 0.75mm x 2.0cm VISICOIL MR
    1.00 0.5 MR MRFP-100-005 1.00mm x 0.5cm VISICOIL MR
    1.00 1.0 MR MRFP-100-010 1.00mm x 1.0cm VISICOIL MR
    1.00 2.0 MR MRFP-100-020 1.00mm x 2.0cm VISICOIL MR
22 8 0.35 0.5   SN-035-005-PL08 0.35mm x 0.5cm VISICOIL 22g x 08cm Needle
22 15 0.35 1.0   SN-035-005-PL15 0.35mm x 0.5cm VISICOIL 22g x 15cm Needle
22 8 0.35 1.0   SN-035-010-PL08 0.35mm x 1.0cm VISICOIL 22g x 08cm Needle
22 15 0.35 1.0   SN-035-010-PL15 0.35mm x 1.0cm VISICOIL 22g x 15cm Needle
22 8 0.35 2.0   SN-035-020-PL08 0.35mm x 2.0cm VISICOIL 22g x 08cm Needle
22 15 0.35 2.0   SN-035-020-PL15 0.35mm x 2.0cm VISICOIL 22g x 15cm Needle
21 8 0.50 0.5   SN-050-005-PL08 0.50mm x 0.5cm VISICOIL 21g x 08cm Needle
21 15 0.50 0.5   SN-050-005-PL15 0.50mm x 0.5cm VISICOIL 21g x 15cm Needle
21 8 0.50 1.0   SN-050-010-PL08 0.50mm x 1.0cm VISICOIL 21g x 08cm Needle
21 15 0.50 1.0   SN-050-010-PL15 0.50mm x 1.0cm VISICOIL 21g x 15cm Needle
21 8 0.50 2.0   SN-050-020-PL08 0.50mm x 2.0cm VISICOIL 21g x 08cm Needle
21 15 0.50 2.0   SN-050-020-PL15 0.50mm x 2.0cm VISICOIL 21g x 15cm Needle
22 8 0.35 0.5 MR SNMR-035-005-2208 0.35mm x 0.5cm VISICOIL MR 22g x 08cm Needle
22 15 0.35 0.5 MR SNMR-035-005-2215 0.35mm x 0.5cm VISICOIL MR 22g x 15cm Needle
22 20 0.35 0.5 MR SNMR-035-005-2220 0.35mm x 0.5cm VISICOIL MR 22g x 20cm Needle
22 8 0.35 1.0 MR SNMR-035-010-2208 0.35mm x 1.0cm VISICOIL MR 22g x 08cm Needle
22 15 0.35 1.0 MR SNMR-035-010-2215 0.35mm x 1.0cm VISICOIL MR 22g x 15cm Needle
22 20 0.35 1.0 MR SNMR-035-010-2220 0.35mm x 1.0cm VISICOIL MR 22g x 20cm Needle
22 8 0.35 2.0 MR SNMR-035-020-2208 0.35mm x 2.0cm VISICOIL MR 22g x 08cm Needle
22 15 0.35 2.0 MR SNMR-035-020-2215 0.35mm x 2.0cm VISICOIL MR 22g x 15cm Needle
22 20 0.35 2.0 MR SNMR-035-020-2220 0.35mm x 2.0cm VISICOIL MR 22g x 20cm Needle
21 8 0.50 0.5 MR SNMR-050-005-2108 0.50mm x 0.5cm VISICOIL MR 21g x 08cm Needle
21 15 0.50 0.5 MR SNMR-050-005-2115 0.50mm x 0.5cm VISICOIL MR 21g x 15cm Needle
21 20 0.50 0.5 MR SNMR-050-005-2120 0.50mm x 0.5cm VISICOIL MR 21g x 20cm Needle
21 8 0.50 2.0 MR SNMR-050-020-2108 0.50mm x 2.0cm VISICOIL MR 21g x 08cm Needle
21 15 0.50 2.0 MR SNMR-050-020-2115 0.50mm x 2.0cm VISICOIL MR 21g x 15cm Needle
21 20 0.50 2.0 MR SNMR-050-020-2120 0.50mm x 2.0cm VISICOIL MR 21g x 20cm Needle
19 20 0.35 0.5   VC-035-005-PL 0.35mm x 0.5cm VISICOIL 19g x20cm Needle
19 20 0.35 1.0   VC-035-010-PL 0.35mm x 1.0cm VISICOIL 19g x20cm Needle
19 20 0.35 2.0   VC-035-020-PL 0.35mm x 2.0cm VISICOIL 19g x20cm Needle
19 20 0.35 3.0   VC-035-030-PL 0.35mm x 3.0cm VISICOIL 19g x20cm Needle
18 20 0.5 0.5   VC-050-005-PL 0.50mm x 0.5cm VISICOIL 18g x20cm Needle
18 20 0.5 1.0   VC-050-010-PL 0.50mm x 1.0cm VISICOIL 18g x20cm Needle
18 20 0.5 2.0   VC-050-020-PL 0.50mm x 2.0cm VISICOIL 18g x20cm Needle
19 20 0.5 0.5   VC-050-005-PLSL 0.50mm x 0.5cm VISICOIL 19g x 20cm Needle
19 20 0.5 1.0   VC-050-010-PLSL 0.50mm x 1.0cm VISICOIL 19g x 20cm Needle
19 20 0.5 2.0   VC-050-020-PLSL 0.50mm x 2.0cm VISICOIL 19g x 20cm Needle
18 30 0.50   0.5   VC-050-005-PL30 0.50mm x 0.5cm VISICOIL 18g x30cm Needle
18 30 0.50   1.0   VC-050-010-PL30 0.50mm x 1.0cm VISICOIL 18g x30cm Needle
18 20 0.75 0.5   VC-075-005-PL 0.75mm x 0.5cm VISICOIL 18g x20cm Needle
18 20 0.75 1.0   VC-075-010-PL 0.75mm x 1.0cm VISICOIL 18g x20cm Needle
18 20 0.75 2.0   VC-075-020-PL 0.75mm x 2.0cm VISICOIL 18g x20cm Needle
18 20 0.75 3.0   VC-075-030-PL 0.75mm x 3.0cm VISICOIL 18g x20cm Needle
18 12 0.75 0.5   VC-075-005-PL12 0.75mm x 0.5cm VISICOIL 18g x12cm Needle
18 12 0.75 1.0   VC-075-010-PL12 0.75mm x 1.0cm VISICOIL 18g x12cm Needle
18 12 0.75 2.0   VC-075-020-PL12 0.75mm x 2.0cm VISICOIL 18g x12cm Needle
18 30 0.75 0.5   VC-075-005-PL30 0.75mm x 0.5cm VISICOIL 18g x30cm Needle
18 30 0.75 1.0   VC-075-010-PL30 0.75mm x 1.0cm VISICOIL 18g x30cm Needle
18 30 0.75 2.0   VC-075-020-PL30 0.75mm x 2.0cm VISICOIL 18g x30cm Needle
17 20 1.10 0.5   VC-110-005-PL 1.10mm x 0.5cm VISICOIL 17g x20cm Needle
17 20 1.10 1.0   VC-110-010-PL 1.10mm x 1.0cm VISICOIL 17g x20cm Needle
17 20 1.10 2.0   VC-110-020-PL 1.10mm x 2.0cm VISICOIL 17g x20cm Needle
17 20 1.10 3.0   VC-110-030-PL 1.10mm x 3.0cm VISICOIL 17g x20cm Needle
17 30 1.10 1.0   VC-110-010-PL30 1.10mm x 1.0cm VISICOIL 17g x30cm Needle
17 30 1.10 2.0   VC-110-020-PL30 1.10mm x 2.0cm VISICOIL 17g x30cm Needle
20 20 0.5 0.5 MR MR-050-005-PL 0.50mm x 0.5cm VISICOIL MR 20g x 20cm Needle
20 20 0.5 1.0 MR MR-050-010-PL 0.50mm x 1.0cm VISICOIL MR 20g x 20cm Needle
20 20 0.5 2.0 MR MR-050-020-PL 0.50mm x 2.0cm VISICOIL MR 20g x 20cm Needle
20 20 0.75 0.5 MR MR-075-005-PL 0.75mm x 0.5cm VISICOIL MR 20g x 20cm Needle
20 20 0.75 1.0 MR MR-075-010-PL 0.75mm x 1.0cm VISICOIL MR 20g x 20cm Needle
20 20 0.75 2.0 MR MR-075-020-PL 0.75mm x 2.0cm VISICOIL MR 20g x 20cm Needle
18 20 1.00 0.5 MR MR-100-005-PL 1.00mm x 0.5cm VISICOIL MR 18g x 20cm Needle
18 20 1.00 1.0 MR MR-100-010-PL 1.00mm x 1.0cm VISICOIL MR 18g x 20cm Needle
18 20 1.00 2.0 MR MR-100-020-PL 1.00mm x 2.0cm VISICOIL MR 18g x 20cm Needle
19 20       FP-0048 19G Pre-Waxed Needle, 20cm
18 20       FP-0049 18G Pre-Waxed Needle, 20cm
18 12       FP-004912 18G Pre-Waxed Needle, 12cm
17 20       FP-0050 17G Pre-Waxed Needle, 20cm
17 30       FP-0060 17G Pre-Waxed Needle, 30cm
