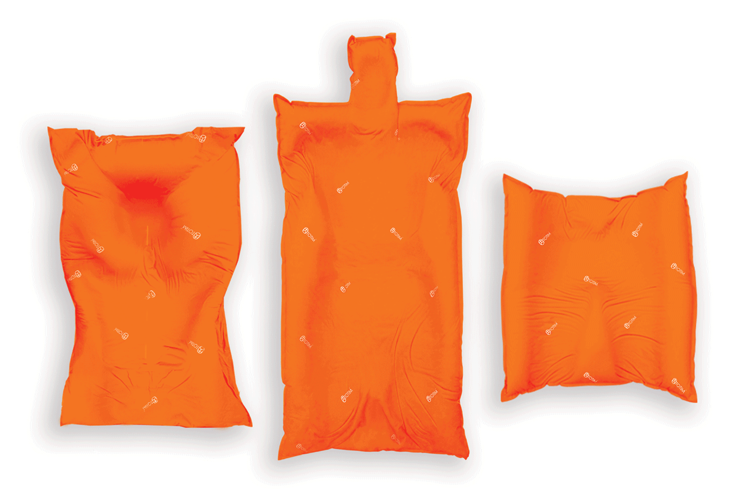

TOTIM® is a fully sealed polyurethane foam cushion covered with microfiber polyester tissue for patient positioning and immobilization during simulation, planning and radiation treatment. The cushion shapes and molds around the patient after activation of the internal components. It maintains its formed shape during all sessions of radiotherapy treatment, enabling reproducibility of patient position.
Features & Clinical Benefits
Sealed and ready for use - Limits movement and enables reproducibility of the patient position - Conform to shape easily during stiffening phase - Disposable, easy to sanitize markable and radio transparent - Can be formed and indexed to positioning devices and other rigid supports - Pediatric options available
Indications for Use:
TOTIM® Patient Cushions Immobilization System is indicated to position and/or immobilize and/or repositioning forms both adult and pediatric patients undergoing radiation therapy of the body, head, brain, neck, cervical, arm, limb, hand and leg including Stereotactic Radiosurgery (SRS), Stereotactic Radiotherapy (SRT), Surface Guided Radiation Therapy (SGRT), and electron, photon and proton treatments. The device is also used during image acquisition, including Computed Tomography (CT) and Magnetic Resonance (MR) Imaging, to support treatment planning.
Technical Characteristics:
Cushion with external cover in microfiber comfortable and absorbent water repellent non-woven material, markable, washable/easily sanitized, temperature controlled exothermic reaction, the short window of time required for solidification allows for the correct modeling of the external cover in microfiber polyester tissue fully sealed.
TOTIM® is a polyurethane foam immobilization system using fully sealed bag/cushion.
The device can be attached to the treatment or simulation couch, extension, or overlay along with other optional positioning and immobilization devices and accessories.
Materials: Cushion in Microfiber Polyester / PU (fully sealed) and internal pouch (fully sealed) with inside the two reagents ready to be mixed.
Non-clinical testing was completed to confirm that TOTIM is safe and effective device.
A scientific rationale was used to address RF heating, magnetically induced torque, and magnetically induced displacement force.
The TOTIM® device was tested with ASTM F2119-07 (Reapproved 2013) Standard Test Method for Evaluation of MR Image Artifacts from Passive Implants (Materials), TOTIM is MR Safe.
Proton Test Water Equivalent Thickness (WET) Values:
To verify that the product to not negatively impact a proton team when measured orthogonally through the permissible radiation area.
Conclusion: the product tested do not perturb or impact the proton beam in a way that cannot be accounted for in the proton treatment planning process.
The devices are intended for limited contact duration (<24 hours) for surface devices (skin).
Biocompatibility:
ISO 10993-5:2009, 10993-12: 2012 and ISO 10993-10: 2010.
UNIQUE FEATURE
1. Fully sealed and expanding foam cushion
Totim is an expanding foam cushion, fully sealed with an outer microfiber polyester cover.
2. From extremity to whole body
Totim cushions are specifically designed for many different parts of the body, from individual limbs to whole body.
3. No air or moisture activation
Totim cushion form by activation of internal component to then shape and mold around the patient. Does not require vacuum or water activation process to form rigid cushion.
4. Just hold to mold
A simple process including activating the cushion contents, positioning the patient and then holding the cushion’s position. The expanding foam will then mold around the patient.
5. Durable
The patient can get in and out of a properly made form all day long without damaging it or changing its shape.
Setting up the patient in a reproducible position for accurate daily treatment.
ADULT - BODY & LIMBS
T3015/T
T-Shaped Cushion f(or use in conjunction with Lung Board)
TOTIM® is a fully sealed polyurethane foam cushion covered with microfiber polyester tissue for patient positioning and immobilization during simulation, planning and radiation treatment. The cushion shapes and molds around the patient after activation of the internal components. It maintains its formed shape during all sessions of radiotherapy treatment, enabling reproducibility of patient position.
Features & Clinical Benefits
Sealed and ready for use - Limits movement and enables reproducibility of the patient position - Conform to shape easily during stiffening phase - Disposable, easy to sanitize markable and radio transparent - Can be formed and indexed to positioning devices and other rigid supports - Pediatric options available
Indications for Use:
TOTIM® Patient Cushions Immobilization System is indicated to position and/or immobilize and/or repositioning forms both adult and pediatric patients undergoing radiation therapy of the body, head, brain, neck, cervical, arm, limb, hand and leg including Stereotactic Radiosurgery (SRS), Stereotactic Radiotherapy (SRT), Surface Guided Radiation Therapy (SGRT), and electron, photon and proton treatments. The device is also used during image acquisition, including Computed Tomography (CT) and Magnetic Resonance (MR) Imaging, to support treatment planning.
Technical Characteristics:
Cushion with external cover in microfiber comfortable and absorbent water repellent non-woven material, markable, washable/easily sanitized, temperature controlled exothermic reaction, the short window of time required for solidification allows for the correct modeling of the external cover in microfiber polyester tissue fully sealed.
TOTIM® is a polyurethane foam immobilization system using fully sealed bag/cushion.
The device can be attached to the treatment or simulation couch, extension, or overlay along with other optional positioning and immobilization devices and accessories.
Materials: Cushion in Microfiber Polyester / PU (fully sealed) and internal pouch (fully sealed) with inside the two reagents ready to be mixed.
Non-clinical testing was completed to confirm that TOTIM is safe and effective device.
A scientific rationale was used to address RF heating, magnetically induced torque, and magnetically induced displacement force.
The TOTIM® device was tested with ASTM F2119-07 (Reapproved 2013) Standard Test Method for Evaluation of MR Image Artifacts from Passive Implants (Materials), TOTIM is MR Safe.
Proton Test Water Equivalent Thickness (WET) Values:
To verify that the product to not negatively impact a proton team when measured orthogonally through the permissible radiation area.
Conclusion: the product tested do not perturb or impact the proton beam in a way that cannot be accounted for in the proton treatment planning process.
The devices are intended for limited contact duration (<24 hours) for surface devices (skin).
Biocompatibility:
ISO 10993-5:2009, 10993-12: 2012 and ISO 10993-10: 2010.
UNIQUE FEATURE
1. Fully sealed and expanding foam cushion
Totim is an expanding foam cushion, fully sealed with an outer microfiber polyester cover.
2. From extremity to whole body
Totim cushions are specifically designed for many different parts of the body, from individual limbs to whole body.
3. No air or moisture activation
Totim cushion form by activation of internal component to then shape and mold around the patient. Does not require vacuum or water activation process to form rigid cushion.
4. Just hold to mold
A simple process including activating the cushion contents, positioning the patient and then holding the cushion’s position. The expanding foam will then mold around the patient.
5. Durable
The patient can get in and out of a properly made form all day long without damaging it or changing its shape.
Setting up the patient in a reproducible position for accurate daily treatment.
ADULT - BODY & LIMBS
T3015/T
T-Shaped Cushion f(or use in conjunction with Lung Board)
TOTIM® is a fully sealed polyurethane foam cushion covered with microfiber polyester tissue for patient positioning and immobilization during simulation, planning and radiation treatment. The cushion shapes and molds around the patient after activation of the internal components. It maintains its formed shape during all sessions of radiotherapy treatment, enabling reproducibility of patient position.
Features & Clinical Benefits
Sealed and ready for use - Limits movement and enables reproducibility of the patient position - Conform to shape easily during stiffening phase - Disposable, easy to sanitize markable and radio transparent - Can be formed and indexed to positioning devices and other rigid supports - Pediatric options available
Indications for Use:
TOTIM® Patient Cushions Immobilization System is indicated to position and/or immobilize and/or repositioning forms both adult and pediatric patients undergoing radiation therapy of the body, head, brain, neck, cervical, arm, limb, hand and leg including Stereotactic Radiosurgery (SRS), Stereotactic Radiotherapy (SRT), Surface Guided Radiation Therapy (SGRT), and electron, photon and proton treatments. The device is also used during image acquisition, including Computed Tomography (CT) and Magnetic Resonance (MR) Imaging, to support treatment planning.
Technical Characteristics:
Cushion with external cover in microfiber comfortable and absorbent water repellent non-woven material, markable, washable/easily sanitized, temperature controlled exothermic reaction, the short window of time required for solidification allows for the correct modeling of the external cover in microfiber polyester tissue fully sealed.
TOTIM® is a polyurethane foam immobilization system using fully sealed bag/cushion.
The device can be attached to the treatment or simulation couch, extension, or overlay along with other optional positioning and immobilization devices and accessories.
Materials: Cushion in Microfiber Polyester / PU (fully sealed) and internal pouch (fully sealed) with inside the two reagents ready to be mixed.
Non-clinical testing was completed to confirm that TOTIM is safe and effective device.
A scientific rationale was used to address RF heating, magnetically induced torque, and magnetically induced displacement force.
The TOTIM® device was tested with ASTM F2119-07 (Reapproved 2013) Standard Test Method for Evaluation of MR Image Artifacts from Passive Implants (Materials), TOTIM is MR Safe.
Proton Test Water Equivalent Thickness (WET) Values:
To verify that the product to not negatively impact a proton team when measured orthogonally through the permissible radiation area.
Conclusion: the product tested do not perturb or impact the proton beam in a way that cannot be accounted for in the proton treatment planning process.
The devices are intended for limited contact duration (<24 hours) for surface devices (skin).
Biocompatibility:
ISO 10993-5:2009, 10993-12: 2012 and ISO 10993-10: 2010.
UNIQUE FEATURE
1. Fully sealed and expanding foam cushion
Totim is an expanding foam cushion, fully sealed with an outer microfiber polyester cover.
2. From extremity to whole body
Totim cushions are specifically designed for many different parts of the body, from individual limbs to whole body.
3. No air or moisture activation
Totim cushion form by activation of internal component to then shape and mold around the patient. Does not require vacuum or water activation process to form rigid cushion.
4. Just hold to mold
A simple process including activating the cushion contents, positioning the patient and then holding the cushion’s position. The expanding foam will then mold around the patient.
5. Durable
The patient can get in and out of a properly made form all day long without damaging it or changing its shape.
Setting up the patient in a reproducible position for accurate daily treatment.
TOTIM® Patient Cushions Immobilization System Ophthalmology
Single Patient / Single Use
TOTIM Patient Cushion Immobilization System is used for positioning and immobilizing adult and pediatric patients undergoing eye surgery in order to ensure more comfort to the patient and the surgeon.
Fully sealed, its outer material is microfiber polyester cushion that contains two reagents inside which must be mixed to obtain a polyurethane foam. After a short time the polyurethane foam solidifies taking the shape of the patient's head.
It is utilized in: ocular surface surgery - limbal stem cells transplantation - corneal surgery, also by Femtosecond Laser - complex cataract surgery or in patients at risk - glaucoma surgery - anterior segment surgery - posterior segment surgery - strabismus surgery and use of Botulinum Toxin - ophthalmology surgery in children under general anesthesia
Technical Characteristics:
TOTIM Patient Cushion Immobilization System is used for positioning/immobilizing adult and pediatric patients undergoing eye surgery in order to ensure more comfort to the patient and the surgeon. Cushion with external cover in microfiber polyester comfortable and absorbent water repellent non-woven material, markable, washable/easily sanitized - temperature controlled exothermic reaction - the short window of time required for solidification allows for the correct modeling
Materials:
Cushion in Microfiber Polyester / PU (fully sealed) and internal pouch (fully sealed) with inside the two reagents ready to be mixed.
Biocompatibility: ISO 10993-5:2009, 10993-12: 2012, ISO 10993-10: 2010
TOTIM is used in a healthcare facility / hospital. The device is intended to be used on adult and pediatric patients.
