Fundamental Ultrasound Phantom

r16056_1_750x500
r16056_1_750x500r16056_2_750x500r16056_3_750x500

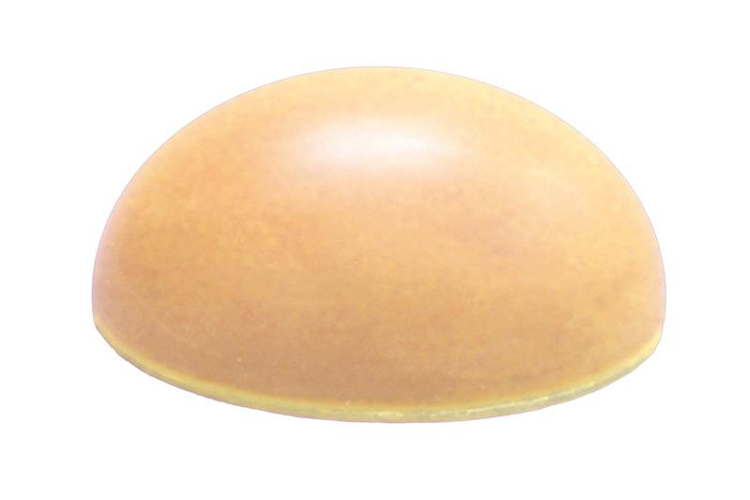

  This oval phantom helps sonographers with basic trainings. It is a phantom for basic manipulation of the ultrasound transducer. The user is able to learn the recognition of shape, echogenicity, distance an to practice horizontal transducer works. The user can learn to interpret 2D cross section ...Read more



  • Description
  • Specifications



This oval phantom helps sonographers with basic trainings. It is a phantom for basic manipulation of the ultrasound transducer.

The user is able to learn the recognition of shape, echogenicity, distance an to practice horizontal transducer works.

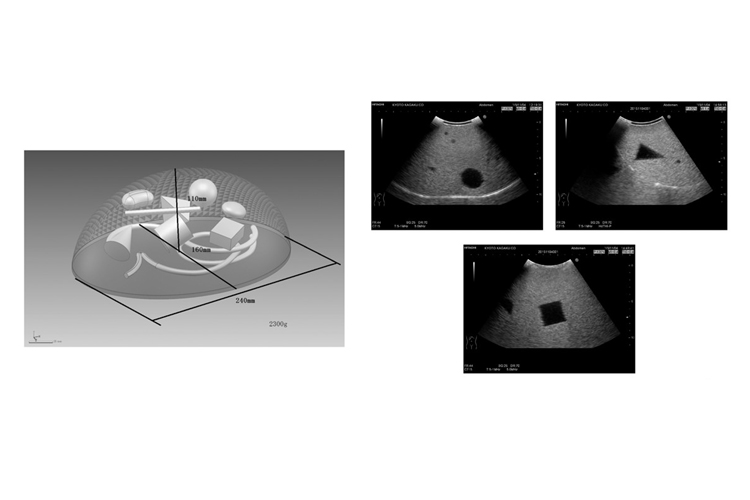

The user can learn to interpret 2D cross sectional images into a shape of 3D object.

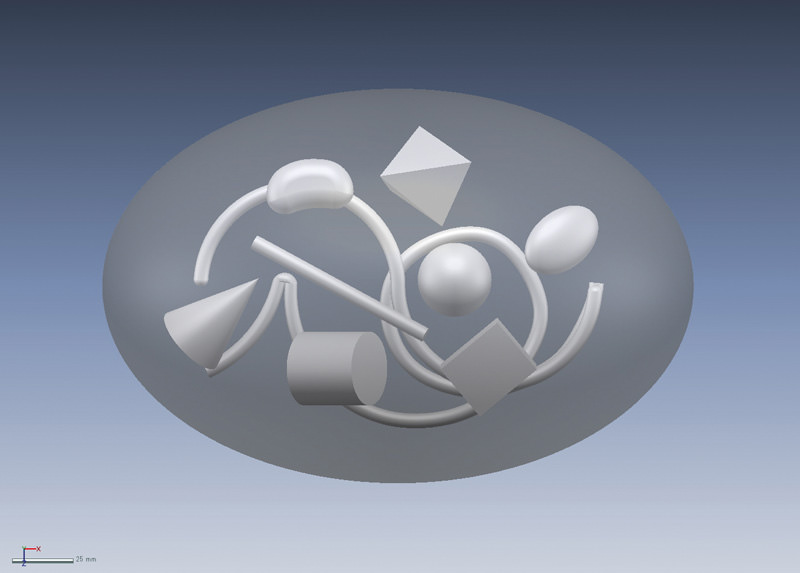

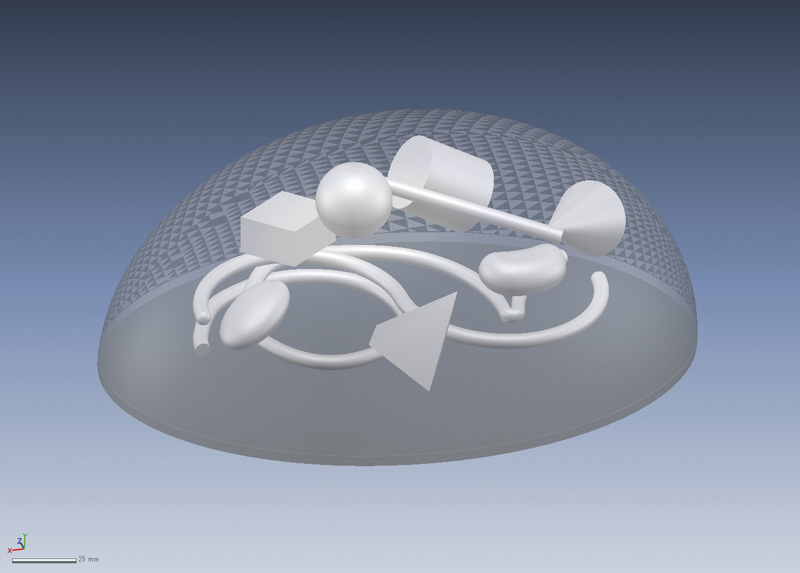

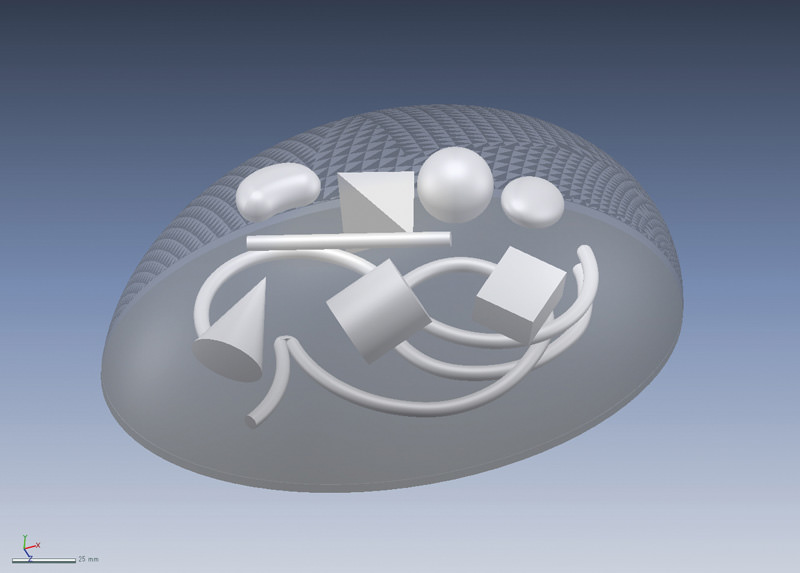

There are 10 objects embedded in the phantom.

Learn how to adjust time-gain compensation to obtain suitable density, how to measure dimensions and distance. Objects with spheroidal and flat surfaces provide a variety of difficulty.

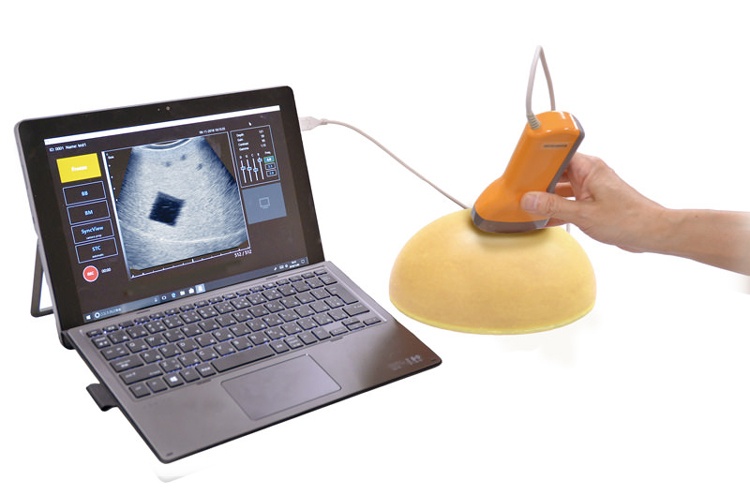

Features 1. Phantom for basic manipulation of ultrasound transducer
2. Recognition of shape, echogenicity, distance, and practice of horizontal transducer works, which are all you are able to learn through this oval phantom
Training skills / Applications Interpret 2-D cross sectional images into the shape of 3-D dimensional objects / 10 objects are embedded/ Adjusting Time-Gain Compensation to obtain suitable density /Measuring dimensions and distance / Transducer handling to obtain accurate 2-D cross-section image /| Flat and spheroidal surfaces provide a variety of difficulty
Size (approx.) W24 x D16 x H11 cm
Weight (approx.) 2.3kg
Materials Polyurethane elastomer
Latex free
