Winston-Lutz Cube

winston-lutz-031_750x500
winston-lutz-031_750x500winston-lutz-046_750x500
  The Winston-Lutz Cube is a simple, efficient, and highly reproducible method for determining Isocenter Verification of the Gantry, Collimator, Treatment Table Rotation Axes, and Lasers. The Winston-Lutz Cube is designed for comprehensive Winston-Lutz Isocenter Verification for SRS and SBRT. It p ...Read more



  • Description
  • Specifications



The Winston-Lutz Cube is a simple, efficient, and highly reproducible method for determining Isocenter Verification of the Gantry, Collimator, Treatment Table Rotation Axes, and Lasers.

The Winston-Lutz Cube is designed for comprehensive Winston-Lutz Isocenter Verification for SRS and SBRT. It provides simple, efficient, and highly reproducible method for determining Isocenter Verification of the Gantry, Collimator, Treatment Table Rotation Axes, and Lasers. Machined to precise tolerances, the Winston-Lutz Cube provides repeatable measurements to less than 0.25mm.

When paired with our iQA Auto Analysis Software, all analyses are performed automatically in seconds; all data is stored in the iQA database for trending and further analysis.

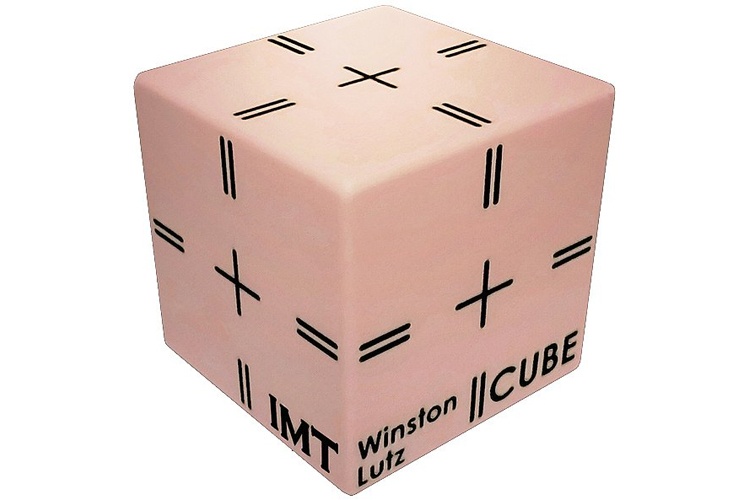

Winston-Lutz Cube (PN: 031) Standard Configuration includes:

  • 6cm x 6cm Urethane Material
  • Single 6.35mm Tungsten-Carbide Target



Winston-Lutz Cube (PN: 046) includes:
  • 6cm x 6cm Water-Equivalent Material
  • Single 6.35mm Tungsten-Carbide Target



Alternate configurations, materials, sizes available





Key Features

  • The Winston-Lutz Cube is designed for comprehensive Winston-Lutz Isocenter Verification for SRS and SBRT
  • Provides simple, efficient, and highly-reproducible method for determining Isocenter Verification of the Gantry, Collimator, Treatment table rotation axes, and Lasers
  • Unique Cube design incorporates a Tungsten (for use with EPID) or Ceramic (kV) 6.25mm central fiducial aligned to exterior alignment lines which are visible on 5 sides of the cube
  • No Assembly or Film needed
  • The Winston-Lutz Cube is machined to precise tolerances, providing repeatable measurements within 0.20mm
  • Ask about integration with our iQA Auto Analysis Software
