STS Safe-6150AD

sts6150_750x500
  The new STS Safe-Series range brings new technology into handheld simulation to provide the most realistic simulators available today. A unique radio system produces both a near isotropic field pattern from the source and from the detector. A good representation of the inverse square law and att ...Read more



  • Description
  • Specifications



The new STS Safe-Series range brings new technology into handheld simulation to provide the most realistic simulators available today.

A unique radio system produces both a near isotropic field pattern from the source and from the detector. A good representation of the inverse square law and attenuation of different materials adds to the realistic response.

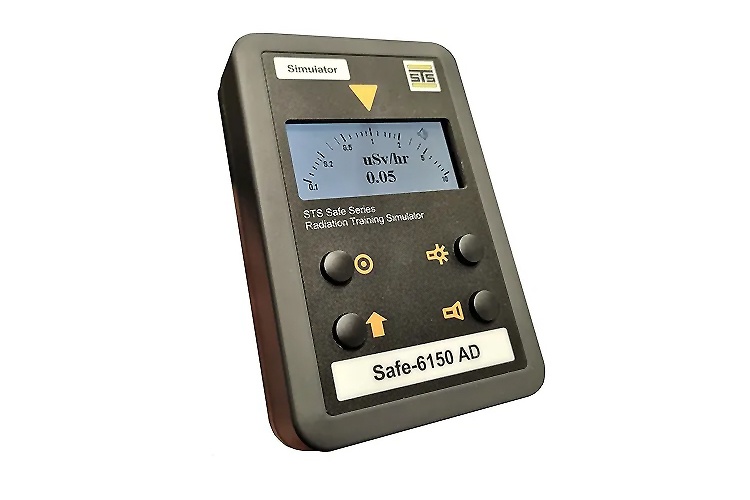

Available now is the Safe-Series 6150AD simulator. This Survey meter simulator is a replica of a real 6150AD utilising the STS Safe-Series technology. The simulator features the same display set out, audio output and button arrangements as the real instrument but responds to the Safe-Series Mini and Pocket Sources.

All of the instruments in the Safe-Series range are compatible – so any combination of Survey Meter, Dosimeter and Source may be used – with up to 16 instruments being simultaneously fielded.





Dimensions 180 x 110 x 35 mm
Weight 0.25 kg
Construction Moulded Plastic Case
Controls 4 function keys  Gloved operable buttons
Control Keys On/Off Backlight on/off & menu scroll  Audio on/off and menu scroll
Display Type Digital 65 x 35mm LCD Black & White
Backlight  Yes On/off from keypad
Battery 2 x AA 1.5V cells THIS UNIT CANNOT BE MAINS RECHARGED Battery life 7 hrs+
Detector STS radio frequency Detector
Audio Output Yes – Selectable on/off Rate and Alarm
Alarm Thresholds Selectable on Instrument
Scale Scale automatically displayed for each range
Background Level set in user menu
Operating & Storage Temperature Operating temp 0° C to +30° C  Storage temp -10° C to +40° C
Warm up time 10 seconds from switch on to ready Network OK icon displayed
Available Sources Safe-MiniSource variable, safe-Pocket Source Available in a range of activity levels
