STS RamGene 1 MKII Simulator

ram-gen_750x500
  The STS 812 consists of a real Rotem Ram Gene with added STS electronics STS. The instrument detects the gas given off by the STS simulant, which has been applied to the surface to be monitored. This “radiation” may be detected by passing the instrument close to and slowly over the surface, as wo ...Read more



  • Description
  • Specifications

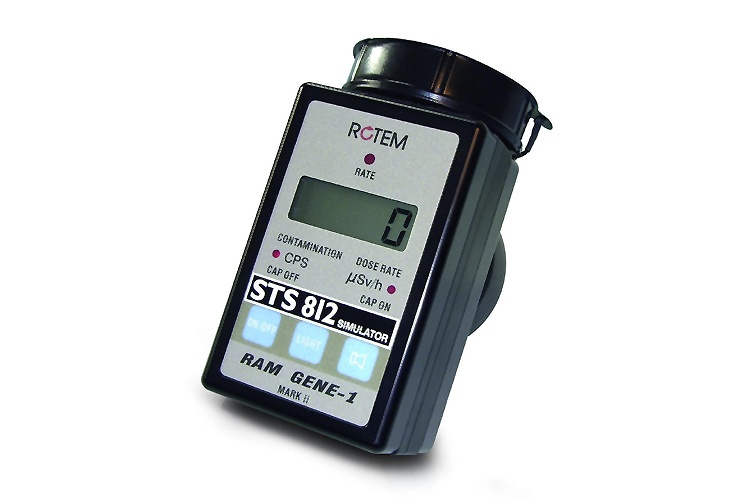

The STS 812 consists of a real Rotem Ram Gene with added STS electronics STS. The instrument detects the gas given off by the STS simulant, which has been applied to the surface to be monitored. This “radiation” may be detected by passing the instrument close to and slowly over the surface, as would be done with a real Ram Gene when used by a skilled operator. Too fast, or too far away results in no detection – excellent training.

Cross contamination can easily be demonstrated, as can decontamination – both benefits of using a “real” contamination, even if not radioactive. The contamination lasts at room temperature for 1-2 hours but totally evaporates within 24hrs leaving the training area ready for the next exercise.

The STS 812 is an almost exact replica of the real Ram Gene which is now the instrument of choice for all UK hospitals A&E departments as recommended by the HPA and as such the STS simulator provides a vital training aid for new users.  It has also been purchased by the UK police forces, homeland security and universities.





Dimensions 110 x 67 x 104 mm
Weight 0.76 kg
Construction ABS/ Rugged Metal Casing
Display Type Digital Display Single line 4 digit Display
Backlight Yes
Battery 1 x 9V “PP3” cell THIS UNIT CANNOT BE MAINS RECHARGED Battery life 1-1.5 hrs
Detector STS Gas detection system Detection unit based in original housing
Audio Output Yes Not adjustable
Alarm Thresholds No
Retained Functionality Menu functionality unchanged. CPS only Simulation of Contamination only Cap on/off functionality retained
Connector None
Operating & Storage Temperature Operating temp 0° C to +30° C  Above 30° C the stimulant will rapidly evaporate Storage temp -10° C to +40° C
Warm up time 30 seconds from switch on to ready
Available Probes None
Available Simulants LS1 –liquid stimulant spray SS4 – solid stimulant source
