RadEye™ G Series
Continuously monitor your radiation exposure in any nuclear or radiological emergency. The Thermo Scientific™ RadEye™ G Series of personal radiation detectors provide first responders with quick, reliable gamma and dose rate measurements. These light-weight, handheld Geiger counters detect and measure very low gamma energies; even the smallest change in radiation rates are displayed immediately, while coincidentally occurring fluctuations are suppressed. For hazmat teams investigating potentially explosive atmospheres, intrinsically safe RadEye G models meet the latest ATEX standards.
Menu driven interface can be optimized to application
Large, clear, backlit display for error free readings
High range versions for high turn back levels up to 300 R/h (3 Sv/h)
Intrinsically safe versions for potentially explosive environments
Large energy compensated GM tube for precise dose rate measurement of gamma and X-ray
High sensitivity to low energy gamma radiation in harsh environments
Durable – shock resistant design
900 hour operation with 2 AAA batteries
Bright LED allows for operation in smoke and darkness
One hot and four advanced buttons – easy to use Alarm relay output – for area monitor application
Designed to exceed ANSI N42.33 standard
Intrinsically safe , ATEX certified
Data analysis can be done by an optional Windows™-based PC-software and an accompanying reader device
Battery Type
2 AAA
Count Rate
For Cs-137 (66keV): 17 cps per µSv/h
Description
RadEye G-10 with Red Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
50 keV to 3 MeV in accordance with IEC 60846-1 (incl. angular dependency)
Measurement Ranges
0.5 µSv/h to 100 mSv/h
Dose Range
H*(10) up to 10 Sv
Overrange Threshold
up to 10 Sv/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Dose Rate Meter
Units
H*(10) in Sv and Sv/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: RadEye G-10 with Red Label
Battery Type
2 AAA
Count Rate
For Cs-137 (66keV): 17 cps per µSv/h
Description
RadEye G-10 with Red Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
50 keV to 3 MeV in accordance with IEC 60846-1 (incl. angular dependency)
Measurement Ranges
0.5 µSv/h to 100 mSv/h
Dose Range
H*(10) up to 10 Sv
Overrange Threshold
up to 10 Sv/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Dose Rate Meter
Units
H*(10) in Sv and Sv/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: RadEye G with Black Label
Battery Type
2 AAA
Count Rate
For Cs-137 (66keV): 17 cps per mR/h
Description
RadEye G with Black Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
45 keV to 1.3 MeV (+/-30%)
Measurement Ranges
50 µR/h to 10 R/h
Dose Rate
up to 1000 R
Dose Rate Limit
10R/h
Overrange Threshold
1000 R/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Dose Rate Meter
Units
R and R/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: RadEye G with Yellow Label
Battery Type
2 AAA
Count Rate
For Cs-137 (66keV): 17 cps per mR/h
Description
RadEye G with Yellow Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
45 keV to 1.3 MeV (+/-30%)
Measurement Ranges
50 µR/h to 10 R/h
Dose Rate Limit
10R/h
Overrange Threshold
1000 R/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Dose Rate Meter
Units
R and R/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: RadEye G-10-Ex with Orange Label
ATEX Classification
II 2G Ex ia IIB T4 IBExU10ATEX1096
Battery Type
2 AAA
Count Rate
For Cs-137 (622keV): 1.7 cps per µSv/h
Description
RadEye G-10-Ex with Orange Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
50 keV to 3 MeV in accordance with IEC 60846-1 (incl. angular dependency)
Measurement Ranges
0.5 µSv/h to 100 mSv/h [50 urem/h - 10 rem/h]
Dose Range
H*(10) up to 10 Sv
Overrange Threshold
up to 10 Sv/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Radiation Detector
Units
H*(10) in Sv and Sv/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each

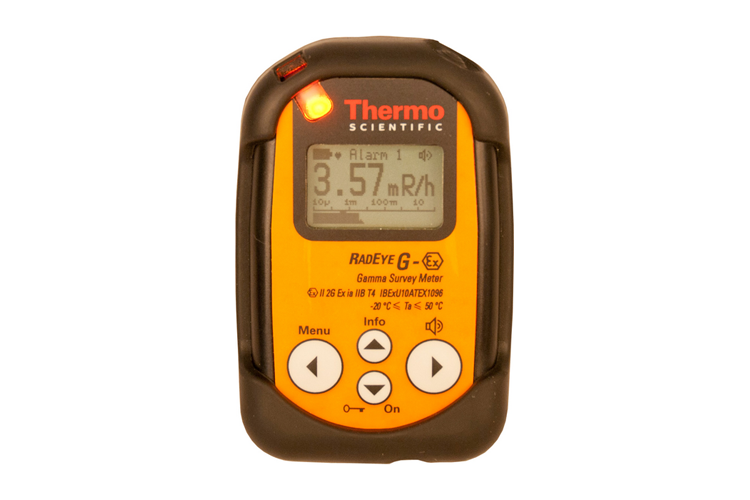

Personal Dose Rate Meters: RadEye G-Ex with Orange Label
ATEX Classification
II 2G Ex ia IIB T4 IBExU10ATEX1096
Battery Type
2 AAA
Count Rate
For Cs-137 (622keV): 17 cps per mR/h
Description
RadEye G-Ex with Orange Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
45 keV to 1.3 MeV (+/-30%)
Measurement Ranges
50µR/h to 10R/h
Dose Range
up to 1000 R
Overrange Threshold
1000 R/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Radiation Detector
Units
R and R/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: RadEye GF-Ex with Orange Label
ATEX Classification
II 2G Ex ia IIB T4 IBExU10ATEX1096
Battery Type
2 AAA
Count Rate
For Cs-137 (622keV): 1.3 cps per mR/h
Description
RadEye GF-Ex with Orange Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
45 keV to 1.3 MeV (+/-30%)
Measurement Ranges
500 µR/h to 300 R/h
Dose Range
up to 1000 R
Overrange Threshold
1000 R/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Radiation Detector
Units
R and R/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: RadEye G-10 PTB type tested version
Battery Type
2 AAA
Count Rate
For Cs-137 (66keV): 1.7 cps per µSv/h
Description
RadEye G-10 PTB type tested version
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
50 keV to 3 MeV in accordance with IEC 60846-1 (incl. angular dependency)
Measurement Ranges
0.5 µSv/h to 100 mSv/h [50 urem/h - 10 rem/h]
Dose Range
H*(10) up to 10 Sv
Overrange Threshold
up to 10 Sv/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Dose Rate Meter
Units
H*(10) in Sv and Sv/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each

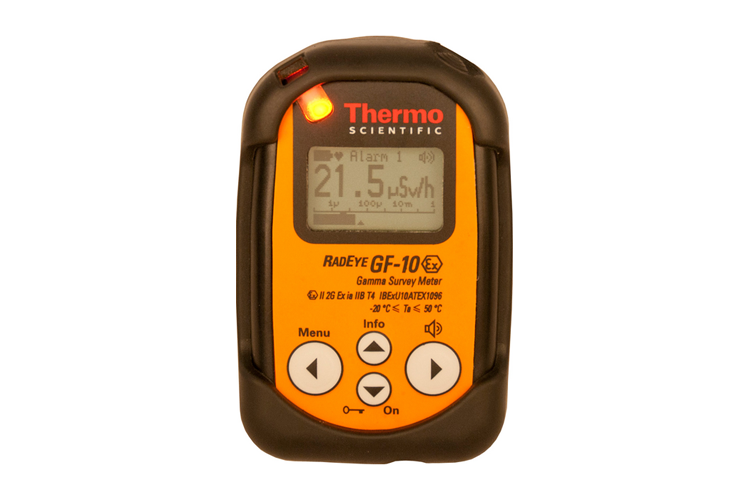

Personal Dose Rate Meters: RadEye GF-10-Ex with Orange Label
ATEX Classification
II 2G Ex ia IIB T4 IBExU10ATEX1096
Battery Type
2 AAA
Count Rate
For Cs-137 (622keV): 0.13 cps per µSv/h
Description
RadEye GF-10-Ex with Orange Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
50 keV to 3 MeV in accordance with IEC 60846-1 (incl. angular dependency)
Measurement Ranges
5 µSv/h to 3 Sv/h [500 urem/h - 300 rem/h]
Sensitivity
Cs-137, 660keV, ˜0.13cps/μSv/h
Dose Range
H*(10) up to 10 Sv
Overrange Threshold
up to 10 Sv/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Radiation Detector
Units
H*(10) in Sv and Sv/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: Radeye GF with Yellow Label
Battery Type
2 AAA
Count Rate
For Cs-137 (662 keV): 1.3 cps per mR/h
Description
Radeye GF with Yellow Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
45 keV to 1.3 MeV (+/-30%)
Measurement Ranges
500 µR/h - 300 R/h
Dose Range
up to 1000 R
Overrange Threshold
1000 R/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Radiation Detector
Units
R and R/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
Personal Dose Rate Meters: Radeye GF-10 with Yellow Label
Battery Type
2 AAA
Count Rate
For Cs-137 (662 keV): 1.3 cps per mR/h
Description
Radeye GF with Yellow Label
Detector Type
Energy-compensated Geiger-Mueller tube
Battery Life
900 hr.
Energy Range
45 keV to 1.3 MeV (+/-30%)
Measurement Ranges
500 µR/h - 300 R/h
Dose Range
up to 1000 R
Overrange Threshold
1000 R/h
Protection Degree
IP 65 according to EN 60529
Type
Personal Radiation Detector
Units
R and R/h
Dimensions (L x W x H)
3.78 x 1.25 x 2.4 in. (9.6 x 3.1 x 6.1 cm)
Weight (English)
0.41 lb.
Weight (Metric)
0.18 kg
Unit Size
Each
