DoseView™ 1D

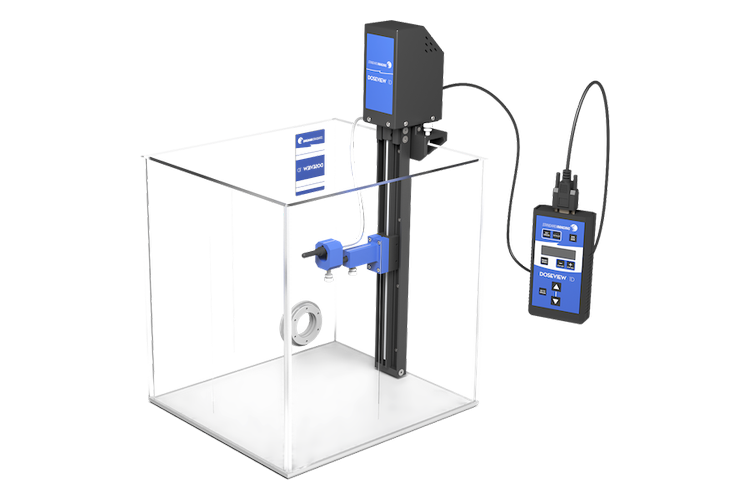

dv1d_750x500_808102456
  1D and 3D Scan Integration Automatically acquire depth-dose measurements in a durable, TG-51 and TRS-398 compliant 1D water scanning system. More Accurate Scans, Less Time Superior 0.05 mm accuracy of position and repeatability over entire travel distance produced by leadscrew shaft. 3 point l ...Read more



  • Description
  • Specifications



1D and 3D Scan Integration

Automatically acquire depth-dose measurements in a durable, TG-51 and TRS-398 compliant 1D water scanning system.


More Accurate Scans, Less Time

Superior 0.05 mm accuracy of position and repeatability over entire travel distance produced by leadscrew shaft. 3 point leveling simplifies precise detector placement at water surface.


Integrated, Customizable Data Collection

DoseView 1D Software seamlessly integrates the DoseView 1D, SuperMAX and/or MAX 4000 Electrometers for intuitive operation and testing.

Features include: Adjustable step intervals, multiple acquisition per position, and real-time plotting of data


Automate Your Workflow

Intuitive queue generation for any size of routine.

Automatic 1D Scanning Routines with DoseView 1D Software

Fully automate depth scan data collection with DoseView 1D and the SuperMAX™ or MAX 4000 Electrometers.





1D Scanning Arm Dimensions

  • Height 48.26 cm
  • Width 6.77 cm
  • Length 9.44 cm



Water Tank Dimensions

  • Height 36 cm
  • Width 30 cm
  • Length 34 cm



Water Tank Dimensions

  • Height 36 cm
  • Width 40 cm
  • Length 42 cm



Water Tank Material

  • Clear acrylic 0.95 cm



Weight

  • 1D Scanning Arm 1.36 kg
  • Handheld Controller 0.23 kg
  • Water Tank (empty) 6.35 kg
  • Water Tank (empty) 10.43 kg



Max Scanning Arm Travel

  • 27.5 cm



Ionization Chamber Holder Diameter Accommodation

  • Max 20 mm
  • Min 6 mm



Backscatter clearance at 25 cm depth

  •  ˜ 8 cm including phantom base



Accuracy of Position

  • ± 0.05 mm over entire 275.00 mm



Repeatability of Position

  • ± 0.05 mm over entire 275.00 mm



Operating Conditions

  • Pressure 680 - 800 mm Hg
  • Temperature 10 - 40 °C
  • Relative Humidity 30 to 75%, non-condensing



Storage Conditions

  • Temperature -40 to 70 °C
  • Relative Humidity 0 to 95%, non-condensing
  • Cabling 100 ft extension cable provided (standard RS-232 configuration)



Power Requirements

  •     AC Output 12 VDC @ 1.25 A



Optional Detector Brackets

  • PTW Markus®
  • PTW Roos®
  • Vertical Holder



Product Standards: CE
