MAX Elite™ Electrometer

MAX Elite™ Electrometer
MAX Elite™ Electrometermax_elite_view2_750x500max-elite_remote-use_75x500
  The choice for precision. The standard for quality. Largest Touch Screen on the market. Intuitive Interface. High precision measurements.   Streamlined Setup, Maximum Efficiency Get up and running quickly with an intuitive interface that makes measurements and adjustments seamless.   Fast R ...Read more



  • Description
  • Specifications



The choice for precision. The standard for quality.

Largest Touch Screen on the market. Intuitive Interface. High precision measurements.



Streamlined Setup, Maximum Efficiency

Get up and running quickly with an intuitive interface that makes measurements and adjustments seamless.



Fast Responding

Fast-settling and fast-zeroing features that deliver both speed and precision for quick, reliable data collection



Precision at Your Fingertips

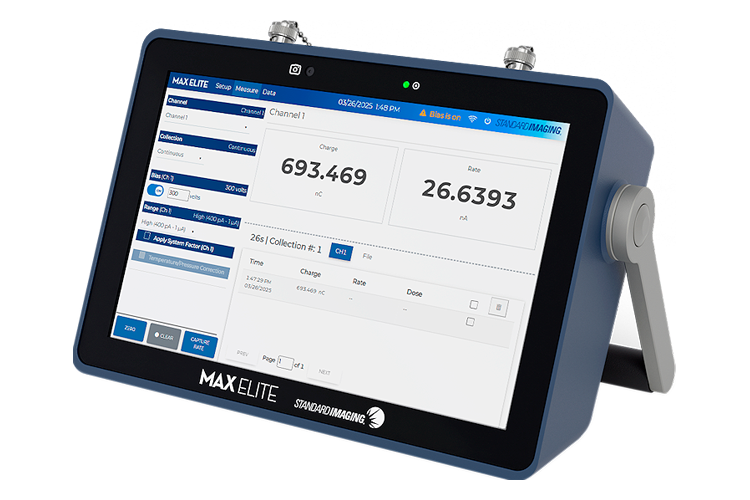

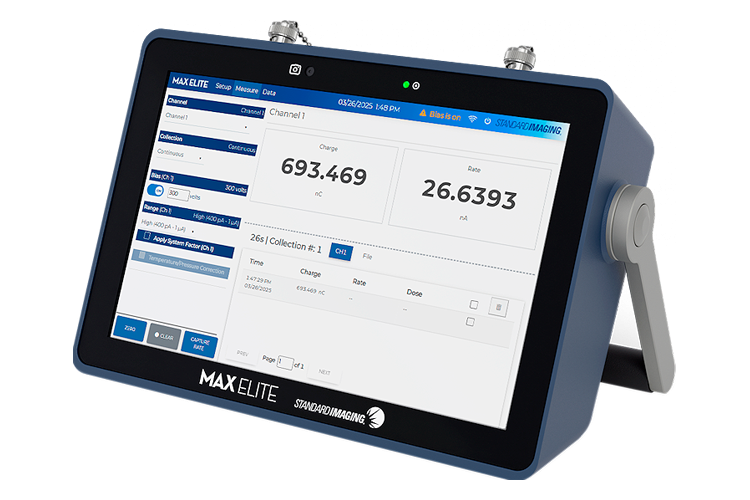

The largest capacitive touch screen on the market delivers quick, responsive touch control—no stylus needed.



Flexibility Redefined

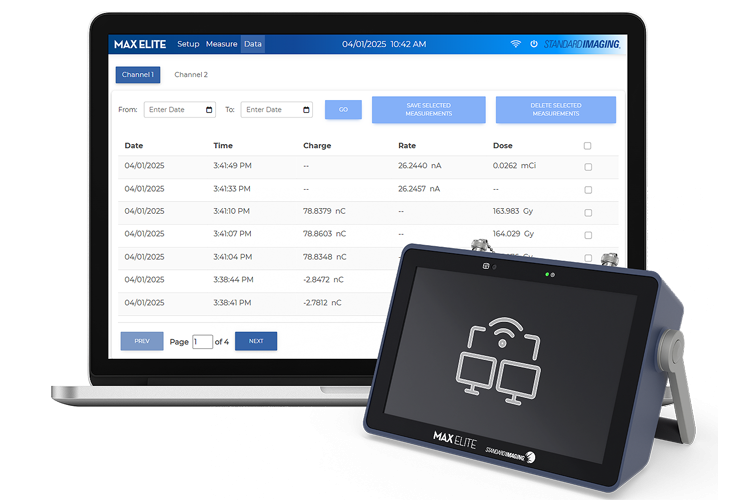

Make use of the remote operation capability or set your optimal screen angle for maximum viewing flexibility.



Available in 4-channel, 2-channel, and 1-channel configurations

  • Intuitive software interface
  • Largest capacitive touch screen on market
  • Remote operation capability
  • Fast-settling and fast-zeroing
  • One minute warm-up
  • Wi-Fi capable



Building the Future

This electrometer isn’t just a device—it's the foundational platform for tomorrow’s advancements. Engineered to integrate new technologies and support emerging therapies, it delivers unmatched precision and flexibility through cutting-edge technology. Unlock new possibilities in care with a tool designed to evolve alongside you.



Calibration Made Smarter

From Data Matrix to Database in Seconds

Say goodbye to manual data entry. The advanced camera system scans the data matrix code (DMC) on your chamber's calibration certificate and instantly auto-fills key detector details—calibration factor, date, name, and serial number—directly into your database.





Key Features

  • Decay calculation utility for check sources
  • Built in pressure sensor
  • Secondary standard reference class electrometer that exceeds both IEC and IPEM performance requirements
  • High precision measurements (0.1 fA resolution in low range)
  • User configurable display precision
  • Remote operation capability*
  • Data matrix reader for chamber calibration information*
  • Extended sensitivity range
    • Low range 400 fA – 1 nA, High range 40 pA to 1 uA current input
  • High bias capability
    • 450 V for 1-channel version
    • 1000 V for 2-channel and 4-channel version

*Not available for the 1-channel version.
