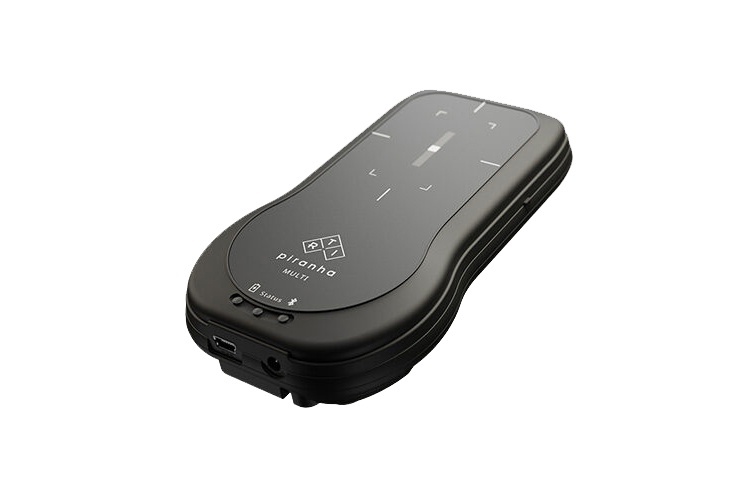

The Piranha MULTI X-ray meter is all you need for qualified diagnostics and QA on Rad/Fluoro, CT, Dental, and Mammography X-ray scans.
Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Customize your measurements and reports with Ocean Next™ software.
Included: RTI Dose Probe (calibrated at 70 kV, W/23 mm Al (R2) – for input dose to image intensifiers, scattered and leakage radiation), 10” Tablet PC, internal rechargeable battery, internal Bluetooth and USB port, USB cable, Ocean Next™ software with Advantage license, power supply, USB Stick, Soft-Shell transport case, and Basic online training.
A complete QA solution
The RTI Piranha MULTI X-ray meter comes ready to use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
Position Check function
The unique feature of the RTI Piranha MULTI X-ray meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Ocean Next™ software
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector position check
Yes
Simultaneous dose measurements
Yes - up to two detectors simultaneously
Use of Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °C – 35 °C
Storage temperature
-10 °c - +50°c
Waveform sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter protection
Yes - main unit, RTI Dose Probe, and RTI T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
The Piranha MULTI X-ray meter is all you need for qualified diagnostics and QA on Rad/Fluoro, CT, Dental, and Mammography X-ray scans.
Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Customize your measurements and reports with Ocean Next™ software.
Included: RTI Dose Probe (calibrated at 70 kV, W/23 mm Al (R2) – for input dose to image intensifiers, scattered and leakage radiation), 10” Tablet PC, internal rechargeable battery, internal Bluetooth and USB port, USB cable, Ocean Next™ software with Advantage license, power supply, USB Stick, Soft-Shell transport case, and Basic online training.
A complete QA solution
The RTI Piranha MULTI X-ray meter comes ready to use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
Position Check function
The unique feature of the RTI Piranha MULTI X-ray meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Ocean Next™ software
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector position check
Yes
Simultaneous dose measurements
Yes - up to two detectors simultaneously
Use of Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °C – 35 °C
Storage temperature
-10 °c - +50°c
Waveform sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter protection
Yes - main unit, RTI Dose Probe, and RTI T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
The Piranha R/F X-ray QA meter is a compact solution for fast and reliable testing covering all your QA requirements.
Presents all parameters instantly and simultaneously for Rad/Fluoro, CT, and Dental. Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Easily customize your measurements and reports with Ocean Next™ software.
Included: RTI Dose Probe (calibrated at 70 kV, W/23 mm Al – for input dose to image intensifiers and scattered and leakage radiation), 10” Tablet PC, internal rechargeable battery, internal Bluetooth and USB port, USB cable, Ocean Next™ software with Advantage license, power supply, USB Stick, Soft-Shell transport case, and Basic online training.
A complete QA solution
The Piranha R/F X-ray meter comes ready to use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
Position Check function
The unique feature of the Piranha R/F X-ray QA meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Ocean Next™ software
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office.
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector Position Check
Yes
Simultaneous Dose Measurements
Yes - up to two detectors simultaneously
Use of Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °c – 35 °c
Storage temperature
-10 °c - +50°c
Waveform Sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter Protection
Yes - main unit, RTI Dose Probe, and T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration Cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
The Piranha CT X-ray QA meter measures and presents all parameters instantly and simultaneously. It measures kVp, Time, Total Filtration, CTDI parameters, dose length product, and presents Waveform.
Several important parameters can also be measured such as CTDI100, CTDIw, CTDIvol, DLP, FWHM, Geometric efficiency, and tube current variations. Choose your Piranha CT with CT Dose Profiler or Ion chamber.
A complete QA solution
The Piranha CT X-ray meter comes ready to use with everything you need. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
Position Check feature
The unique feature of the Piranha CT X-ray meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
CT dose profiles
Use with RTI’s Chamber Adapter, Ion Chamber, and CT Dose Profiler for deep analysis of CT dose profiles.
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector Position Check
Yes
Simultaneous Dose Measurements
Yes - up to two detectors simultaneously
Use of Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °c – 35 °c
Storage temperature
-10 °c - +50°c
Waveform Sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter Protection
Yes - main unit, RTI Dose Probe, and RTI T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration Cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
The Piranha MAMMO X-ray QA meter is all you need to take QA measurements for any 2D or 3D X-ray system in hospitals or mammography clinics.
Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further information. Easily customize your measurements and reports with Ocean Next™ software.
We are proud that all of our mammography solutions comply with the guidelines and requirements of MQSA, EUREF, IAEA, and ACR to ensure safe and high-quality testing.
Included: 10″ Tablet PC, internal rechargeable battery, internal Bluetooth & USB port, USB cable, Ocean Next™ software with Advantage license, Power supply, USB Stick, Soft-Shell transport case, and Basic online training.
A multifunction meter
The Piranha MAMMO X-ray QA meter comes ready to use with everything you need – an all-in-one multifunction meter. Connect to your computer wireless or via USB for a complete QA system.
Position check
The unique feature of the Piranha Mammo X-ray QA meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Ocean Next™ software
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office.
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector Position Check
Yes
Simultaneous Dose Measurements
Yes - up to two detectors simultaneously
Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °c – 35 °c
Storage temperature
-10 °c - +50°c
Waveform Sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter Protection
Yes - main unit, RTI Dose Probe, and RTI T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration Cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments

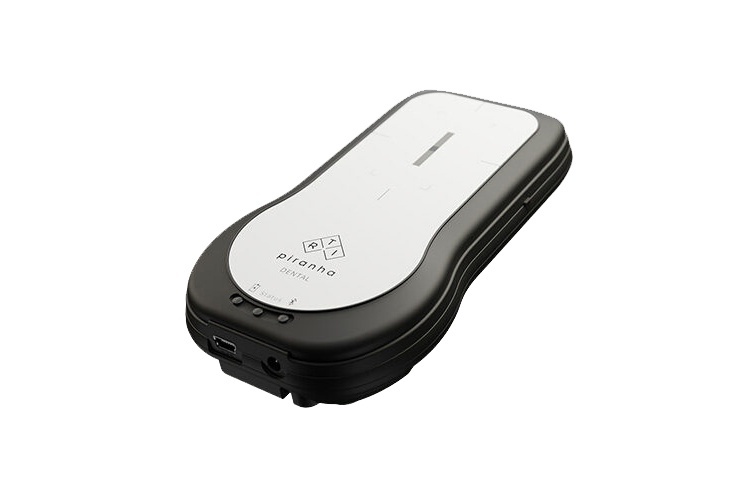

The Piranha Dental X-ray QA meter for dental applications, both Intraoral & Panoramic, as well as CBCT.
Measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, presents Waveform, and much more. See specifications for further details. Easily customize your measurements and reports with Ocean Next™ software.
Included: Panoramic Holder, 10″ Tablet PC, internal rechargeable battery, Internal Bluetooth & USB port, USB cable, Ocean Next™ software with Advantage license, Power supply, USB Stick, Soft-Shell transport case, and Basic online training.
The optimal platform
The Piranha DENTAL X-ray QA meter comes ready to use with everything you need. Connect to your computer and Ocean Next™ software wirelessly or via USB for a complete QA system. Add additional DAP, holders, and probes to match your needs.
Define and save your procedures in Ocean Next™ for a standardized, automated, and reproducible setup – each and every time.
A multifunction dental solution
The Piranha DENTAL is your number one choice when you want a multifunction dental X-ray service and maintenance solution for complete QA. It offers an affordable solution for Dental QA, providing the best practices for Intraoral, Panoramic, and CBCT.
Position Check feature
The unique feature of the Piranha Dental X-ray QA meter makes it possible to check the position of the detector before measuring. By using the Position Check function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector Position Check
Yes
Simultaneous Dose Measurement
Yes - up to two detectors simultaneously
Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °c – 35 °c
Storage temperature
-10 °c - +50°c
Waveform Sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter protection
Yes - main unit, RTI Dose Probe, and RTI T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration Cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments

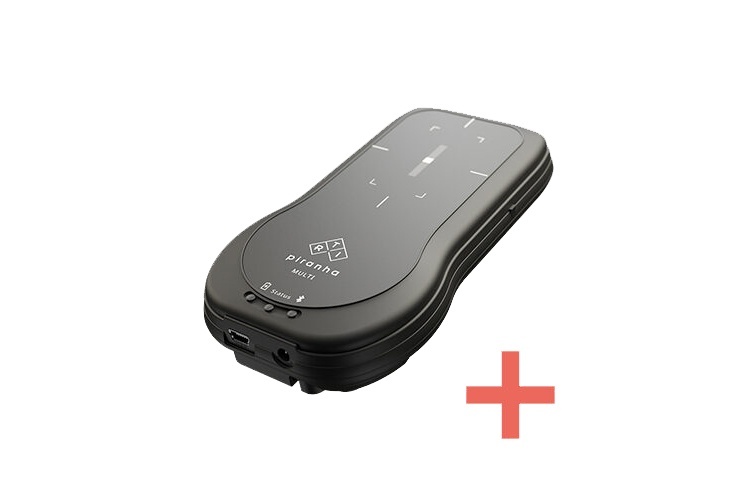

All our Piranha Premium Kits are based on a Piranha MULTI along with a number of its probes and accessories, well-organized and safely stored in a robust, aluminum case. All our Piranha Premium kits are available at a discounted price.
The Piranha Premium Kit MULTI with associated probes is all you need for qualified diagnostics. Bring your case to any Rad/Fluoro, CT, Dental, and Mammography X-ray unit and perform your work without missing any item. It measures kVp, Time, HVL, Total Filtration, Dose, Dose rate, and presents Waveform.
A complete QA solution
Get your favorite holders and probes neatly packaged in a case. Connect your system to your computer wirelessly or via USB and you have a complete QA solution.
Wide range of probes & accessories
DAP, holders, CT Ion Chamber, CTDP, Light Probe together with Ocean Next™ software.
Ocean Next™ software
Its compatibility with our Ocean Next™ software provides quick and repeatable QA work. Ocean can perform instant real-time analysis during your measurements. Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office.
Size
133 x 75 x 26 mm
Weight
Approx. 400 g
Display
PC or Windows Tablet
Software
Ocean Next™ software for X-ray QA
Database support
Yes
Interface type
Built-in Bluetooth and USB
Detector Position Check
Yes
Simultaneous Dose Measurement
Yes - up to two detectors simultaneously
Dose Detector with Active AEC
Yes - RTI Dose Probe or RTI T20
Bluetooth range
100 m free-in-air
USB cables
Included
Power source
Rechargeable Li ion battery / Ext. power supply
Battery life
Approx. 15 hours
Battery tested
According to UN 38.3
No. of exposures needed
One
Min. exposure time
0.1 ms
Memory
Unlimited
Operating temperature
15 °c – 35 °C
Storage temperature
-10 °C - +50°C
Waveform sampling rate
4 – 2000 samples/s
Waveform recording time
1024 ms – 524 s
Backscatter Protection
Yes - main unit, RTI Dose Probe, and RTI T20
Warranty
Two years
Extended Warranty
Up to ten years
Calibration Cycle
Two years
Standard
Complies with relevant parts of the standards IEC 61674 and IEC 61676 for Dosimetric instruments
