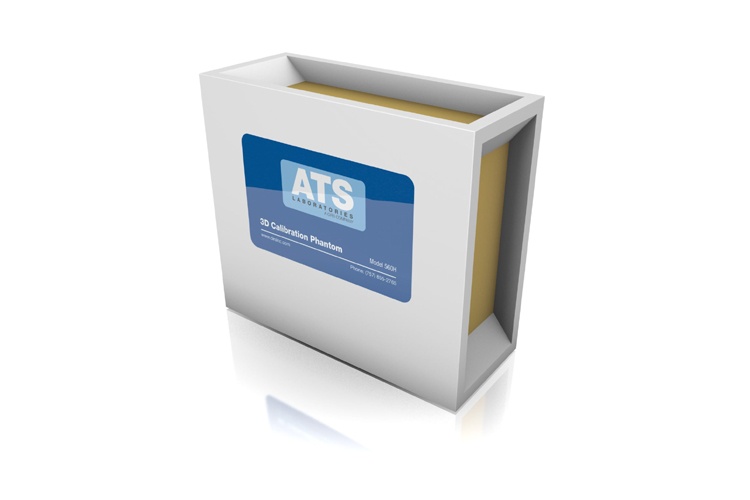

3D Calibration Phantom

ats_560h-750x500
  Evaluate Image System Performance The Model ATS 560H rubber-based, tissue-mimicking phantom provides a basic means of evaluating an imaging system’s performance along with its 3D volumetric measurements. The phantom combines monofilament line targets, six non-echogenic cylindrical targets of va ...Read more



  • Description
  • Specifications



Evaluate Image System Performance

The Model ATS 560H rubber-based, tissue-mimicking phantom provides a basic means of evaluating an imaging system’s performance along with its 3D volumetric measurements.

The phantom combines monofilament line targets, six non-echogenic cylindrical targets of varying sizes and a 3D egg-shaped target structure. The monofilament targets have a diameter of 0.12 mm and are arranged in four groups of line targets to evaluate the vertical and horizontal calibration measurements, axial-lateral resolution and the dead zone.



Performance measures:

  • Uniformity
  • Depth of Penetration
  • Beam Profile/ Focal Zone/ Lateral Response Width
  • Vertical Distance Measurement
  • Horizontal Distance Measurement
  • Axial and Lateral Resolution
  • Contrast Resolution
  • Volume Measurements
  • Dead Zone Assessment





Dimensions 23.4 cm x 20.5 x 9.5 cm
Weight 3.1 kg
Housing Material PVC
Scan Surface Dimensions (2) 17 x 8 cm; (2) 19 x 8 cm
Tissue-Mimicking Material Urethane Rubber
Urethane Properties Freezing Point: -40° C
Melting Point: Above 100° C
Speed of Sound: 1450 m/s at 23°
Attenuation: 0.5 dB/cm/MHz (measured at 3.5 MHz)
Line Targets  Material: Monofilament nylon
Diameter: 0.12 mm

Model ATS 560H Includes
1x 3D Calibration Phantom
1x User Guide
1x Certificate of Compliance



Vertical Distance Group (17 targets)

  • Depth range 1 - 18 cm
  • Spacing 1 cm

Horizontal Distance Group (2 groups)

  • Number of targets 2
  • Depths 5 cm from scanning surfaces 1 & 3
  • Number of targets 10
  • Spacing 2 cm

Dead Zone Group (9 targets)

  • Lateral displacement 5 mm
  • Depth range 2 - 10 mm
  • Spacing 1 mm

Axial and Lateral Resolution Groups (6 targets)

  • Lateral displacement 1 mm
  • Spacing 5, 4, 3, 2 & 1mm
  • Axial depth 5.5 & 12.5 cm
  • Lateral depth 5.5 & 14 cm

Anechoic Stepped Cylinders (6 targets)

  • Type Non-echogenic, cylindrical
  • Diameter 4, 8, 10 mm
  • Depth 3, 5, 12, 15 cm
  • Spacing 1 cm

3D Egg Test Object

  • Type Echogenic, 3D ellipsoid
  • Major axis 7 cm
  • Minor axis 5 cm
  • Volume 91.6 cm3
