Doppler String Phantom

model_043a-750x500

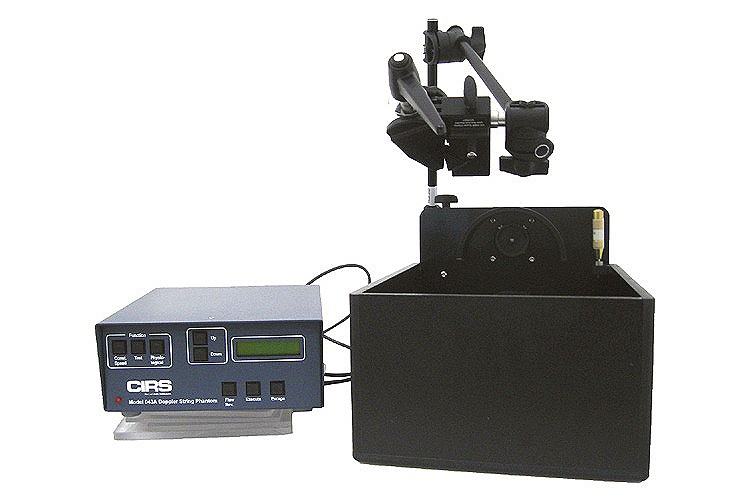

  Accurately Simulate Physiological and Test Waveforms The Model 043A Doppler String Phantom is an essential tool for Doppler Ultrasound. Its crystal controlled motor accurately generates 16 pre-programmed waveforms using advanced string target technology. Since speed is adjusted 1,000 times per s ...Read more



  • Description
  • Specifications



Accurately Simulate Physiological and Test Waveforms

The Model 043A Doppler String Phantom is an essential tool for Doppler Ultrasound. Its crystal controlled motor accurately generates 16 pre-programmed waveforms using advanced string target technology. Since speed is adjusted 1,000 times per second, you can be confident in its precision and repeatability.

Our Model 043A can be set for use with water or velocity-corrected fluid. When using water, it adjusts the string speed accordingly so varying speeds of sound in water won’t affect your tests. Unlike fluid-flow phantoms, the target never changes; you know what your test results should be every time.

The Model 043A includes a user’s manual and a rugged carrying case. Additional options include custom programming of special waveforms.





Dimensions Tank - 35.6 x 25.4 x 22.9 cm
Box - 22.9 cm x 20.3 cm x 10.2 cm
Weight 7.7 kg
Digital Display Waveform readout, string speed, help statements and instructions, and computer host information
Flow Simulation Speeds 10 to 400 centimeters per second, bidirectional
Speed Drift Crystal-locked to 20 parts per million (0.002%)
Accuracy ± 1% of stated speed
Pulsatile Waveforms 16 pre-programmed and optional customer specified
Included Waveforms Adult common carotid, stenotic carotid, femoral, aortic. Fetal middle cerebral  artery, renal artery, umbilical artery.
Pediatric descending thoracic artery, patent ductus arteriosus.
Test waveforms: Sine waves with peak speeds of 100, 150, and 200 cm/second.
Triangle waves with peak speeds of 100, 150, and 200 cm/second.
Stepped ramp wave with stops at 0, 20, 40, 60, 80, and 100 cm/sec.
Waveform Resolution Each waveform simulation contains 1000 points of resolution, or speed adjustments, enabling extremely complex simulation
Computer Interface Industry standard USB interface built-in for future enhancements and remote control. Very useful for automated quality control in a manufacturing environment
Fluids Used in Tank Plain tap water (velocity 1480 m/second at 20° C) or velocity corrected water/ glycol solution giving 1540 m/second at 20° C. Phantom adjusts itself for either fluid
Physical Specifications 95-260 V AC, 50/60 Hz
Total weight in travel case: 10 kg
Travel case dimensions: 25 cm x 19.5 cm x 14 cm

Model 043 Includes
1x Doppler String Phantom
1x Carry case
1x User guide

Optional Accessories
043-C Step Down Transformer (220V)
043SL Replacement performed string loop (pack of 20)
