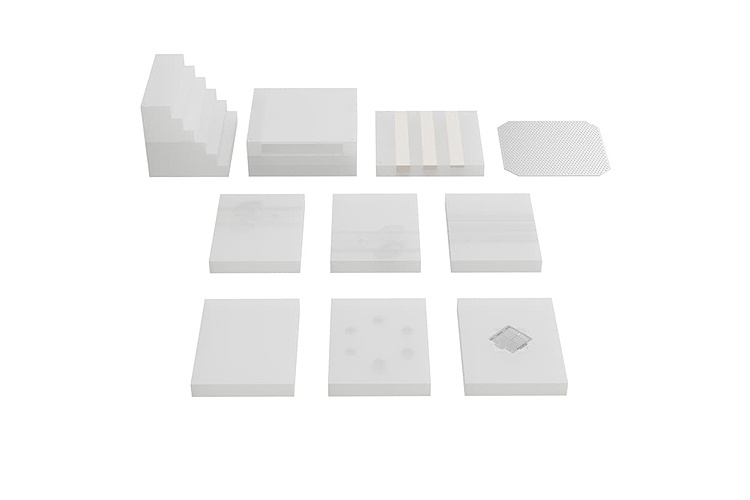

This Digital Subtraction Angiography (DSA) Phantom follows the recommendation in Report No. 15 by the AAPM (American Association of Physicists in Medicine) - Digital Radiology / Fluorography Task Group of the Diagnostic X-Ray Imaging Committee. Phantom is designed to evaluate digital functions of DSA systems and can be used to check: contrast range, resolution, linearity, uniformity, amplifier dynamic range,registration accuracy and subtraction effectiveness. Its modular construction allows setting up the desired test configuration in a very easy and accurate manner.
| Technical data: | |
 |
Section I and II Step Wedge module, 6 step wedges (each 25.4 mm high) to test dynamic range. Can be folded into 203.2 x 203.2 x 76.5 mm solid block. |
 |
Section III Slot block with a space to fit other test modules. |
 |
Registration plate Made of aluminium with an array of 3.18 mm holes. |
 |
Bone section With three PTFE strips 25 mm in width and 5, 10 and 15 mm in thickness. |
 |

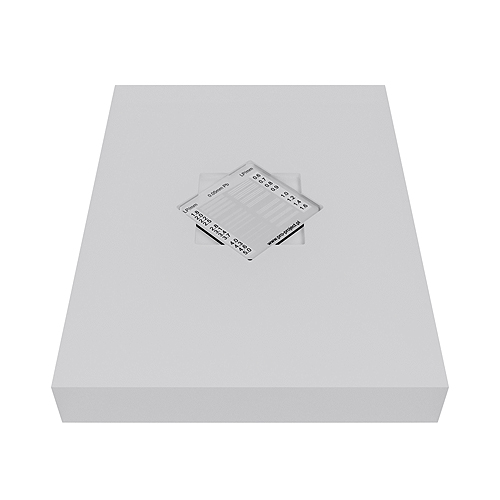

High Contrast Resolution Section Containing pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm). |
 |
Blank insert Used with other modules forms a mask plate. |
 |
Linearity Insert Contains 6 iodine areas (19 mm diameter) of different iodine thickness and concentration: 0.5, 1.0, 2.0, 4.0, 10.0 and 20.0 mg/cm². |
 |

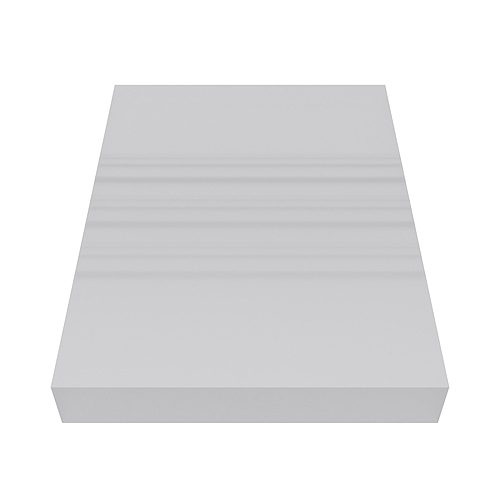

Low Contrast Artery Insert Containing 3 sets of analogue blood vessel group (diameters 0.5, 1.0, 2,0 and 4.0 mm), each vessels group includes different iodine concentrations: 2.5, 5.0 and 10.0 mg/cc. |
 |
150 mg/ml Iodine Artery Insert 3 sets of analogue blood arteries (thickness 1.0, 2.0, 4.0 mm) each includes arteriarctial and arterial aneurysm whose sizes are 1/4, 1/2 and 3/4 of artery diameter. |
 |

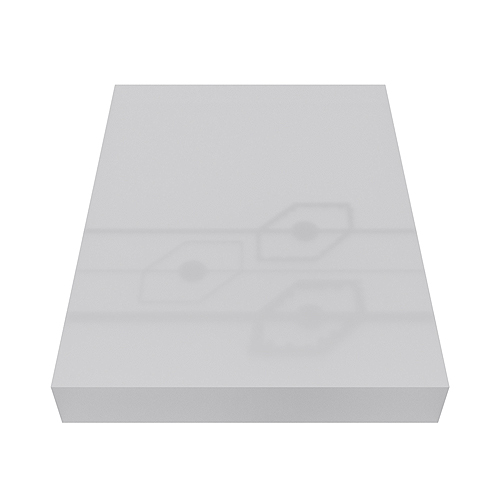

300 mg/ml Iodine Artery Insert 3 sets of analogue blood arteries (thickness 1.0, 2.0, 4.0 mm) each includes arteriarctia and arterial aneurysm whose sizes are 1/4, 1/2 and 3/4 of artery diameter. |
 |
Carrying Case |
|
