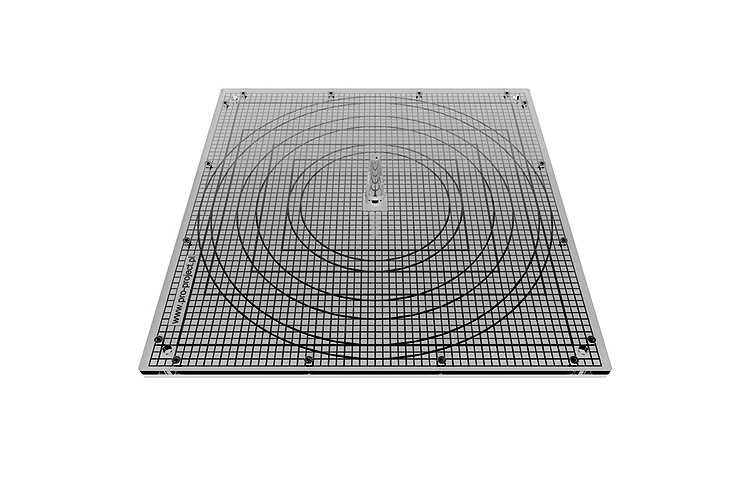

Pro-RF AlphaG

pro-rf_alphag_750x500
  The Pro-AlphaG phantom is a simple tool to check geometry of the R/F system: collimation / beam alignment, position and size of the effective radiation field.   Technical data: Dimensions: 308 x 308 x 11 mm Lead mesh pattern (5 mm scale) engraved in PMMA plate secured with transparent cover ...Read more



  • Description
  • Specifications



The Pro-AlphaG phantom is a simple tool to check geometry of the R/F system: collimation / beam alignment, position and size of the effective radiation field.



Technical data:

  • Dimensions: 308 x 308 x 11 mm
  • Lead mesh pattern (5 mm scale) engraved in PMMA plate secured with transparent cover
  • Markings to determine the size and position of the effective radiation field
  • Cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°





Product features:

  • Complies with:
    • IEC 61223-3-1
    • DIN 6868/3 and DIN 6868/4
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
