We offer a wide range of test patterns for two and three dimensional resolution evaluation. As we do not depend on other companies and each pattern is developed and manufactured in-house, we can prepare all combination of shapes, layouts, templates and materials for you. Our cutting-edge technology allows us to obtain unmatched precision and resolution range in many types of materials.
We present here only our standard test patterns. If you need something else, please contact us.
Dental Resolution Patterns
|
 |
Pro-Res Dent Intra (05-301)
- Lead thickness: 0.05 mm
- Resolution range: 4.0 - 8.0 LP/mm
- Number of groups: 7
- Bars per group: 3
- Size: 16 x 32 mm
|
 |
Pro-Res Dent OPG (05-302)
- Lead thickness: 0.05 mm
- Resolution range: 1.6 - 3.0 LP/mm
- Number of groups: 7
- Bars per group: 3
- Size: 17 x 31 mm
|
| |
|
Radiography Resolution Patterns
|
 |

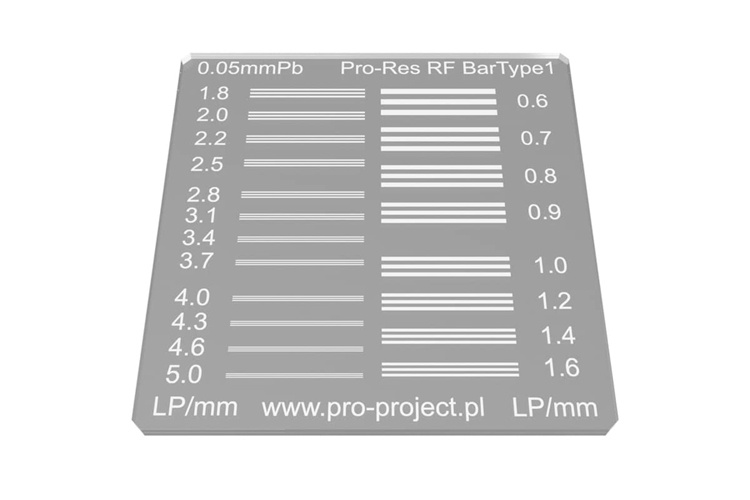

Pro-Res RF BarType 1 (05-401)
- Lead thickness: 0.05 mm
- Resolution range: 0.6 - 5.0 LP/mm
- Number of groups: 20
- Bars per group: 3
- Size: 50 x 50 mm
|
 |
Pro-Res RF BarType 2 (05-402)
- Lead thickness: 0.1 mm
- Resolution range: 0.5 - 5.0 LP/mm
- Number of groups: 21
- Bars per group: 5
- Size: 57 x 47 mm
|
 |
Pro-Res RF BarType 3 (05-403)
- Lead thickness: 0.05 mm
- Resolution range: 0.5 - 14.3 LP/mm
- Number of groups: 30
- Bars per group: 5
- Size: 57 x 47 mm
|
 |
Pro-Res RF BarType 4 (05-404)
- Lead thickness: 0.1 mm
- Resolution range: 1.0 - 4.86 LP/mm
- Number of groups: 16
- Bars per group: 5
- Size: 110 x 40 mm
|
 |
Pro-Res RF BarType 5 (05-408)
- Lead thickness: 0.01 mm
- Resolution range: 0.6 - 5.0 LP/mm
- Number of groups: 20
- Bars per group: 3
- Size: 50 x 50 mm
|
 |
Pro-Res RF BarType 6 (05-410)
- Lead thickness: 0.05 mm
- Resolution range: 0.5 - 5.0 LP/mm
- Number of groups: 21
- Bars per group: 5
- Size: 57 x 47 mm
|
 |
Pro-Res RF BarType 7 (05-411)
- Lead thickness: 0.05 mm
- Resolution range: 0.5 - 10.0 LP/mm
- Number of groups: 27
- Bars per group: 5
- Size: 57 x 47 mm
|
 |
Pro-Res RF BarType 8 (05-412)
- Lead thickness: 0.03 mm
- Resolution range: 0.5 - 14.3 LP/mm
- Number of groups: 30
- Bars per group: 5
- Size: 57 x 47 mm
|
 |
Pro-Res RF BarType 9 (05-413)
- Lead thickness: 0.03 mm
- Resolution range: 0.5 - 20.0 LP/mm
- Number of groups: 33
- Bars per group: 5
- Size: 57 x 47 mm
|
 |
Pro-Res RF MeshType
- Standard wire meshes from 16 to 150
- Different sizes
- Different graduations
- Diamater: 20 mm
|
 |
Pro-Res RF ConeType 1 (05-406)
- Resolution range: 1.0 - 10.0 LP/mm
- Lead thickness: Pb 0.05 mm
- Number of groups: 1
- Size: 80 x 40 mm
|
 |
Pro-Res RF ConeType 2 (05-407)
- Resolution range: 0.5 - 5.0 LP/mm
- Lead thickness: Pb 0.1 mm
- Number of groups: 1
- Size: 150 x 50 mm
|
 |
Pro-Res RF MultiBarType 1 (05-409)
- Resolution range: 0.6 - 3.4 LP/mm
- Lead thickness: Pb 0.1 mm
- Number of groups: 2x 15 groups
- Size: 50 x 50 mm
|
| |
|
Computed Tomography Resolution Patterns
|
 |
Pro-Res CT SandwichType
- Aluminium bars
- Different sheet sizes
- Standard resolution range: 1.0 - 30.0 LP/cm
|
 |
Pro-Res CT HolesType
- Air thru holes
- Different hole diameters
- Standard diameters range: 0.4 - 1.75 mm
|
| |
|
MRI Resolution Patterns
|
 |
Pro-Res MRI HolesType
- Thru holes
- Different hole diameters
- Standard diameters range: 0.8 - 1.1 mm
|
| |
|
Mammography Resolution Patterns
|
 |
Pro-Res MAM ConeType (05-501)
- Lead thickness: 0.03 mm
- Resolution range: 1.5 - 20.0 LP/mm
- Size: 26 x 60 mm
|
 |
Pro-Res MAM BarType 1 (05-502)
- Lead thickness: 0.02 mm
- Resolution range: 5.0 - 20.0 LP/mm
- Number of groups: 13
- Bars per group: 5
- Size: 10 x 25 mm
|
| |
|
Modulation Transfer Function Measurement Patterns
|
 |
Pro-Res MTF 1 (05-405)
- Lead thickness: 0.05 mm
- Resolution range: 0.25 - 10.0 LP/mm
- Number of groups: 22
- Resolutions: 0.25, 0.5, 0.6, 0.7, 0.85, 1.0, 1.2, 1.4, 1.7, 2.0, 2.4, 2.9, 3.5, 4.2, 5.0, 6.0, 7.0, 8.5, 10.0, 8.5, 7.0, 6.0 LP/mm
- Size: 71 x 44 mm
|
