The PET scatter phantom is an acceptance testing tool used to determine the imaging systems relative sensitivity to scatter radiation. It can be used to measure the effects of dead-time and the effects of random events generated at different levels of activity of the line source.

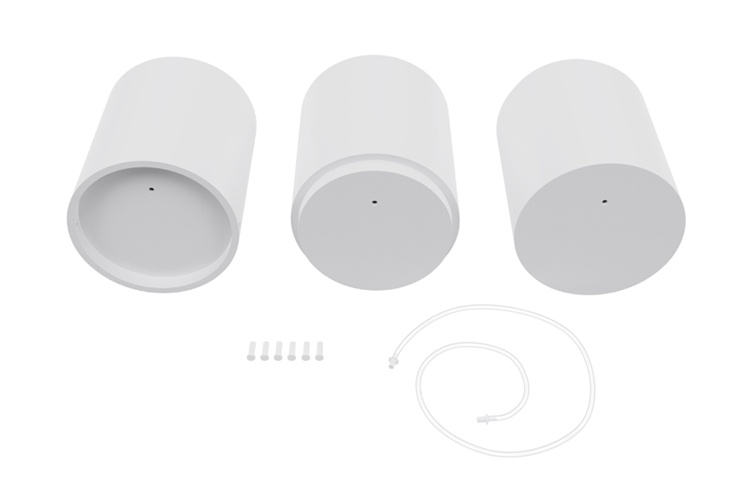

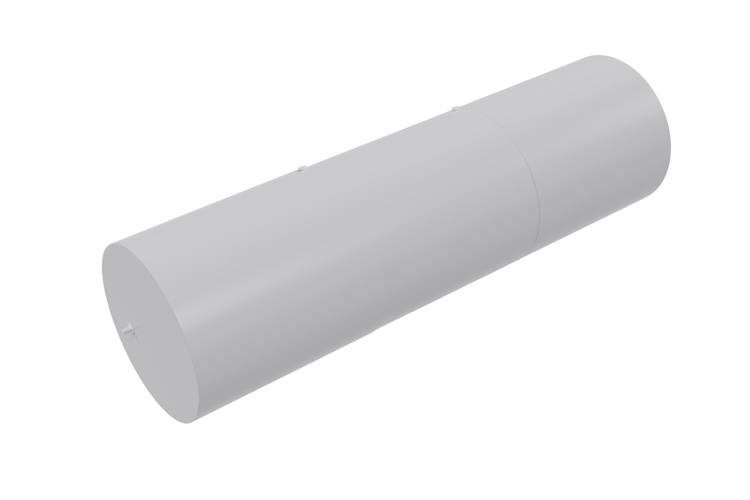

The test phantom is a right circular cylinder composed of polyethylene. For ease of handling, it consists of 3 segments that are assembled together during testing. A hole is drilled parallel to the central axis of the cylinder, at a radial distance of 45 mm.
Technical data:
- Cylinder
- Outside diameter: 203 mm
- Length: 700 mm
- Hole diameter: 6.4 mm
- Hole offset from the central axis: 45 mm
- Line source
- Outside diameter: 4.8 mm
- Length: 800 mm
- Inside diameter: 3.2 mm
- Carrying case
|
Product features:
|
