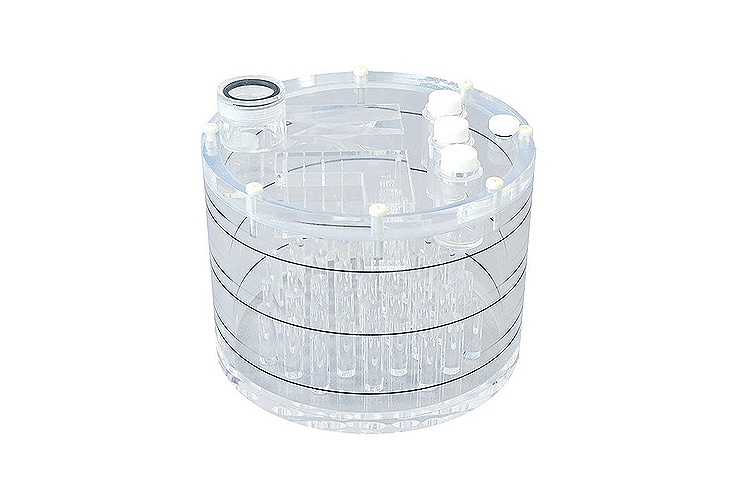

QA Phantom JMR II

mri-qa_01_750x500
mri-qa_01_750x500mri-qa_02_750x500
  This QA phantom for MRI allows to evaluate the slice thickness, spatial resolution, uniformity and geometric distortion as well as contrast.The Uniformity is maintained under the high magnetic field of 3.0 Tesla. The Uniformity provides high precision evaluation for other parameters.There are two ...Read more



  • Description
  • Specifications



This QA phantom for MRI allows to evaluate the slice thickness, spatial resolution, uniformity and geometric distortion as well as contrast.
The Uniformity is maintained under the high magnetic field of 3.0 Tesla. The Uniformity provides high precision evaluation for other parameters.
There are two types of this phantom.



This phantom offers the following evaluation parameters:

  • Signal to Noise ratio (SNR)
  • Image Uniformity
  • Slice Thickness
  • Spatial resolution
  • Geometric distortion
  • Ghost artifact
  • Image contrast





Features 1. Uniformity is maintained under the high magnetic field of 3.1 Tesla
2. Uniformity provides high precision evaluation for other parameters
Training skills / Applications Signal noise ratio (SNR) / Image uniformity / Slice thickness / Spatial resolution / Geometric distortion / Ghost / Image contrast

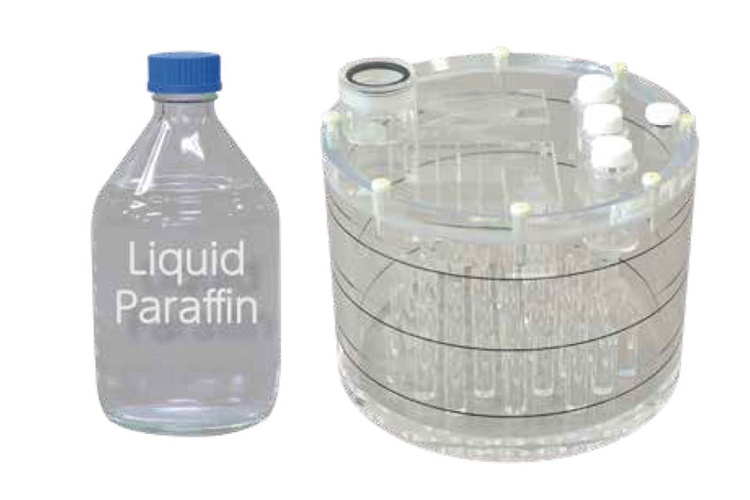

Set includes 1 phantom unit A / 1 phantom unit B / 1 liquid paraffin / 1 spout / 3 NiCl 50ml (5, 10, 15 mmol) / 3 sample bottle (9 ml) / 1 funnel / 1 petroleum jelly / 1 screwdriver / 1 extra screws / 1 storage case / manual
Size (approx.) 18 dia. x 13(H)cm / 7.1dia. x 5.1inch
Materials Acrylic resin
