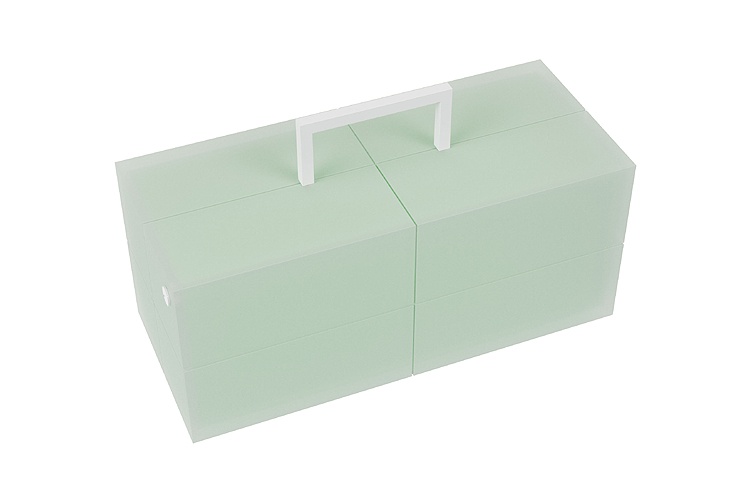

SpineRect Phantom

pro-mri_spinerect_750x500
  Rectangular MRI phantom simulating attenuation of the human spine.   Technical data: Inner dimensions: 372 mm x 150 mm x 148 mm Made of PMMA Filled with nickel chloride and sodium chloride solution Markings on the surface to show middle axes of the phantom Carrying handles for easy trans ...Read more



  • Description
  • Specifications



Rectangular MRI phantom simulating attenuation of the human spine.



Technical data:

  • Inner dimensions: 372 mm x 150 mm x 148 mm
  • Made of PMMA
  • Filled with nickel chloride and sodium chloride solution
  • Markings on the surface to show middle axes of the phantom
  • Carrying handles for easy transportation





Product features:

  • Complies with:
    • ACR MRI Accreditation Program
    • IPEM Report 80 “Quality Control in MRI”, 1998
    • AAPM Rep. 28 “Quality Assurance methods & phantoms for MRI”, 1990
    • AAPM Rep. 34 “Acceptance testing of MRI systems”, 1992
    • AAPM Rep. 100 “Acceptance & Quality Assurance procedures for MRI facilities”, 2010
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
