Pro-Dent CT 161

pro-dent_ct_161_750x500
pro-dent_ct_161_750x500pro-dent_ct_161_disassembly_750x500
  Phantom for acceptance and constancy testing of 3D function of dental Cone-Beam CT, Dental Volume Tomography (DVT) and 3D imaging devices according to DIN 6868-161 and QS-RL.   Technical data: Diameter: 160 mm 20 mm thick main module containing: Test object containing equivalents of air, ...Read more



  • Description
  • Specifications



Phantom for acceptance and constancy testing of 3D function of dental Cone-Beam CT, Dental Volume Tomography (DVT) and 3D imaging devices according to DIN 6868-161 and QS-RL.



Technical data:

  • Diameter: 160 mm

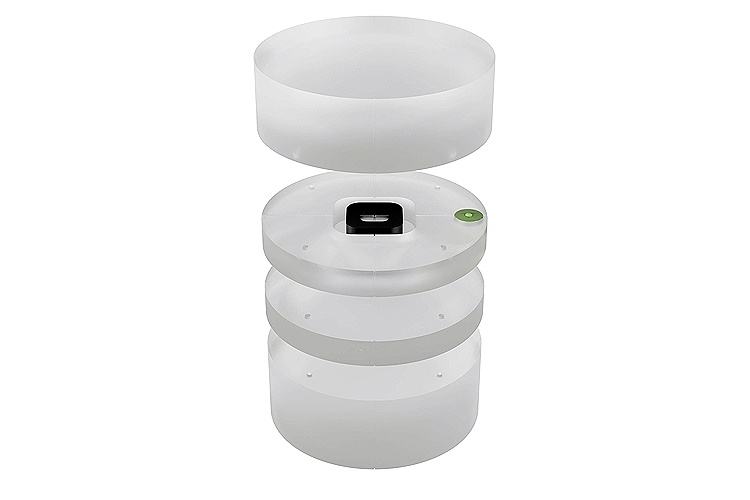

  • 20 mm thick main module containing:
    • Test object containing equivalents of air, soft tissue and bone
    • Positioning markers
    • Bubble level
  • 20 mm, 50 mm and 60 mm thick PMMA modules with positioning aids
  • Test stand with a table for placing the phantom in the test position
  • Convenient, portable case for storing and transporting the phantom





Product features:

  • Complies with:
    • Radiation Protection no 172 report by the SEDENTEXCT
    • IEC 61223-3-4 and IEC 61223-3-5
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
