Multi-Energy CT Quality Assurance Phantom

Model TR-J - Standard Size
  Water Equivalent Material, various inserts and empty bottles enable to verify the appropriate Multi-Energy CT settings   Multi-Energy CT (MECT) or Dual Energy CT (DECT) is a new frontier of rapidly advancing medical imaging, and now entering clinical practices in hospitals.The technology enable ...Read more

Multi-Energy QA Phantom


  • Description
  • Specifications



Water Equivalent Material, various inserts and empty bottles enable to verify the appropriate Multi-Energy CT settings



Multi-Energy CT (MECT) or Dual Energy CT (DECT) is a new frontier of rapidly advancing medical imaging, and now entering clinical practices in hospitals.The technology enables material differentiation, elemental decomposition and material quantification. Such features are expected to bring us better diagnosis, improved image quality, reduction of radiation exposure, reduction of contrast agent volume and opens possibility of functional imaging.

Meanwhile, further studies are awaited in various field such as quality management of CT equipment, verification of protocols, expansion of clinical application, to derive the maximum benefits from the technology.

Applications

Study for

  • ME-CT image analysis protocol
  • Metal artifact reduction
  • Reduction of contrast media



Evaluation Parameters

  • Uniformity
  • Signal-to-noise ratio (SNR)
  • Image contrast
  • CT dose index (CTDI)

FEATURES

  • Phantom using innovative Aqua Slab (Water Equivalent Material)
  • CTDI measurement
  • Metal artifact reduction
  • Two different sizes of body (TR-I, TR-J)


Aqua Slab



Aqua Slab (Water Equivalent Material)

Aqua Slab has high equivalency to water in diagnostic energy ranges(40-190KeV)

Experiment

  • Methods: Place the materials inserts on water tank (Materials: Aqua Slab / soft tissue / tough water / polyurethane / adipose tissue)
  • CT images: Rods are not shown in the CT images
    • (above) Aqua Slab: Nine rods of WEM are "invisible" under CT
    • (below) conventional materials: Two rods of Aqua Slab and for conventional water, adipose and soft tissue equivalent material, and polyurethane
  • Result: Aqua Slab has high equivalency to water

Supports iodine quantification and materialde composition

Unlike conventional "water substitute" materials the Water Equivalent Material maintain water equivalency under low energy range. This feature support studies that involve iodine quantification.



Save time and trouble for study and expand possibilities

Save time, costs and efforts to design and produce custom acrylic water phantoms.
Unlike water phantoms, phantoms with solid materials reduce the troublesome process to change water and inside rods.





Features 1.Phantom using innovative Water Equivalent Material / 2.Empty bottles enable to put various items and check how they / 3.react to Multi Energy/ 4.Save time and efforts to produce custom-made water phantoms / 5.Two different sizes of body. (TR-I, TR-J)
Training skills / Applications ME-CT image analysis protocol / Metal artifact reduction / Reduction of contrast media

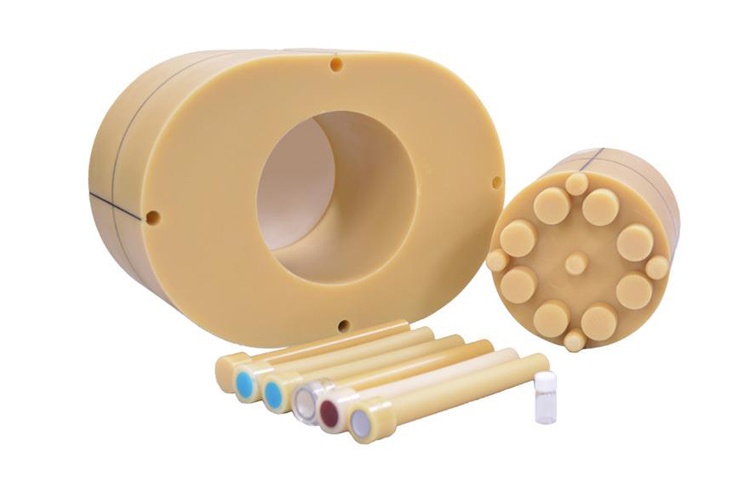

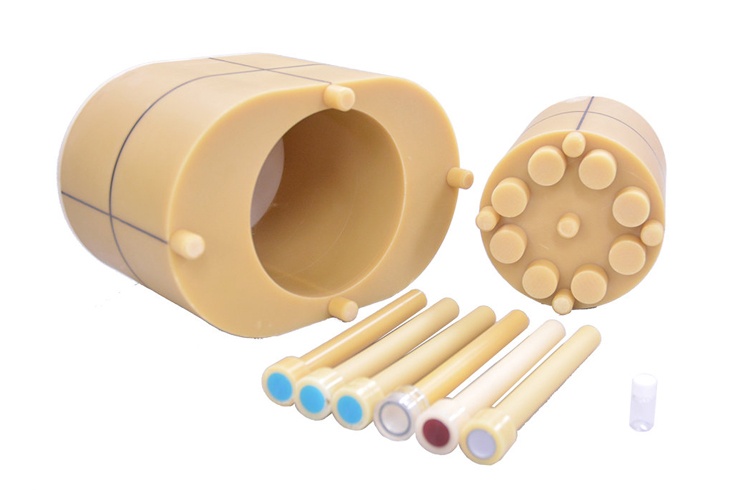

Set includes 1 truck phantom / 1 internal cylindrical phantom / 9 filling rods for dosimeter holes / 8 WEM inserts / 3 iodine inserts (4, 8, 12mgl/mL) / 1 titanium insert / 1 soft tissue insert / 1 water container insert/ 20 empty sample bottle / 8 spacers for sample bottle / manual
Size (approx.) [TR-J] Ｗ30×D18×H20cm
Packing size (approx.) W44 x D36 x H42cm / W17.3 x D14.2 x H16.5in
Weight (approx.) TR:J/15.5kg,
Packing weight (approx.) W30.0 x D20.0 x H18.0cm/W11.8 x D7.9 x H7.1 in
Materials Polyurethane
Optional parts Angle adjustment holder
Dimensions
