Mako Modules

Designed for modern X-ray equipment

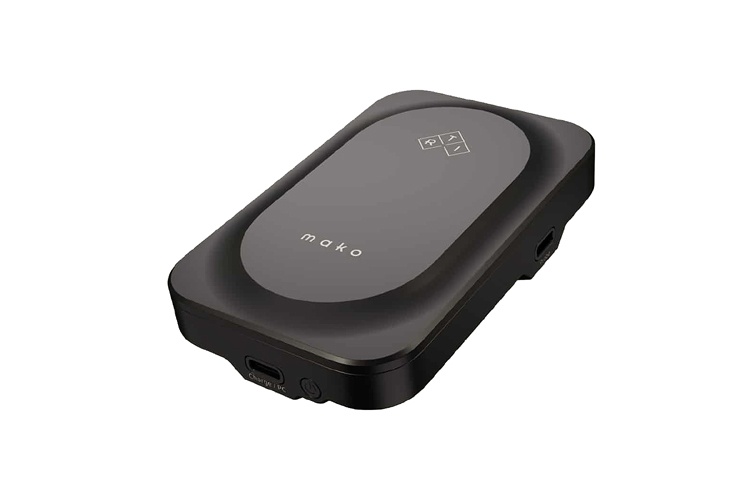

Mako is meticulously designed and adjustable to your precise requirements. Combine Mako Base Unit with our probes and modules and Ocean Next software, to empower you with the most versatile, accurate, and convenient tools on the market.
Mako is also your comprehensive solution for non-invasive mAs (MAS-2) and DAP chamber applications.
Mako is not just a tool; it’s your complete tool belt.

Mako Base Unit is not sold separately.

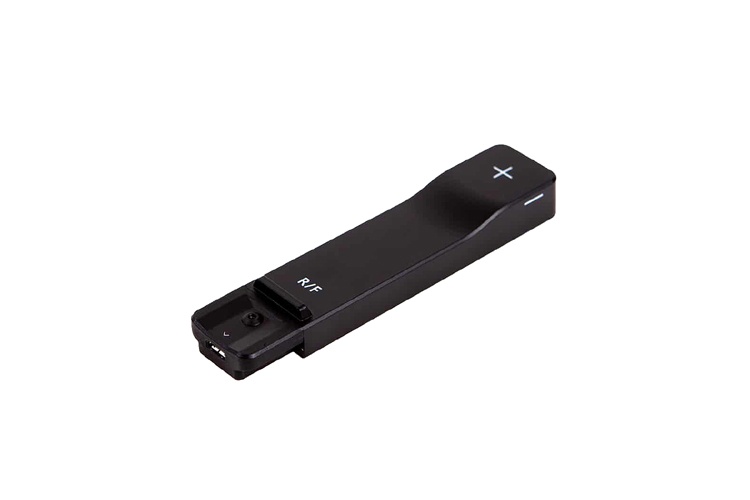

Buckey sized and cable free

The groundbreaking new Mako R/F Probe offers industry-leading accuracy (±1.5 % kV measurement uncertainty) and sensitivity from lowest to highest dose rates. The unique design provides a no-fuss experience, with simple setup in the X-ray beam, flexible connection to the Mako Base Unit and a low radiological footprint, perfect for measurement without affecting the AEC.

Mako R/F Probe is not sold separately.

The ultimate dental tool.

The immaculate new Mako Dental Probe offers the ultimate test tool in Dental X-ray applications, with best-in-class accuracy (±1.5 % kV) and advanced detector design. The probe is perfectly designed for CBCT and intraoral applications, in addition to panoramic dental measurements, featuring a 0.9 mm detector for full irradiation in narrow-beam X-ray fields.

Mako Dental Probe is not sold separately.

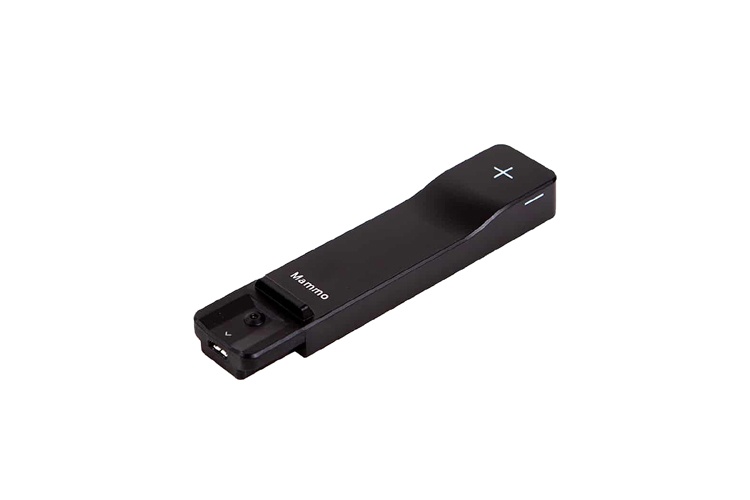

Best-in-class accuracy

The revolutionary new Mako Mammo Probe offers best-in-class accuracy (±1.5 % or 0.5kV) and performance, covering the full clinical kV range from 18-49kV, without the need to change probe above 40kV (unique in the market). The Mako Mammo Probe has been designed for ultimate performance across all Mammography systems, including the latest beam qualities with Titanium filters.

Mako Mammo Probe is not sold separately.

Seamless use of probes

The Mako Legacy Module connects the current range of Piranha and Cobia probes to the Mako System. It allows seamless use of your current favorite probes. The well-known RTI CT Dose Profiler and RTI Light Probe connect to the Mako System via the Mako Legacy Module.

Mako Legacy Module is not sold separately.

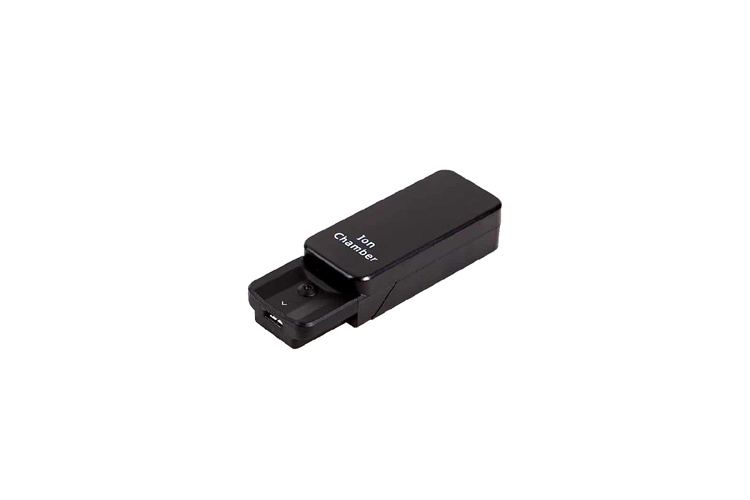

Connecting ion chambers

The Mako Ion Chamber Module connects a variety of Ion Chambers (such as CT Ion Chambers, DAP Chamber and Ion Chamber Magna 1cc) to the Mako System. Automatic temperature and pressure compensation is provided, meaning no fuss with settings to complete the measurement.

Mako Ion Chamber Module is not sold separately.

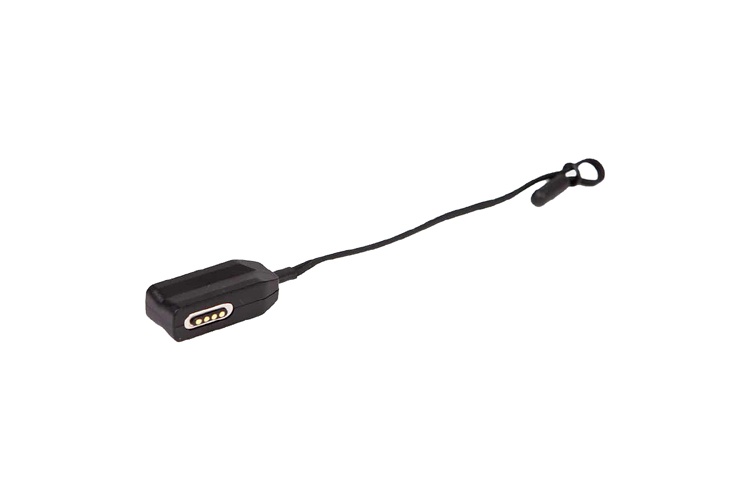

Connect it to any Ion Chamber

The PI Dongle is used together with any Ion Chamber (CT Chamber, DAP Chamber, Magna Chamber …) to be connected to the Mako system (using the Ion Chamber Module).
The PI dongle contains all information about the chamber; serial number, type, calibration factors, calibration date and more …
The dongle is used together with the Ion Chamber Module to compensate for both temperature and pressure, thus improving all Ion Chamber measurements.
One dongle is needed for each Ion Chamber.

All Ion Chambers from RTI now come in two versions: one for Piranha & Cobia and one for Mako.
In the Mako versions, the PI Dongle is included and attached to the Ion Chamber cable.
The PI Dongle is also preprogrammed with all chamber info.

Customers with existing Ion Chamber must purchase a separate PI Dongle for each Ion Chamber. When ordering separate PI Dongles, please share ion chamber information with RTI to preprogram to the dongle.

A small tool with big capabilities

The Module comes with the invasive Mako mAs Cable as standard, as well as supporting non-invasive mAs capabilities (via MAS-2 clamp probe) and Test Point Cables, for various purposes like mA or V measurement. Connected to the X-ray generator with no need of additional settings, it delivers the mA and mAs together with the corresponding waveform. The built-in digital rectifier handles single phase units with no need to worry about polarity.

Range: 0.1 mA – 2.0 A (±1 % or 0.01 mA)

Mako mAs Module is not sold separately.
