Injection Phantom

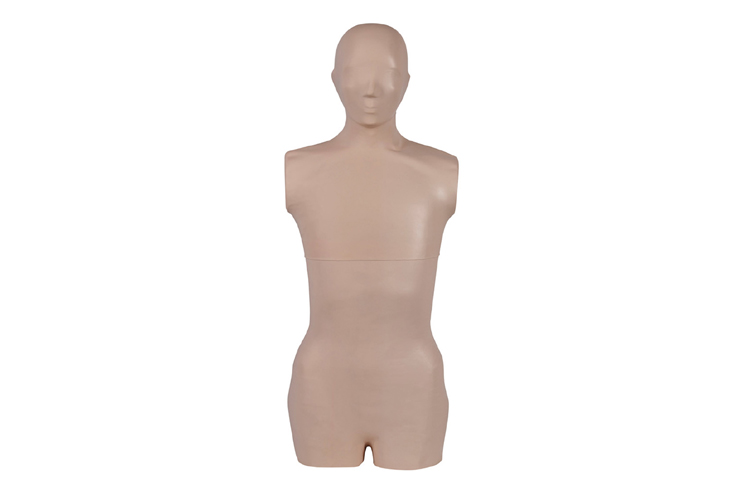

rsd-injection-phantom-front-view_750x500

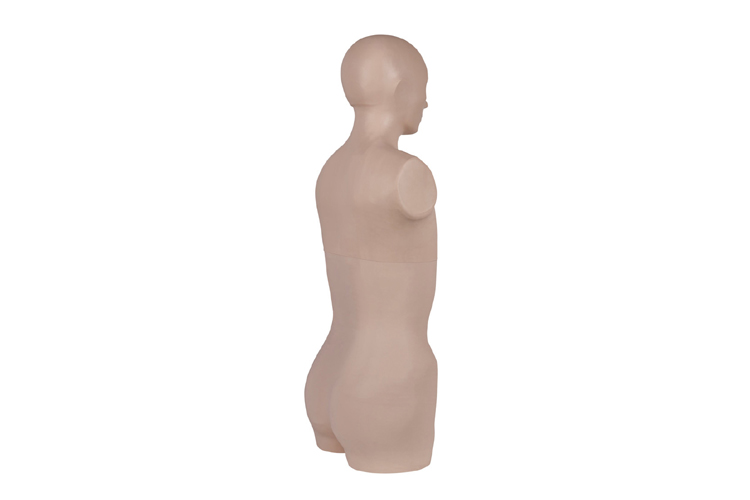

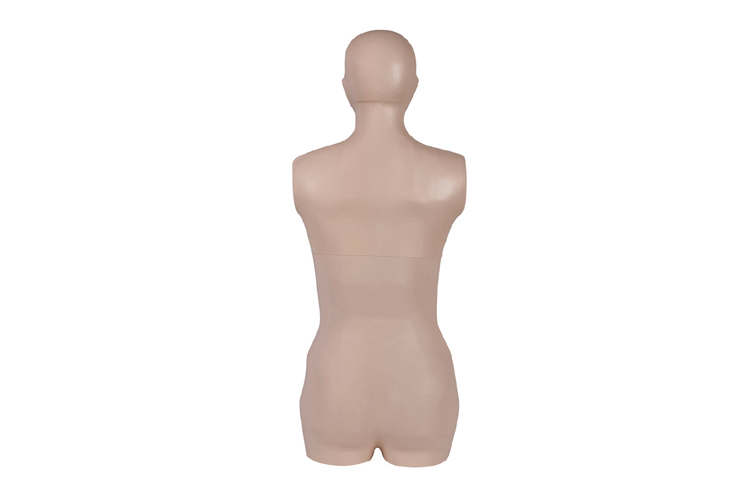

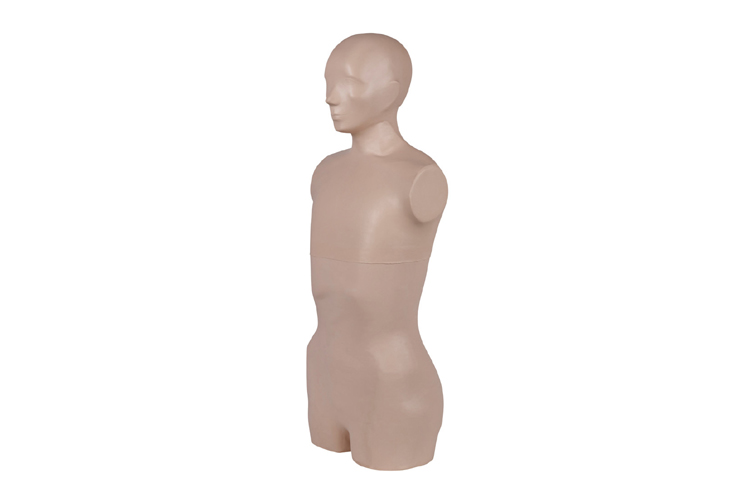

rsd-injection-phantom-front-view_750x500rsd-injection-phantom-front-side-view_750x500rsd-injection-phantom-back-side-view_750x500rsd-injection-phantom-back-view_750x500
  TEACHING & TRAINING AID FOR PROPER NEEDLE PLACEMENT & SKILL MAINTENANCE Instrumental for teaching, training, and maintaining skills Reviews fluoroscopy system Eliminates biohazards associated with cadavers The Injection Phantom helps one learn and hone skills for proper needle pla ...Read more



  • Description
  • Specifications



TEACHING & TRAINING AID FOR PROPER NEEDLE PLACEMENT & SKILL MAINTENANCE

  • Instrumental for teaching, training, and maintaining skills
  • Reviews fluoroscopy system
  • Eliminates biohazards associated with cadavers

The Injection Phantom helps one learn and hone skills for proper needle placement for a variety of interventional techniques. Fluoroscopic needle placement can be taught or practiced realistically without fear of biological contamination hazards associated with fresh or frozen cadavers.

Fluoroscopically, the look and feel of the anatomical landmarks is important and can be demonstrated with the use of the Injection Phantom. Needle placement for caudals, epidurals, selective nerve and root blocks, medial branch blocks, facet injections and sympathetic blocks can all be demonstrated. Practice RF needle-placement along with disc needle-placement plus injection techniques for shoulder, hip and symphysis pubis, all in the convenience and safety of your own laboratory or teaching facility. There is now no need to deal with local, state, and federal regulations regarding biohazards associated with cadavers.

It was not practicable to design the phantom with a capability of demonstrating realistic flow patterns associated with diagnostic dyes, so it is not designed for actual injections. However, the all-important fluoroscopic guidance and needle placement are realistic in the Injection Phantom.

Further simplifications are the elimination of skeletal articulations that permit joint or spinal motions and the elimination of rib numbers 2 to 9; the rigid flesh makes these superfluous. Positioning of the Injection Phantom as a single unit provides complete and realistic positioning capabilities.

The Injection Phantom has the capability for injections not only in the spine, but also at one shoulder, one hip, and at the pubis symphysis.

The skeletal structures of Injection Phantom are covered with a soft gel and a latex skin, supported by a hard, synthetic material.

The Injection Phantom has been tested to determine the probable effective life of injection sites; a gel/skin section was used for a trial and six hundred injections were made in a dime-sized area. There was no perceptible degradation of the latex skin or of the gel itself. Considering the far greater area available in the RSD Injection Phantom, it is unlikely that repairs or refurbishments will be needed for a very long time.

The gel-filled injectable parts of the Injection Phantom are completely encased in a latex skin. Many lattices are known allergens, but the latex skin is made of the same material that is used in the Take-Apart Pixy phantom. Hundreds of these phantoms are in use, but no user has ever complained of allergic reactions. The technicians, who have worked with this latex for years, have also never had such reactions. Allergic reactions are not expected to be a concern for the vast majority of users. The materials and design processes in Injection Phantom are made not only to simplify the overall process, but also to keep it as realistic as possible.



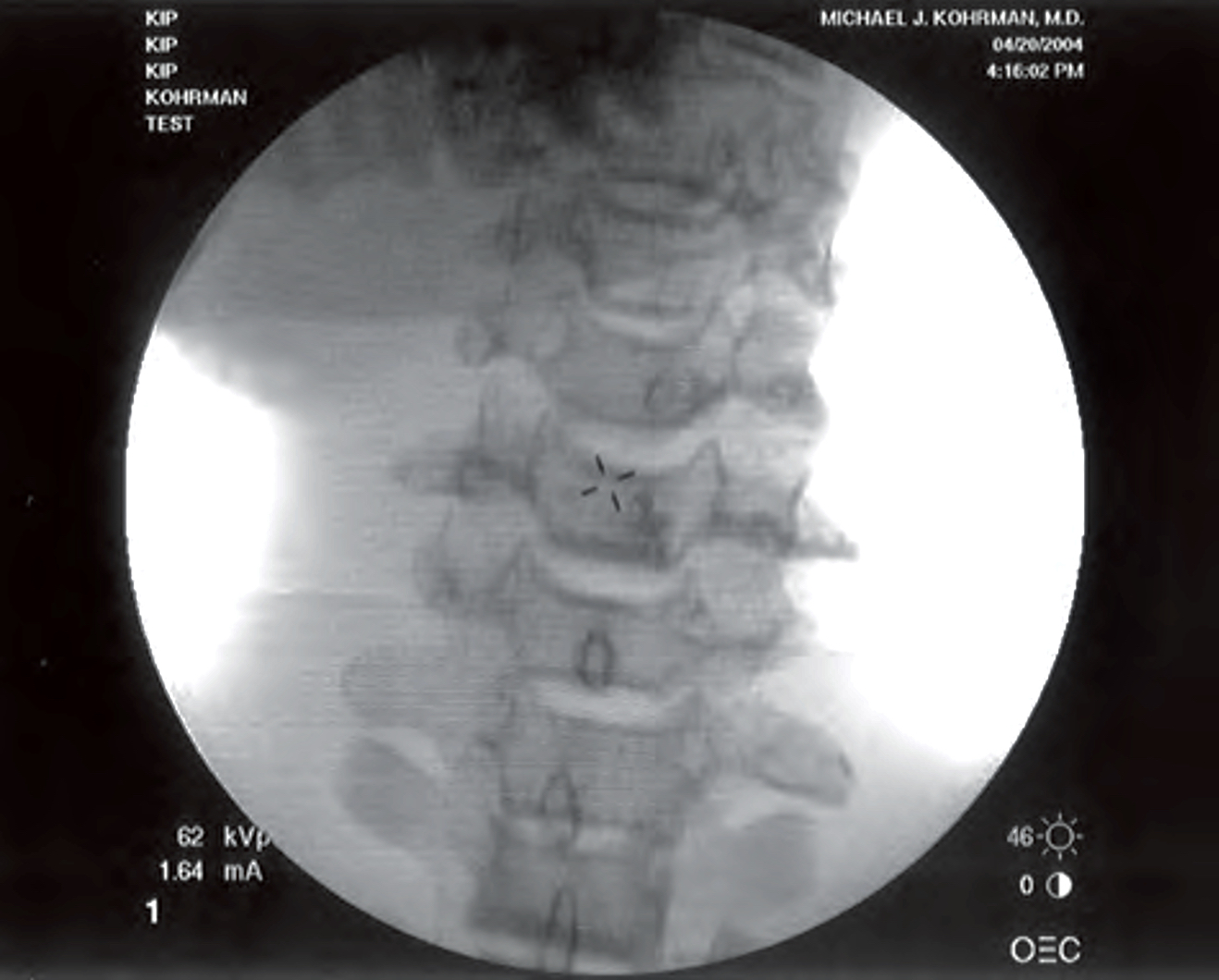

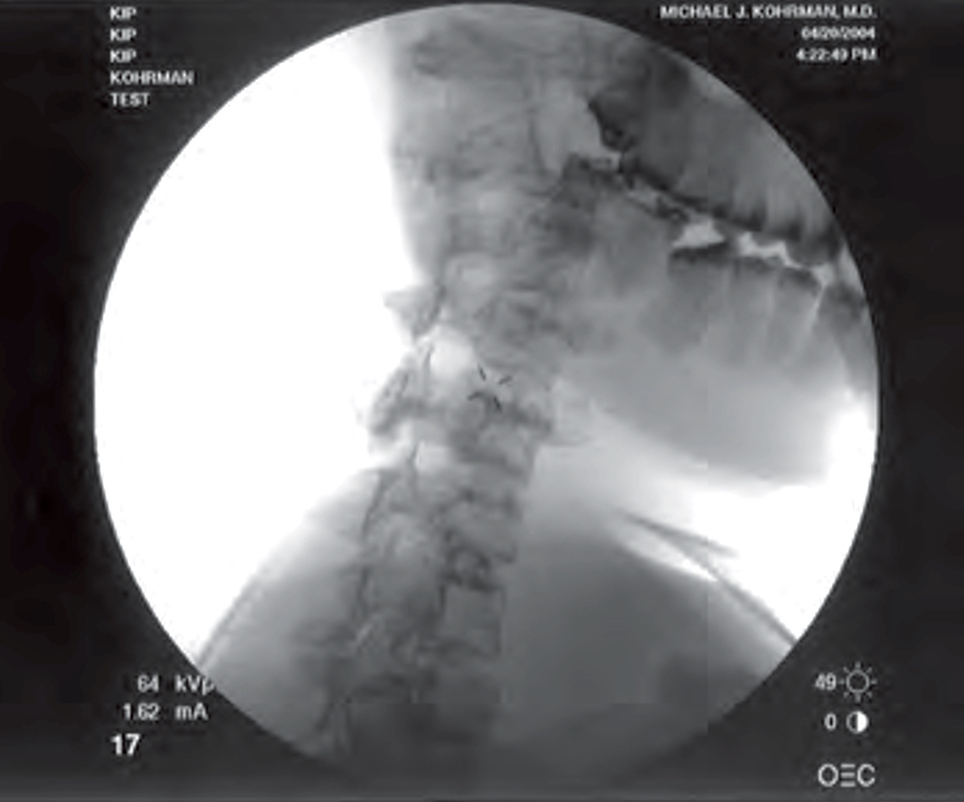

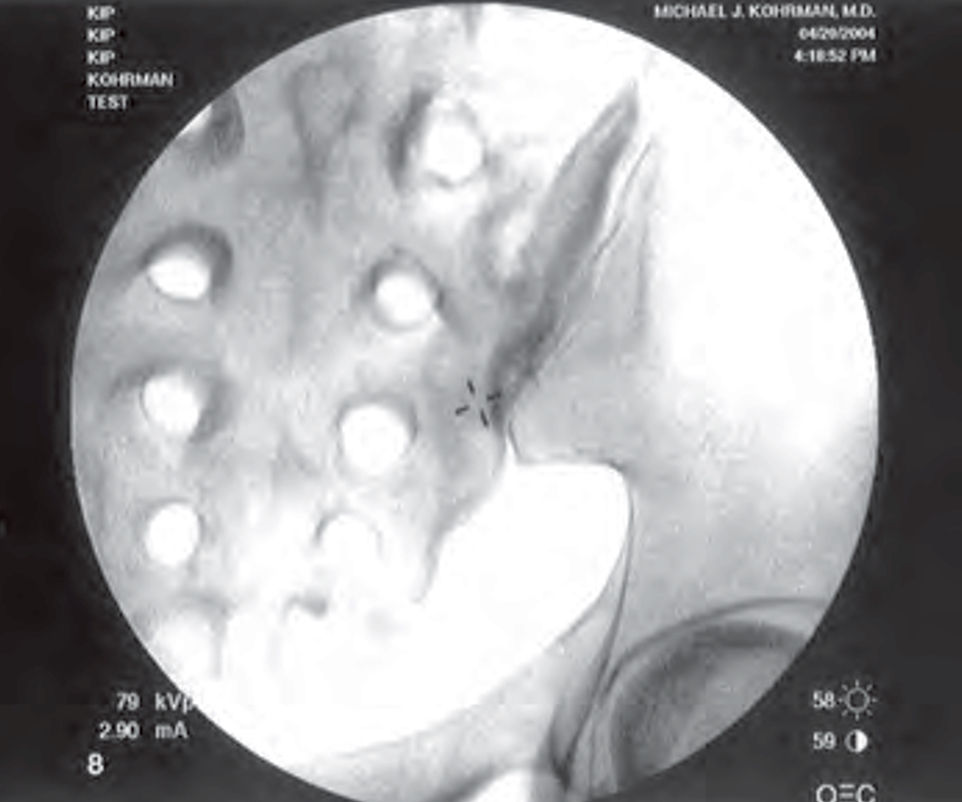

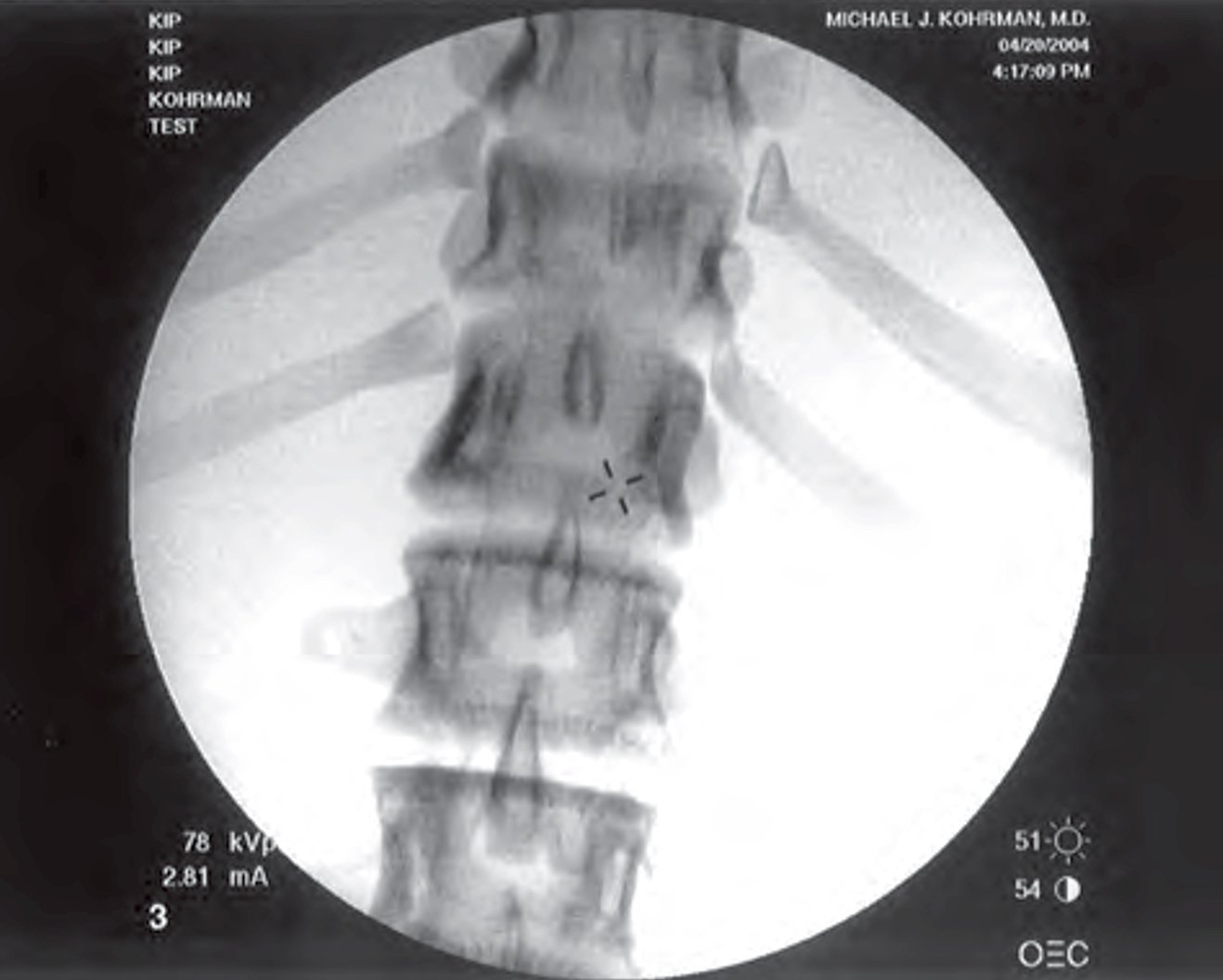

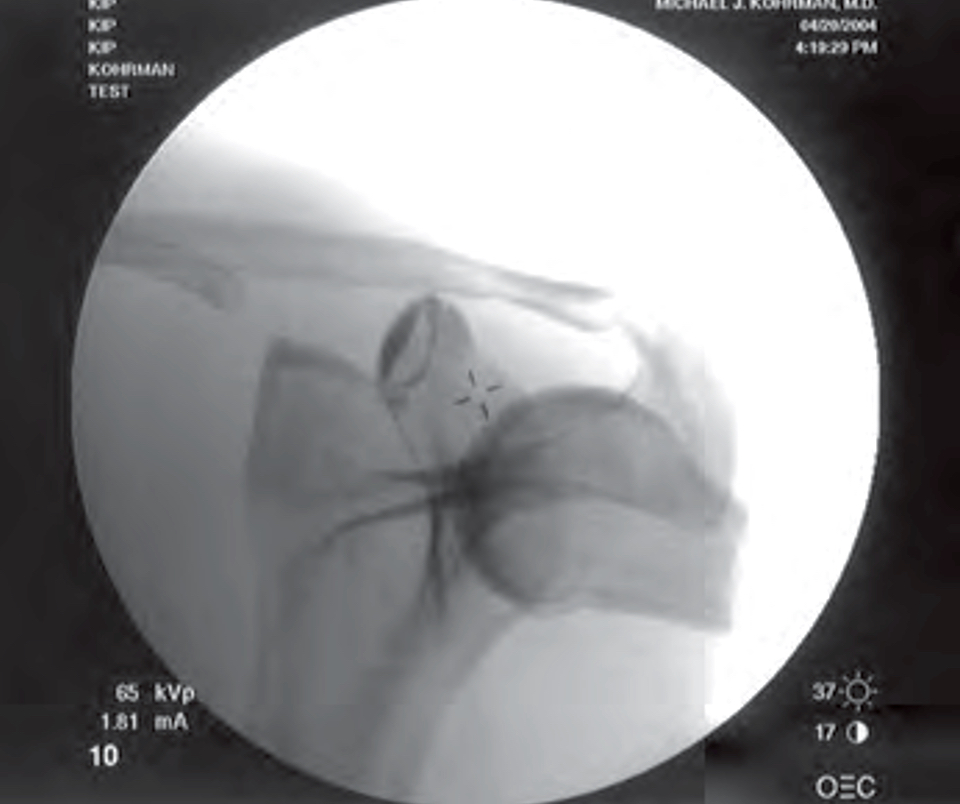

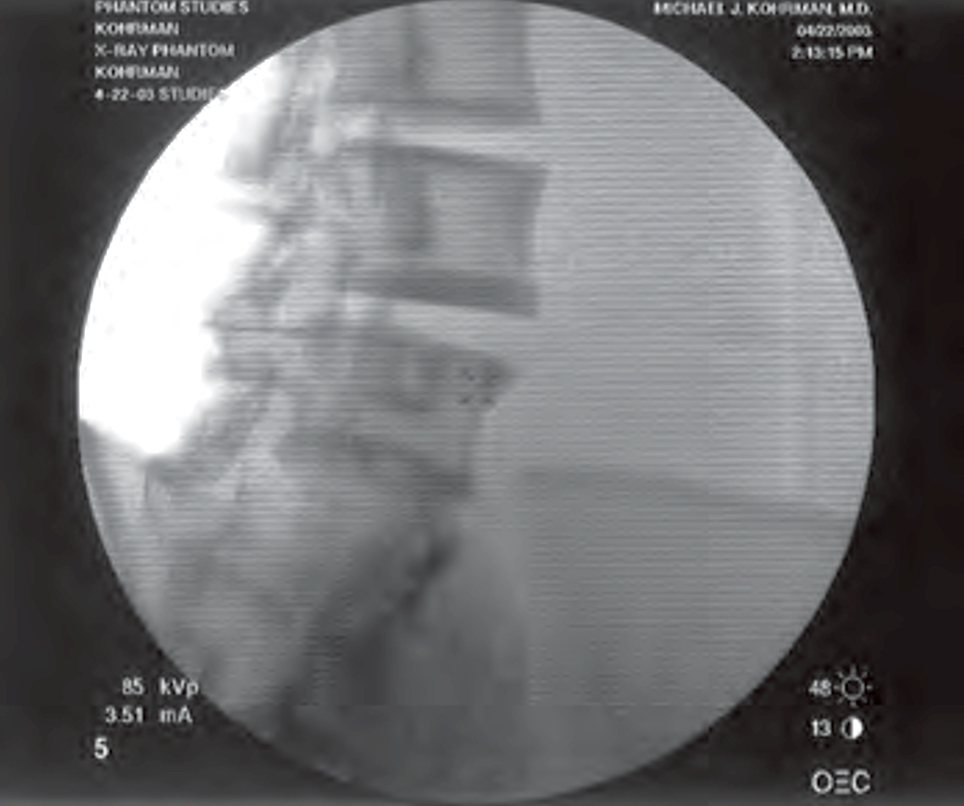

Clinical Images





SOFT TISSUE
Energy (MeV) Mean (HU) Calculated (M) μ (ICRU 44) % Difference Ratio
00.08 60.30 0.1948 0.1932 0.0080 0.9921
00.10 52.88 0.1797 0.1795  0.0015 0.9985
00.12 57.10 0.1717 0.1709 0.0044 0.9956
00.14 52.95 0.1623 0.1624 0.0007 1.0007
00.20 -- 0.1477 0.1439 0.0261 0.9746
00.30 -- 0.1245 0.1246 0.0004 1.0004
00.60 -- 0.0950 0.0941 0.0101 0.9900
00.80 -- 0.0825 0.0826 0.0013 1.0013
01.00 -- 0.0744 0.0743 0.0018 0.9982
02.00 -- 0.0520 0.0519 0.0018 0.9982
03.00 -- 0.0351 0.0357 0.0171 1.0174
06.00 -- 0.0288 0.0291 0.0088 1.0088
08.00 -- 0.0252 0.0255 0.0098 1.0099
10.00 -- 0.0229 0.0232 0.0149 1.0151
15.00 -- 0.0203 0.0203 0.0015 0.9985
20.00 -- 0.0189 0.0189 0.0017 1.0017

CORTICAL BONE
Energy (MeV) Mean (HU) Calculated (M) μ (ICRU 44) % Difference Ratio
00.08 1365 0.4345 0.4280 0.0151 0.9851
00.10 1048 0.3496 0.3562 0.0184 1.0188
00.12 0977 0.3211 0.3274 0.0191 1.0195
00.14 0902 0.2932 0.2986 0.0180 1.0184
00.20 -- 0.2511 0.2513 0.0009 1.0009
00.30 -- 0.2155 0.2137 0.0084 0.9916
00.60 -- 0.1596 0.1598 0.0011 1.0011
00.80 -- 0.1403 0.1402 0.0010 0.9990
01.00 -- 0.1274 0.1261 0.0106 0.9895
02.00 -- 0.0883 0.0885 0.0017 1.0017
03.00 -- 0.0611 0.0625 0.0229 1.0235
06.00 -- 0.0512 0.0525 0.0246 1.0253
08.00 -- 0.0468 0.0474 0.0120 1.0121
10.00 -- 0.0446 0.0444 0.0039 0.9962
15.00 -- 0.0410 0.0409 0.0016 0.9984
20.00 -- 0.0393 0.0397 0.0102 1.0103

TRABECULAR BONE (SPONGIOSA)
Energy (MeV) Mean (HU) Calculated (M) μ (ICRU 44) % Difference Ratio
00.08 551 0.2849 -- -- --
00.10 515 0.2586 -- -- --
00.12 439 0.2337 -- -- --
00.14 318 0.1541 -- -- --
