Breast Phantom

59-01_1_750x500
  Insertable mass and calcifications This phantom simulates a compressed breast. It is composed of four slabs that are held together by a magnetic mount. The phantom can be equipped with an insertable pattern to simulate microcalcifications. The central slabs can be replaced to simulate a ...Read more



  • Description
  • Specifications



Insertable mass and calcifications

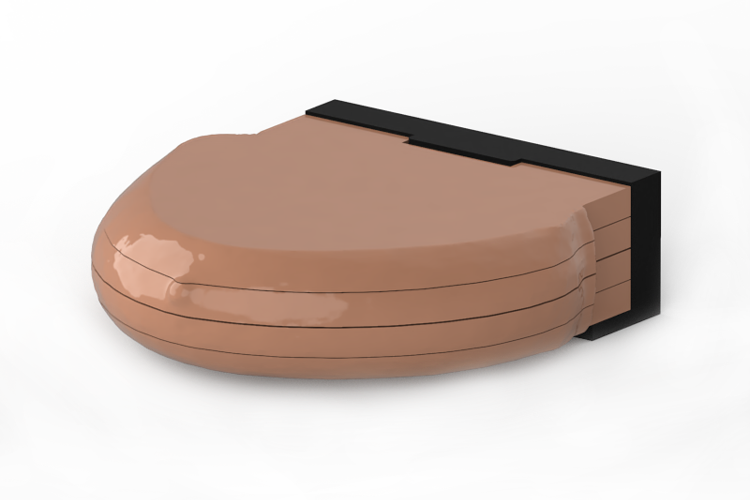

This phantom simulates a compressed breast. It is composed of four slabs that are held together by a magnetic mount.

The phantom can be equipped with an insertable pattern to simulate microcalcifications. The central slabs can be replaced to simulate a breast mass.

The phantom can be used in mammography and breast tomosynthesis to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes.

The phantom provides a detailed and realistic simulation of glandular and adipose tissue.



Diagnostic features

Realistic simulation of glandular and adipose tissue.



Insertable calcification pattern

  • Pattern thickness: 0.1 mm
  • Calcification diameter: 0.05 to 0.39 mm



Replacement slabs containing a spiculated mass

  • Mass integrated in 2 additional slabs for replacement of the 2 central slabs
  • Mass size: approx. 15 x 17 x 15 mm



Section shows phantom composition of glandular and adipose tissue Section shows phantom composition after insertion of tumor slabs





Specifications

  • Size: 152 x 134 x 36 mm
  • Weight: 590 g
  • Components: 4 slabs of 9 mm thickness
  • Positioning aid: Magnetic mount
  • Base material: Cellulose-polymer composite
