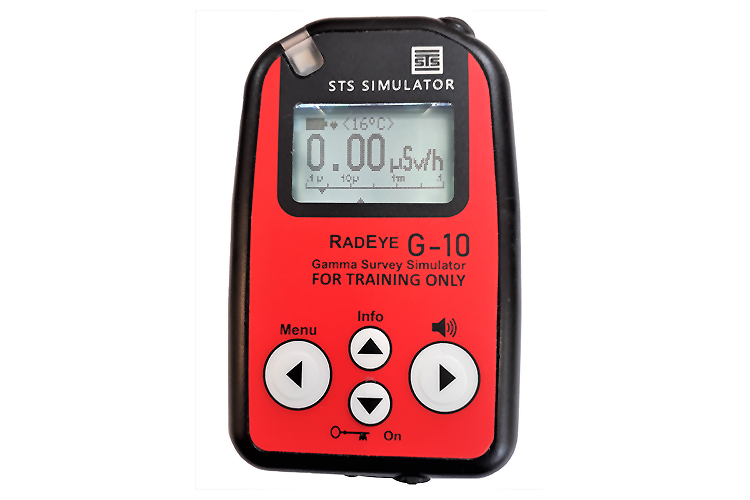

STS Safe-RadEye G-10

sts_radeye_g10_750x500
  STS are pleased to announce that the Thermo RadEye(tm) G-10 and GF-10 Safe-Series simulators are now available as part of the Safe-Series simulation range. These all new simulators use a real unmodified Thermo RadEye with the GM tube removed and the STS simulation circuit added. The STS circuit ...Read more



  • Description
  • Specifications



STS are pleased to announce that the Thermo RadEye(tm) G-10 and GF-10 Safe-Series simulators are now available as part of the Safe-Series simulation range.

These all new simulators use a real unmodified Thermo RadEye with the GM tube removed and the STS simulation circuit added. The STS circuit generates pulses from the radio signal received from the simulated source and send these pulses directly to the RadEye circuit outputing as a standard reading in Sv's.

STS have introduced both G-10 and the extended range GF-10 models with the first batch already produced and dispatched to our Dutch distributors Stratec Sevices BV who worked very closely with STS on the development of this unit and provided the RadEye units for modification.

This first batch are destined for the Dutch Fire Service and will kit out 11 of their training teams with the GF-10 variant bringing a far more realistic edge to their training scenarios.

The STS RadEye Simulators maintain their full integrity of menus and functions and are still customiseable by the user in terms of alarm settings, screen output etc.

In addition to the RadEyes Startec also requested that STS produce a remote control version of the Safe-Series Variable MiniSource. So we did! The new source has a small keyfob with 8 setting to choose from and can be programmed before dispatch to suit a particular users requirements. In this case the levels selected were from 1.0 uSv up to 10 mSv at 1m from the source.

The keyfob has a range of over 100m so changes to a scenario may be made on the fly and without interruption to the trainees participating.





Dimensions 96 x 61 x 31 mm
Weight 0.16 kg
Construction Moulded Plastic Case
Controls Single piece membrane keypad 4 function keys  Gloved operable buttons
Control Keys On/Off info (scroll)  Audio (scroll)
Display Type Digital 30 x 20mm LCD Black & White
Backlight  Yes On/off from keypad
Battery 2 x AAA 1.5V cells THIS UNIT CANNOT BE MAINS RECHARGED Battery life 7 hrs+
Detector STS radio frequency Detector
Measurement range 0.5uSv to 100mSv display range on instrument
Functionality All RadEye functions are retained in the simulator, this is a real RadEye with an additional STS circuit built in.
Background Level set at production not user changeable
Operating & Storage Temperature Operating temp 0° C to +40° C  Storage temp -10° C to +40° C
Warm up time 10 seconds from switch on to ready Network OK icon displayed
Available Sources Safe-MiniSource, Safe-MiniSource Variable, Safe-Pocket Source Available in a range of activity levels
