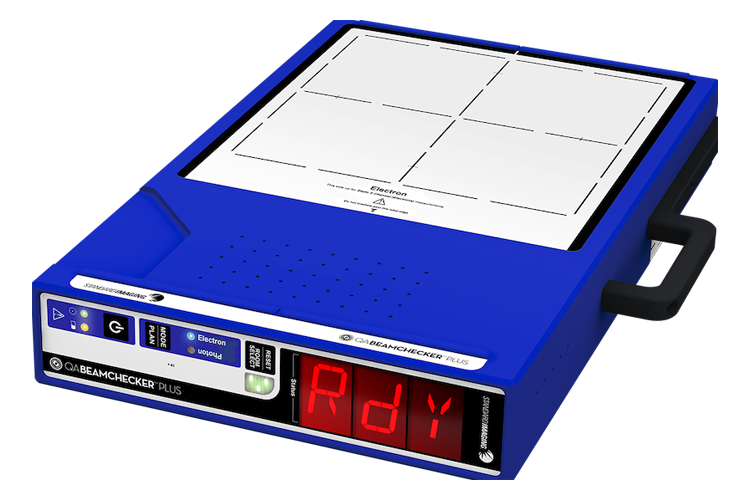

QA BeamChecker™ Plus

qabc_750x500
  Reliable, Uncomplicated Daily QA Easier daily QA with simple, fast, and reliable measurements using automatic energy detection. Perform routine daily QA measurements for traditional linear accelerators and rotational VMAT systems including those from Varian, Elekta, and Accuray.    Software-f ...Read more



  • Description
  • Specifications



Reliable, Uncomplicated Daily QA

Easier daily QA with simple, fast, and reliable measurements using automatic energy detection.

Perform routine daily QA measurements for traditional linear accelerators and rotational VMAT systems including those from Varian, Elekta, and Accuray.



 Software-free QA

Standard Imaging's expertise in ion chambers, phantoms and electrometers is the foundation for the innovative QA BeamChecker Plus. Integral build up and automatic energy detection allows the QA BeamChecker Plus to operate independently from its QA management software without the use of wires or cables. Radiation Therapists can deliver beam energies in any order, allowing for fast, intuitive morning QA in up to 9 treatment rooms.



Fast and Easy

Reduce unnecessary trips to the treatment room. Adaptable technology with enhanced features including advanced modules.



High Dose Rate Compatibility

Rotational and dynamic QA with dose rates up to 2400 MU/min.



Intuitive Communication Software

A straight out of the box solution with powerful reporting and easy to use communication software.





8 Vented Ionization Chambers, Fully Guarded

  • One center detector // Four quadrant detectors (7.5 cm from center) // Three energy identification chambers
  • Chamber: Volume 0.6 cm3
  • Parallel Plate Separation: 4.0 mm
  • Collection Electrode: 1.39 cm diameter
  • Inherent Water-Equivalent Buildup: PHOTONS: 3.5 cm // ELECTRONS 1.5 cm
  • Supported Energies: PHOTONS 60Co to 25 MV // ELECTRONS 6 MeV to 25 MeV
  • Multiple Vault Capability: Up to 9 rooms, any combination of linear accelerator or rotational systems
  • Temperature and Pressure Measurement: Precision sensor on board, automatic compensation



QA BeamChecker Plus Dimensions

  • Height: 6.15 cm
  • Width: 30.86 cm
  • Length: 40.64 cm
  • Weight: 5.0 kg



Power/Data Cradle Dimensions

  • Height: 7.16 cm
  • Width: 10.16 cm
  • Length: 29.21 cm
  • Weight: 1.8 kg



Features

  • Light Field Alignment: 20 cm x 20 cm alignment grid for easy setup
  • TomoTherapy Alignment: Three 2 mm embedded lead BBs, top, rear, side alignment marks
  • Real Time Clock: Date and time stamp for all measurements
  • Internal Memory: Store 512 data points before transfer required
  • Power/Data Cradle: Two 9 pin serial cables provided, 7.6 m (25 ft) and 33 m (100 ft)
  • Battery: 1.3 Ah SLA, approximately 4 hours continuous use, user replaceable
  • Charger Input: 90 - 240 VAC, 50-60 hz, IEC 60601-1 approved wall mounted power supply
  • Peripherals: CD-ROM Drive, One available serial port



Options

  • Gantry Mount (REF 70500)
  • Additional Power/Data Cradle (REF 70502)
  • Serial to USB adapter (REF 70503)
  • Precision TomoTherapy Leveling Platform (REF 70505)
  • Bluetooth Adapter Kit (REF 70504)



Software/Computer Requirements

  • Operating System: Windows® 10 Professional, 64 bit recommended
  • Processor: Dual Core, 1 GHz; Quad Core, 2 GHz Recommended
  • Memory: 32-bit OS: 2 GB, 4 GB Recommended 64-bit OS: 4 GB, 8 GB Recommended
  • Hard Drive: 32 GB or greater, 1 GB free space for initial software setup. 25% free space recommended.
  • Screen Resolution: 1024 x 768 or greater // Optical Drive — Compact Disc (CD) or Digital Versatile Disc (DVD)
  • Connectivity: 9 pin RS-232 serial port and IPv4 LAN, 100 Mbit/s or greater
