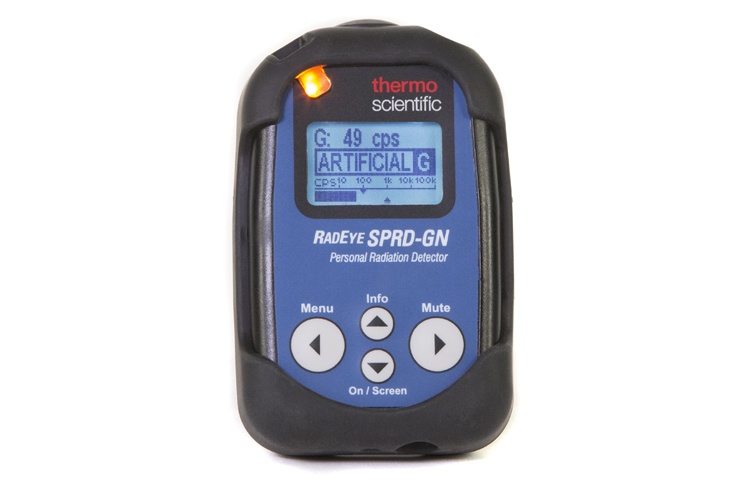

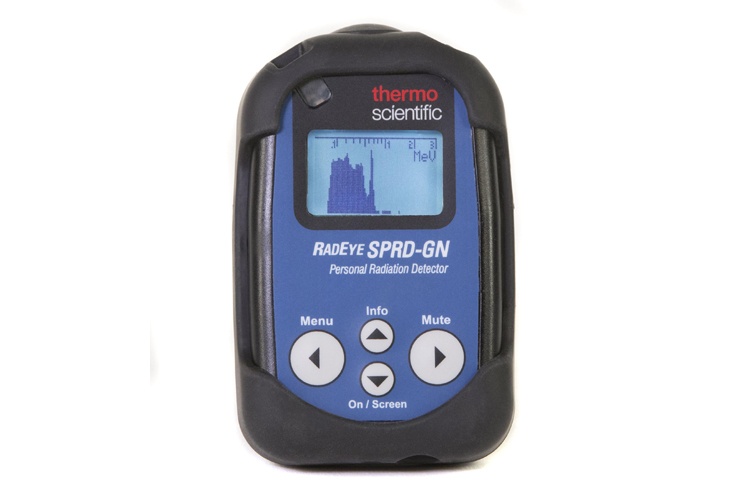

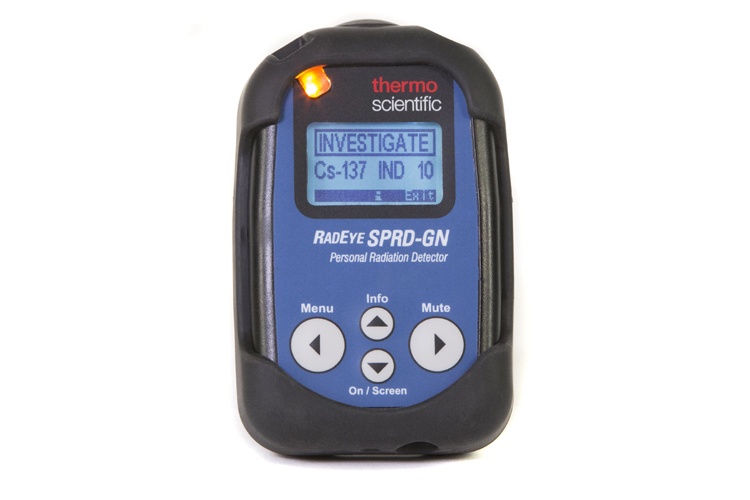

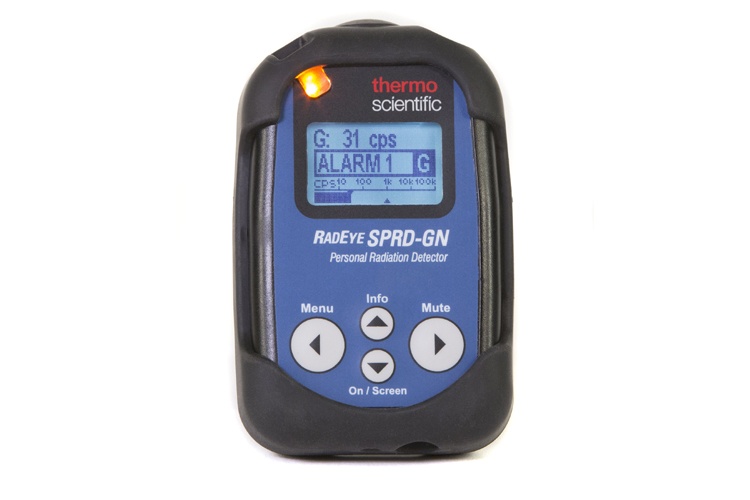

RadEye™ Spectroscopic Radiation Detector

radeye-sprd-gn_1_750x500
radeye-sprd-gn_1_750x500radeye-sprd-gn_2_750x500radeye-sprd-gn_3_750x500radeye-sprd-gn_4_750x500radeye-sprd-gn_5_750x500
  Get RIID capability in the palm of your hand. The Thermo Scientific™ RadEye™ SPRD-GN Personal Radiation Detector is the first pager-sized PRD that significantly exceeds the original ANSI N42-48 2008 standards for neutron alarms. With outstanding neutron performance and reliable gamma IDs, the Rad ...Read more



  • Description
  • Specifications



Get RIID capability in the palm of your hand. The Thermo Scientific™ RadEye™ SPRD-GN Personal Radiation Detector is the first pager-sized PRD that significantly exceeds the original ANSI N42-48 2008 standards for neutron alarms. With outstanding neutron performance and reliable gamma IDs, the RadEye SPRD-GN Personal Radiation Detector may be the only radiation detection tool you will need.

  • Unprecedented size for gamma detection, gamma ID, and neutron detection
  • Single detector enables less complex design, superior field reliability, and reduced size & weight
  • Neutron alarms in <2 seconds and low false alarms exceeding ANSI specifications as well as lithium and He-3 based units
  • Patent pending source-less routines for ID stabilization and outstanding neutron sensitivity
  • Advanced NBR identifies artificial radiation while minimizing false alarms





Background Measurement NBR (Natural Background Rejection): Advanced with 6 Energy Windows
Certifications/Compliance IP65
Description RadEye SPRD-GN Personal Radiation Detector, includes software for configuring RadEye and Spectra download
Energy Range 60 keV to 3 MeV (+/- 30%)
Battery Type 2 AAA
Measurement Range Dose Rate Range: 1 μR/h to 25 mR/h (10 nSv/h to 250 μSv/h)
Communications Wireless communications BT4 optional
Response Time Typical ID-time @ 1µSv/h (100µR/h) ∼5 min
Detector Type CLYC (Cs2LiYCl6)
Weight (Metric) 0.175 kg (including batteries and rubber sleeve)
Alarm Types Neutron Alarm Response: ANSI N42.48-2008: Yes ( 2 s)
Drop Distance to Concrete 1.5 m
Radiation Type Gamma, Neutron
Sensitivity (cps per µSv/h (662 keV)) 110
Battery Life ∼120 hr.
Weight (English) 0.385 lb. (including batteries and rubber sleeve)
Unit Size Each
