Pro-Alpha

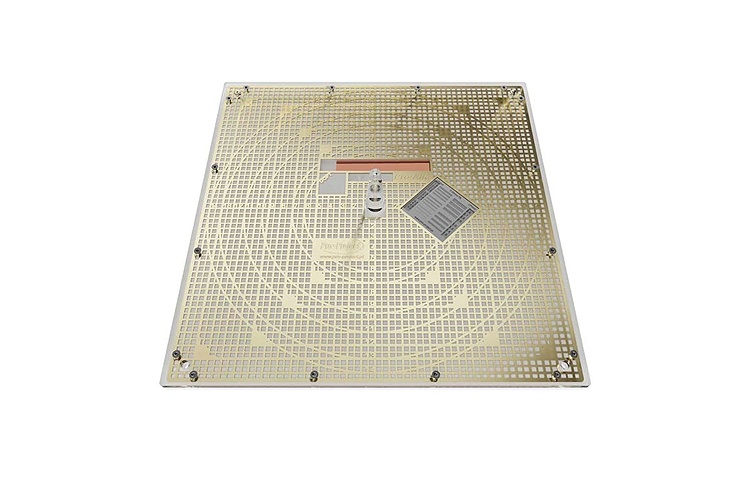

pro-alfa_750x500
  The Pro-Alpha phantom can be used for carrying out acceptance and constancy tests of conventional radiography X-Ray units. With the Pro-Alpha phantom, you can do the following tests: Collimation / beam alignment Position and size of the effective radiation field Dynamic range Spatial resol ...Read more



  • Description
  • Specifications



The Pro-Alpha phantom can be used for carrying out acceptance and constancy tests of conventional radiography X-Ray units.

With the Pro-Alpha phantom, you can do the following tests:

  • Collimation / beam alignment
  • Position and size of the effective radiation field
  • Dynamic range
  • Spatial resolution
  • Contrast resolution
  • Image quality (distortion in fluoroscopy)



Technical data:

  • Dimensions: 300 x 300 x 10 mm
  • Brass mesh pattern (5 mm scale) embedded in PMMA
  • 7-step copper wedge
  • 4 low contrast elements
  • Markings to determine the size and position of the effective radiation field
  • Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
  • Cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°





Product features:

  • Complies with:
    • IEC 61223-3-1
    • DIN 6868/3 and DIN 6868/4
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
