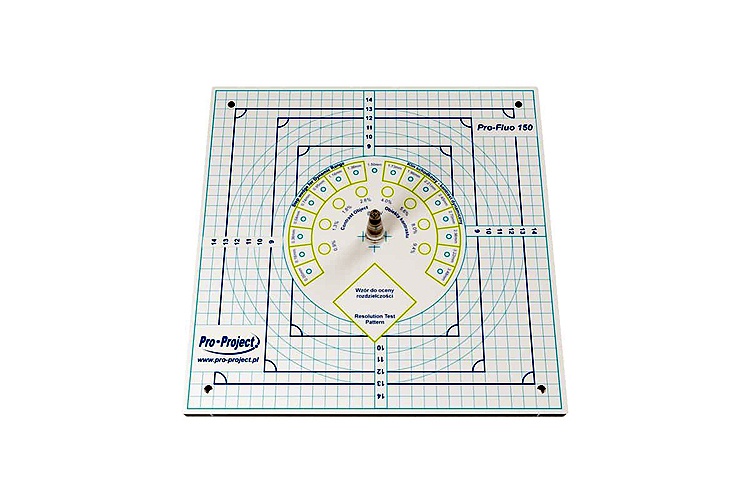

Pro-Fluo 150

pro-fluo_150_750x500
  The Pro-Fluo 150 phantom is dedicated for acceptance and constancy tests of radiography and fluoroscopy equipment according to the new DIN 6868-150 standard. It can be used to measure: Collimation/beam alignment Position and size of the effective radiation field Dynamic range Spatial resol ...Read more



  • Description
  • Specifications



The Pro-Fluo 150 phantom is dedicated for acceptance and constancy tests of radiography and fluoroscopy equipment according to the new DIN 6868-150 standard.

It can be used to measure:

  • Collimation/beam alignment
  • Position and size of the effective radiation field
  • Dynamic range
  • Spatial resolution
  • Contrast resolution
  • Homogeneity
  • Beam quality



Technical data:

  • Dimensions: 310 x 310 x 18,5 mm
  • 1.5 mm thick copper plate with mesh pattern embedded in PMMA
  • Total PMMA thickness 17 mm
  • 17-step copper wedge (thickness 0.0 mm to 3.48 mm) with additional low contrast details (4mm diameter)
  • 8 low contrast elements (10 mm diameter)
  • Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
  • Markings to determine the size and position of the effective radiation field
  • Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°





Product features:

  • Complies with:
    • IEC 61223-3-1
    • DIN 6868-150
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
